Unit · DUMMY
HG-SCHWENKTEIL *E*R909070904
Hydraulic unit Bosch Rexroth, type code HG-SCHWENKTEIL*E*, material number R909070904.
- Number
- R909070904
- Type code
- HG-SCHWENKTEIL *E*
- Group
- DUMMY
- Edition
- 03/2020

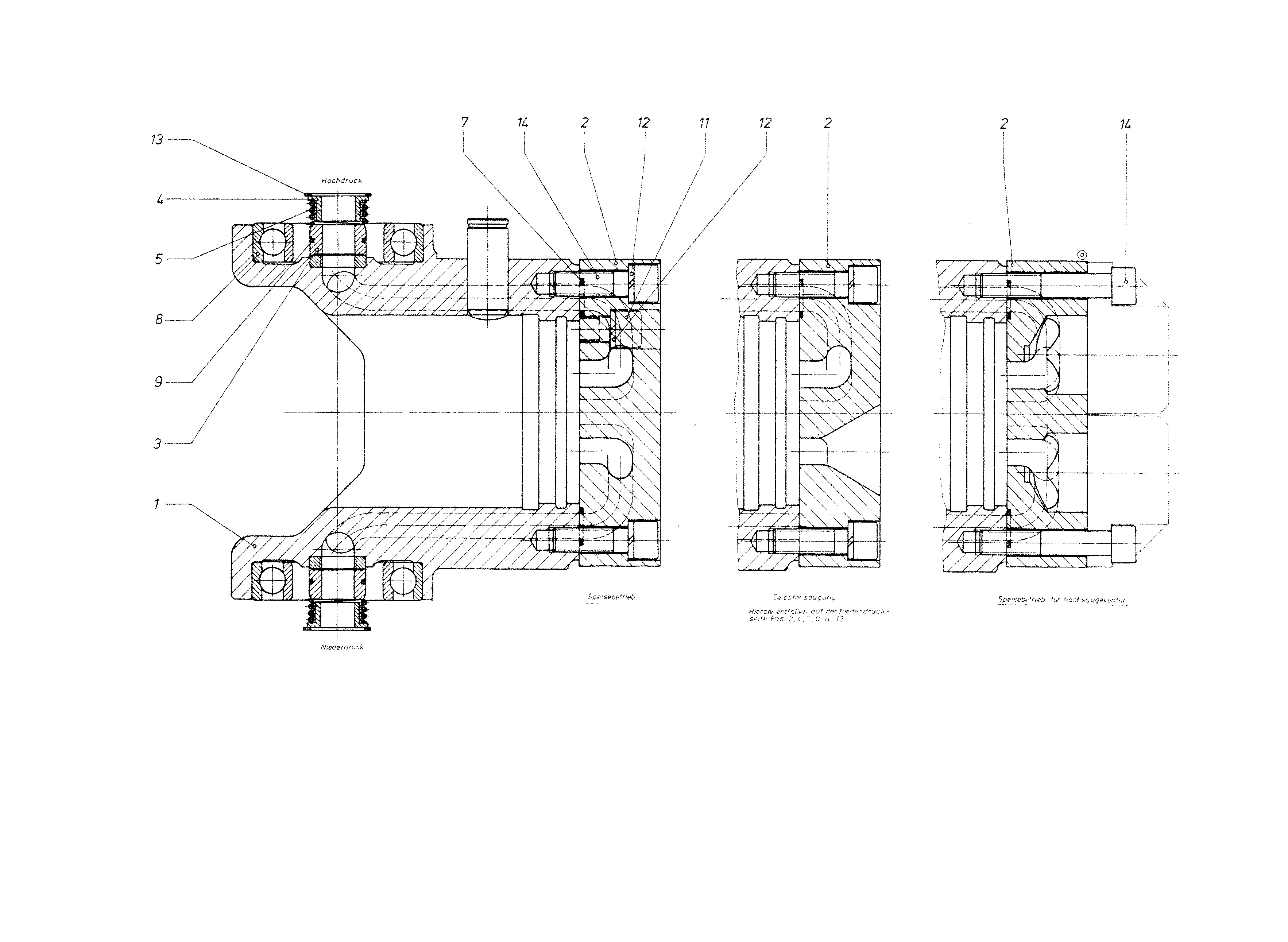

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909064373 | SWIVEL HOUSING Assembly parts list →L | 1 | ||
| 2 | R909062545 | COVER PLATE | 1 | |
| 3 | R909063268 | SEAL BUSHINGD | 1 | |
| 4 | R909063269 | SPRING BUSH | 1 | |
| 5 | R909064099 | COMPRESSION SPRING | 1 | |
| 7 | R909006243 | TEFLON SEAL RINGD | 2 | |
| 8 | R909085464 | DEEP-GROOVE BALL BEARING | 2 | |
| 9 | R902602840 | STEEL SEALING RINGD | 1 | |
| 11 | R909083087 | SOCKET HEAD CAP SCREW | 8 | |
| R909083252 | SPRING LOCK WASHER | 10 | ||
| R909083390 | RETAINING RING | 1 | ||
| 14 | R909083092 | SOCKET HEAD CAP SCREW | 2 |
