Unit · DUMMY
LEISTUNGSREGLER40640.*AL*R909070905

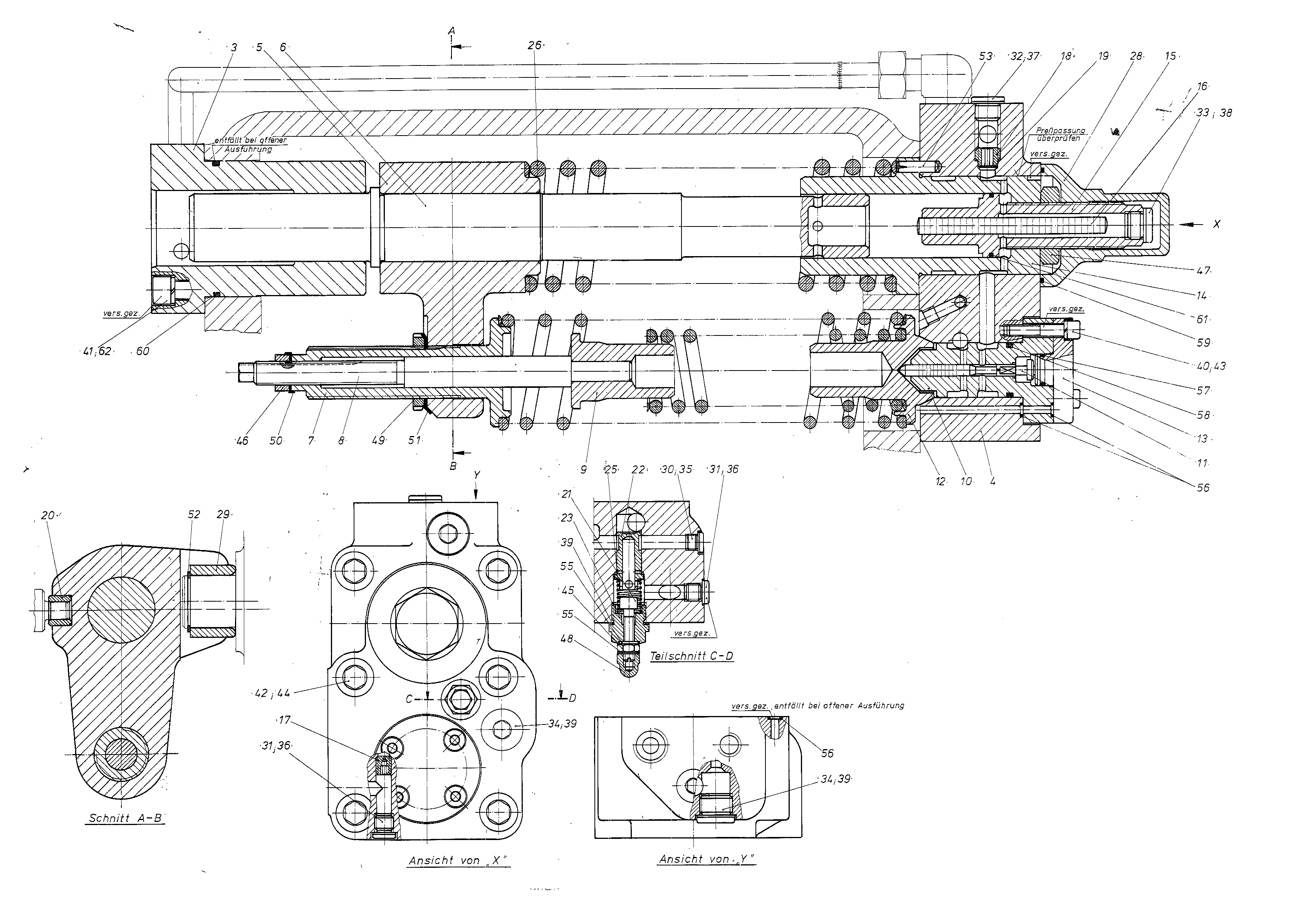

Hydraulic unit Bosch Rexroth, type code LEISTUNGSREGLER40640.*AL*, material number R909070905.
- Number
- R909070905
- Type code
- LEISTUNGSREGLER40640.*AL*
- Group
- DUMMY
- Edition
- 03/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909063394 | BEARING FLANGE | 1 | ||
| R909067736 | BEARING HOUSING | 1 | ||
| R909063387 | SWIVEL ELEMENT | 1 | ||
| R909063396 | REGULATOR PISTON | 1 | ||
| R909063233 | SPRING SLEEV | 1 | ||
| R909063234 | SPINDLE | 1 | ||
| R909063235 | SPRING DISK | 1 | ||
| R909067737 | CONTROL BUSH | 1 | ||
| R909063237 | CONTROL PISTON | 1 | ||
| R909067738 | SPRING DISK | 1 | ||
| R909063239 | COVER | 1 | ||
| R909063240 | BUSHING | 1 | ||
| R909063397 | STOP SLEEVE | 1 | ||
| R909063398 | PISTON | 1 | ||
| R909063399 | THROTTLE SCREW | 1 | ||
| R909058116 | STRAINING SCREW | 1 | ||
| R909058117 | SIEVE PLATE | 1 | ||
| R909058118 | PAD | 1 | ||
| R909063244 | SOCKET HEAD CAP SCREW | 1 | ||
| R909063400 | PISTON | 1 | ||
| R909063246 | SCREW PLUG | 1 | ||
| R909063248 | COMPRESSION SPRING | 1 | ||
| R909063401 | COMPRESSION SPRING | 1 | ||
| R909063251 | SLEEVE | 1 | ||
| R909008021 | DRILL BUSHING | 1 | ||
| R909083218 | SCREW PLUG | 1 | ||
| R909083219 | SCREW PLUG | 3 | ||
| R909083231 | SCREW PLUG | 1 | ||
| R909083223 | SCREW PLUG | 1 | ||
| R909083225 | SCREW PLUG | 2 | ||
| R909152725 | SEAL RINGD | 1 | ||
| R909152726 | SEAL RINGD | 3 | ||
| R909152730 | SEAL RINGD | 1 | ||
| R909152731 | SEAL RINGD | 1 | ||
| R909152734 | SEAL RINGD | 3 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083091 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083250 | SPRING LOCK WASHER | 4 | ||
| R909083254 | SPRING LOCK WASHER | 6 | ||
| R909083612 | HEXAGON NUT | 1 | ||
| R909157477 | HEXAGON NUT | 1 | ||
| R909156422 | HEXAGON NUT | 1 | ||
| R909086182 | CAP NUT | 1 | ||
| R909083437 | SLOTTED ROUND NUT | 1 | ||
| R909083472 | TAB WASHER | 1 | ||
| R909083452 | TAB WASHER | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| R909084291 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909084303 | SEAL RINGD | 2 | ||
| R909086380 | O-RINGD | 3 | ||
| R909083757 | O-RINGD | 1 | ||
| R909083803 | O-RINGD | 1 | ||
| R909086219 | O-RINGD | 1 | ||
| R909083822 | O-RINGD | 1 | ||
| R909087955 | R-RINGD | 1 | ||
| R909083252 | SPRING LOCK WASHER | 4 |
