Unit · AXIAL-PISTON PUMP
A7V78DR2.0LZGMF-SR909078410
Axial piston pump Bosch Rexroth series A7V, type code A7V78DR2.0LZGMF-S, material number R909078410.
- Number
- R909078410
- Type code
- A7V78DR2.0LZGMF-S
- Group
- A7V 78
- Edition
- 06/2020

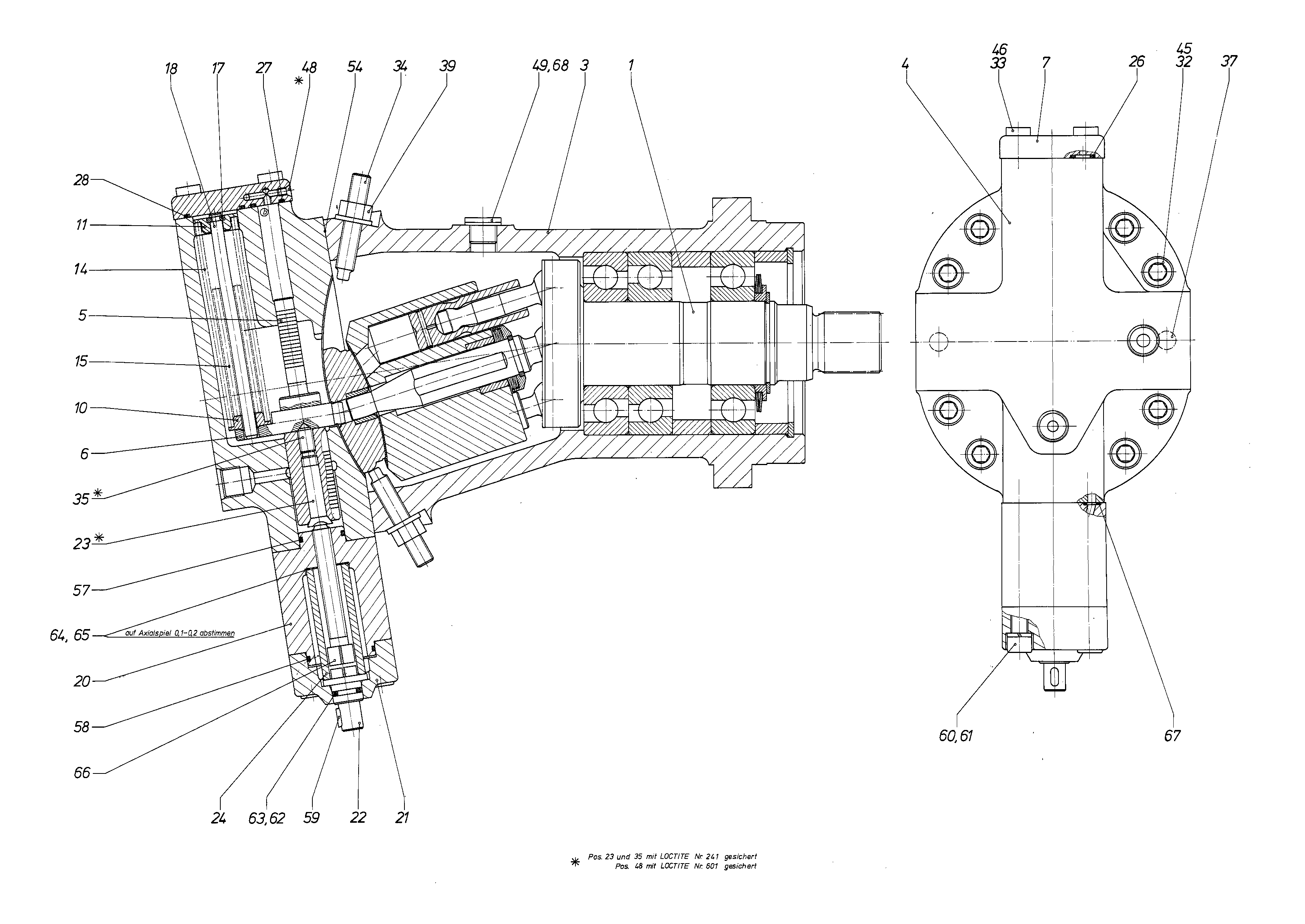

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909078471 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909081842 | HOUSING | 1 | ||
| R909078098 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R909409966 | POSITIONING PISTON | 1 | ||
| R909073465 | POSITIONING STUD | 1 | ||
| R909077898 | COVER | 1 | ||
| R909073469 | SPRING DISK | 1 | ||
| R909073653 | SPRING DISK | 1 | ||
| R909073840 | COMPRESSION SPRING | 1 | ||
| R909078972 | COMPRESSION SPRING | 1 | ||
| R909073652 | RING | 1 | ||
| R909079056 | GUIDE ROD | 1 | ||
| R909077984 | HOUSING | 1 | ||
| R909077981 | COVER | 1 | ||
| R909077982 | CARRIER | 1 | ||
| R902011628 | STOP PIN | 1 | ||
| R909077983 | GUIDE BUSHING | 1 | ||
| R909086765 | O-RINGD | 2 | ||
| R909087938 | O-RINGD | 1 | ||
| R909831230 | O-RINGD | 1 | ||
| R909154078 | SOCKET HEAD CAP SCREW | 8 | ||
| R909154077 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085976 | SETSCREW | 2 | ||
| R909407585 | SETSCREW | 1 | ||
| R909409591 | SETSCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909154085 | SEALING NUTD | 2 | ||
| R909154081 | SPRING LOCK WASHER | 8 | ||
| R909154080 | SPRING LOCK WASHER | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154052 | SCREW PLUG | 1 | ||
| R902011879 | SEALD | 1 | ||
| R909830919 | O-RINGD | 1 | ||
| R909152377 | O-RINGD | 1 | ||
| R909154082 | PARALLEL KEY | 1 | ||
| R909154087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154080 | SPRING LOCK WASHER | 4 | ||
| R909154048 | PISTON SEALD | 1 | ||
| R909086765 | O-RINGD | 1 | ||
| R909153629 | SHIM RING | 1 | ||
| R909086361 | SHIM RING | 1 | ||
| R909078525 | SQUARE-HEAD BOLT | 1 | ||
| R909085577 | O-RINGD | 1 | ||
| R909152731 | SEAL RINGD | 1 |
