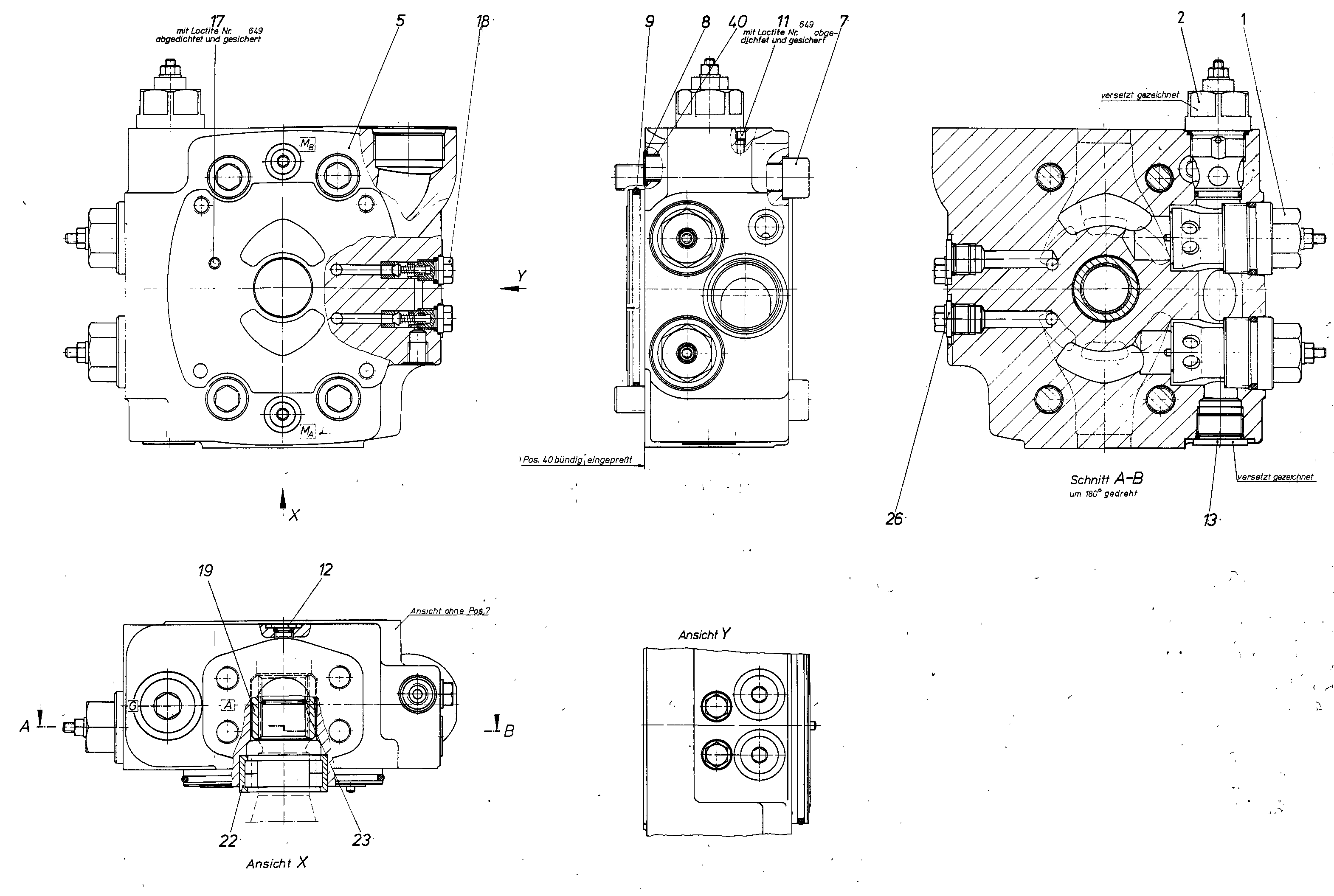

Unit · CONNECTION PLATE
CONNECTION PLATE M.VENTILEN 23125.R909405576
Connection plate Bosch Rexroth, type code CONNECTIONPLATEM.VENTILEN23125., material number R909405576.
- Number
- R909405576
- Type code
- CONNECTION PLATE M.VENTILEN 23125.
- Group
- CONNECTION PLATE
- Edition
- 09/2018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909408590 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909427263 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909405570 | CONNECTION PLATE | 1 | ||
| R909083145 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157085 | QUAD RINGD | 2 | ||
| R909083828 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909078295 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909079500 | NON-RETURN VALVE | 2 | ||
| R909445051 | COUPLING HUB | 1 | ||
| R909156113 | CYL. ROLLER BEARING | 1 | ||
| R909153971 | SNAP RING | 1 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909830411 | SLOTTED SPRING PIN | 1 |
