Unit · AXIAL-PISTON PUMP
A4V56DA1.0R0O1B1OR909410051

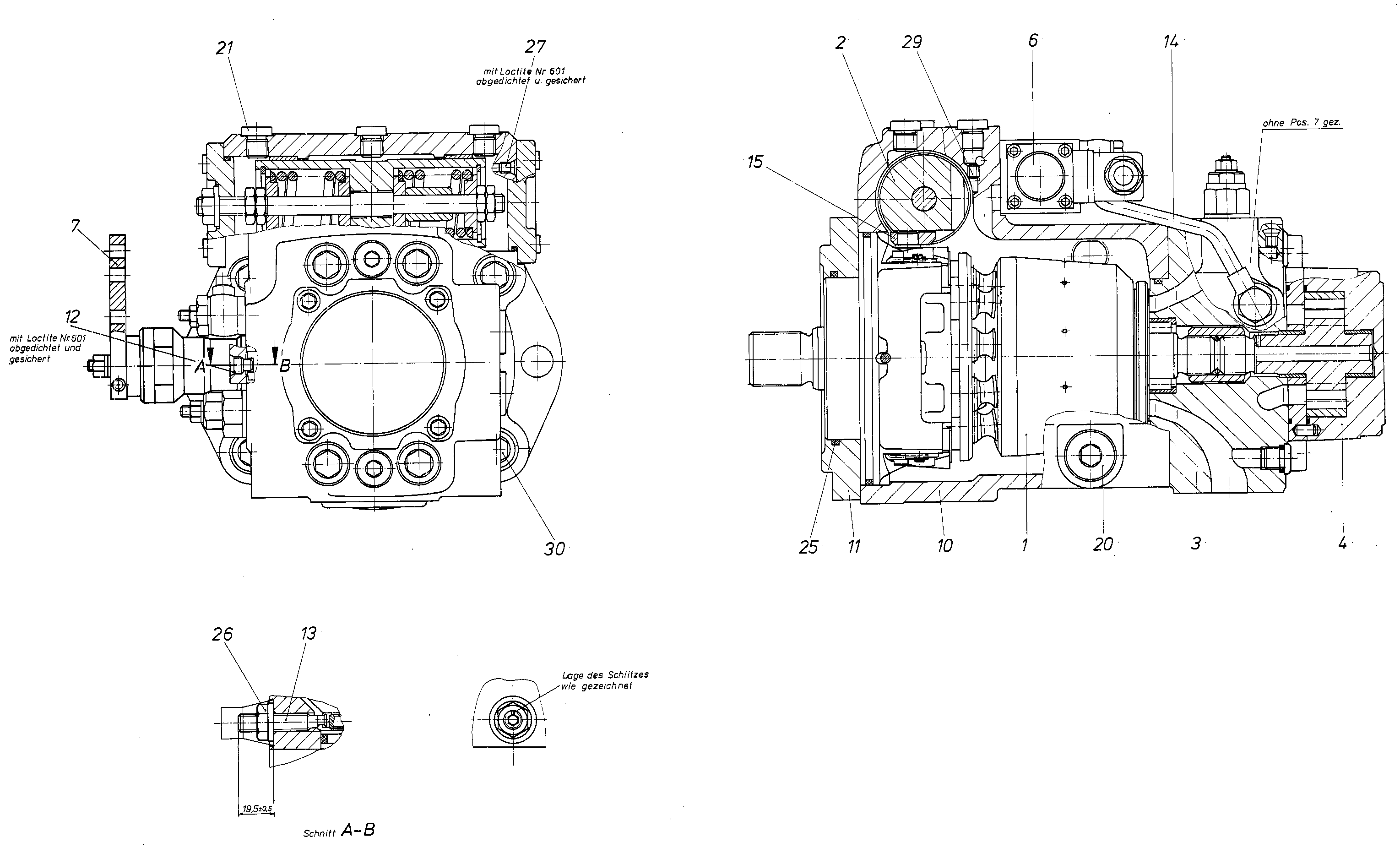

Axial piston pump Bosch Rexroth series A4V, type code A4V56DA1.0R0O1B1O, material number R909410051.
- Number
- R909410051
- Type code
- A4V56DA1.0R0O1B1O
- Group
- A4V 56
- Edition
- 03/2019
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400452 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909414468 | CONTROL Assembly parts list →L | 1 | ||
| R909078290 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909079485 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909069577 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909606409 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| — | HOUSING | 1 | ||
| R909074129 | FLANGE | 1 | ||
| R909414043 | ANTI-TWIST LOCK | 1 | ||
| R909414044 | ANTI-TWIST LOCK | 1 | ||
| R909405757 | ECCENTRIC SCREW | 1 | ||
| R909400346 | PIPE Assembly parts list →L | 1 | ||
| R909425992 | SLIDER | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909083825 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156492 | NOZZLE | 2 | ||
| R909153817 | SOCKET HEAD CAP SCREW | 4 | ||
| 98 | R902166541 | SEAL KIT | 1 |
