Unit · AXIAL-PISTON PUMP
A4V90DA1.0R0G1A1OR909410071
Axial piston pump Bosch Rexroth series A4V, type code A4V90DA1.0R0G1A1O, material number R909410071.
- Number
- R909410071
- Type code
- A4V90DA1.0R0G1A1O
- Group
- A4V 90
- Edition
- 06/2020

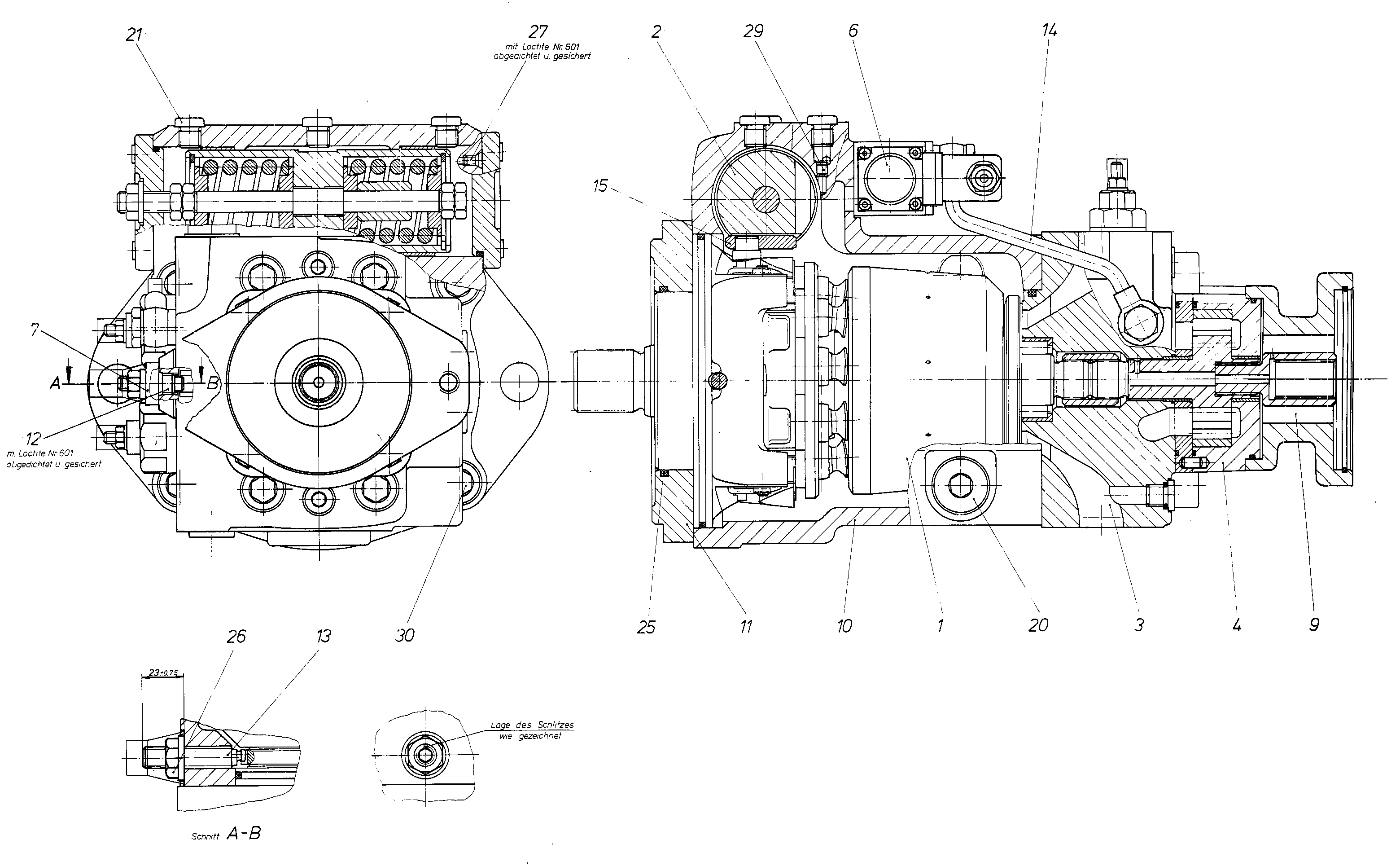

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909405999 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909414469 | CONTROL Assembly parts list →L | 1 | ||
| R909079302 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909403698 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909071420 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R909403697 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909405946 | HOUSING | 1 | ||
| R909074121 | FLANGE | 1 | ||
| R909414045 | ANTI-TWIST LOCK | 1 | ||
| R909414046 | ANTI-TWIST LOCK | 1 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909400349 | PIPE Assembly parts list →L | 1 | ||
| R909074171 | SLIDER | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909085365 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R909083139 | SOCKET HEAD CAP SCREW | 4 | ||
| 31 | R909154497 | SAFETY CAP | 1 |
