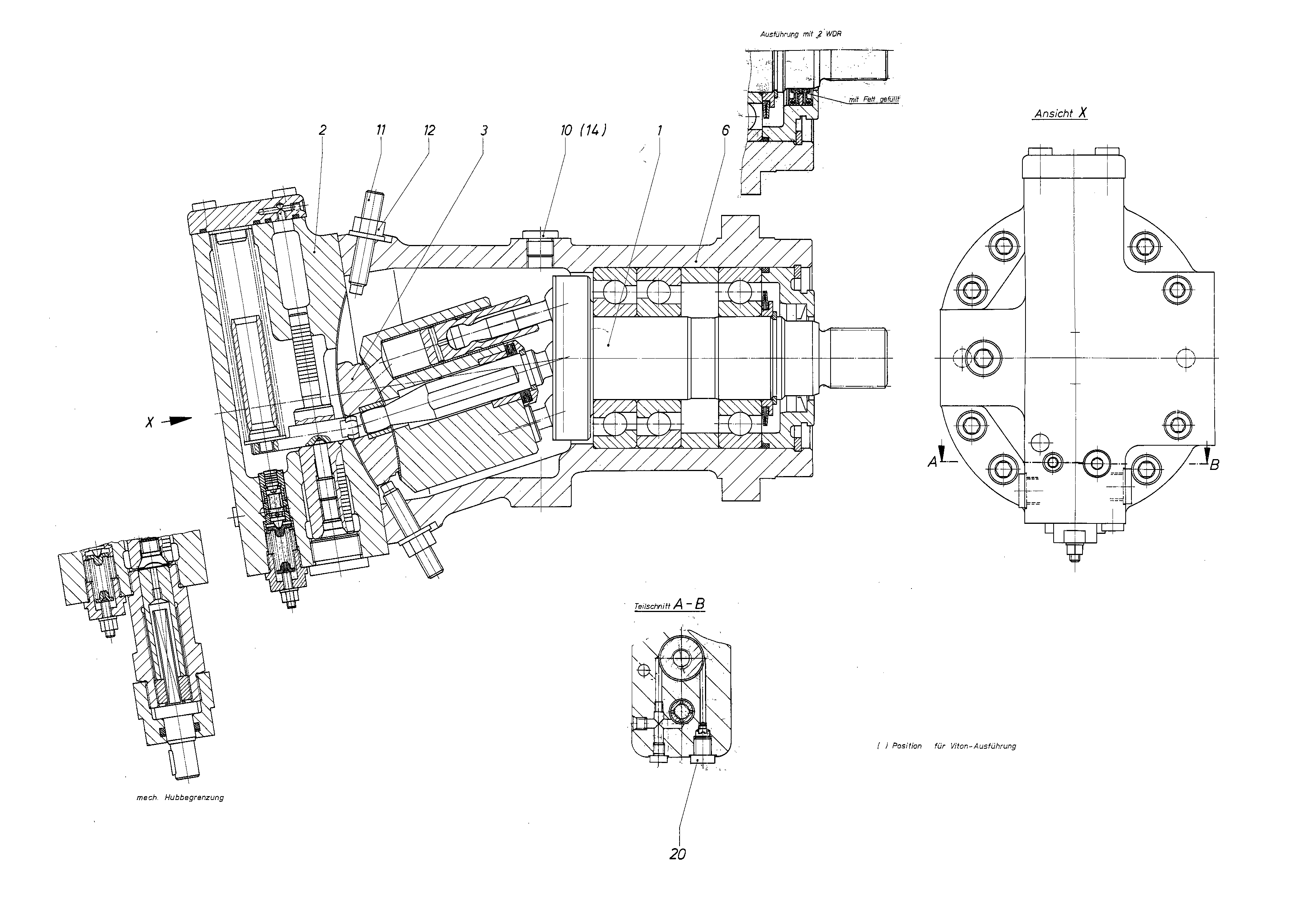

Unit · AXIAL-PISTON PUMP
A7V40DR2.0RZF00R909411217
Axial piston pump Bosch Rexroth series A7V, type code A7V40DR2.0RZF00, material number R909411217.
- Number
- R909411217
- Type code
- A7V40DR2.0RZF00
- Group
- A7V 40
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909411219 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909400605 | CONTROL Assembly parts list →L | 1 | ||
| R909071910 | CONTROL LENS | 1 | ||
| R909081640 | HOUSING | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909152983 | SETSCREW | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909151692 | SCREW PLUGD | 1 |
