Unit · AXIAL-PISTON PUMP
A2FO45/61R-PZB05R909411585
Axial piston pump Bosch Rexroth series A2FO, type code A2FO45/61R-PZB05, material number R909411585.
- Number
- R909411585
- Type code
- A2FO45/61R-PZB05
- Group
- A2FO 45
- Edition
- 07/2020

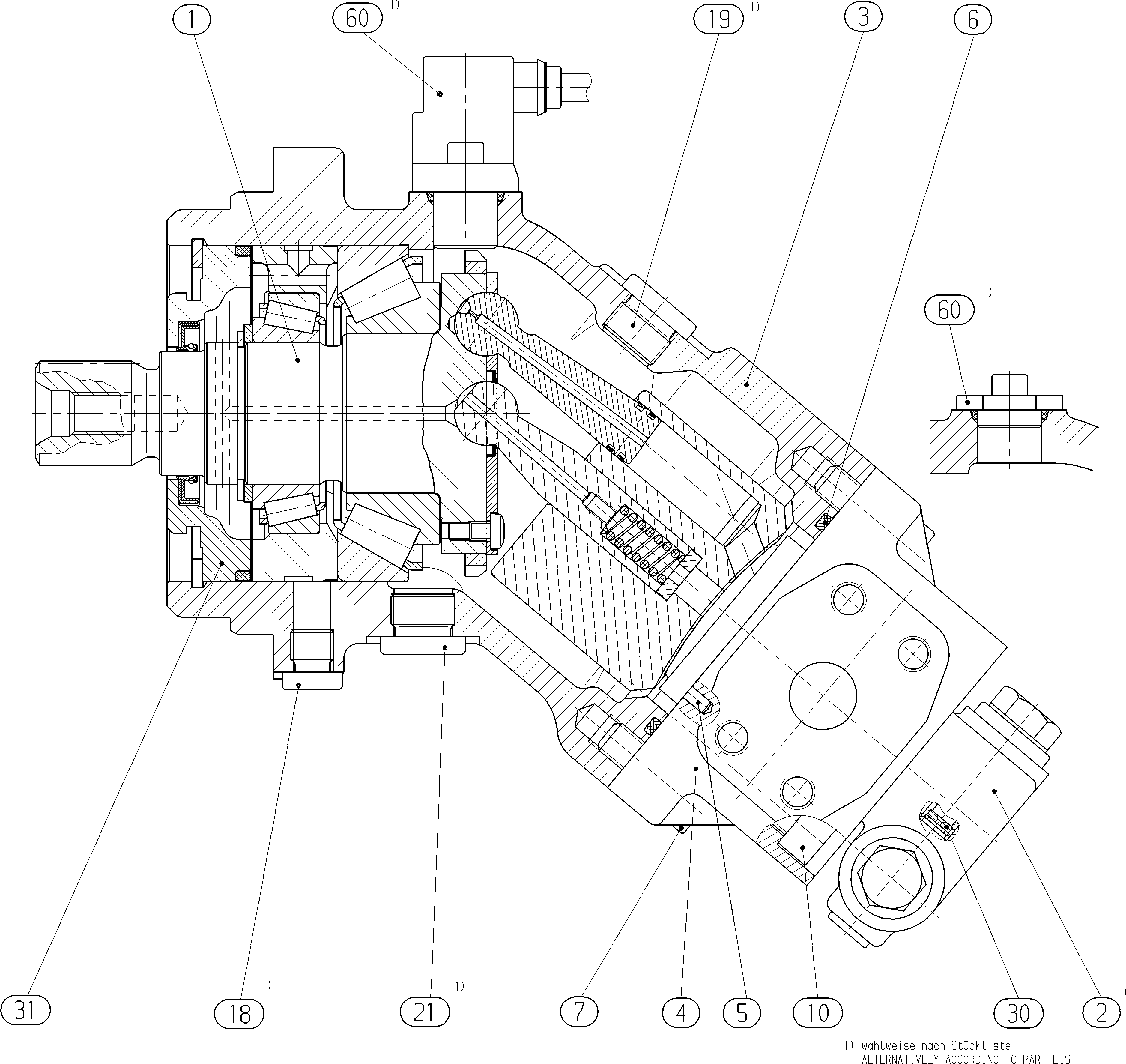

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902030751 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042340 | HOUSING | 1 | ||
| R909411580 | CONNECTION PLATE | 1 | ||
| R909084150 | STRAIGHT PIN | 1 | ||
| R909083819 | O-RINGD | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R902139767 | LOCKING RING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent-axis design, fixed | A2F | |
| Pump, open circuit | O | |
| Drive shafts 5 10 12 16 23 28 32 45 56 63 80 90 107 125 160 180 200 250 to 1000, splined shaft DIN 5480 | Z | |
| Parallel keyed shaft – – DIN 6885 | B |
