Unit · AXIAL-PISTON MOTOR
A2FM45/61W-VPB040R909411589
Axial piston motor Bosch Rexroth series A2FM, type code A2FM45/61W-VPB040, material number R909411589. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 4-hole (B). Working ports: threaded ports 04 0 A and B at side and at rear (040).
- Number
- R909411589
- Type code
- A2FM45/61W-VPB040
- Group
- A2FM 45
- Edition
- 12/2019

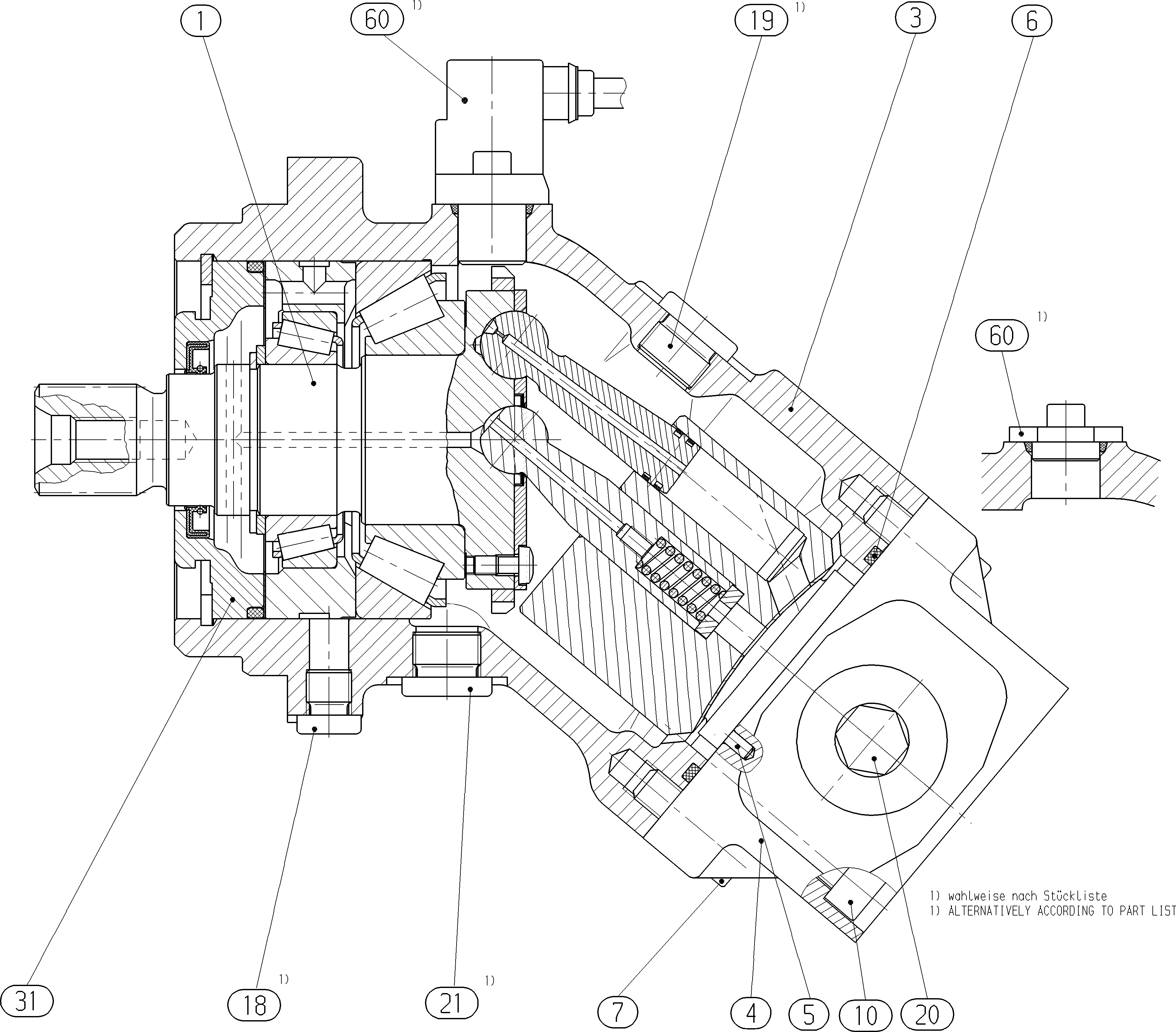

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902030533 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042196 | HOUSING | 1 | ||
| R909411579 | CONNECTION PLATE | 1 | ||
| R909084150 | STRAIGHT PIN | 1 | ||
| R909150744 | O-RINGD | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R909156652 | SCREW PLUGD | 2 | ||
| R902139673 | LOCKING RING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working ports | Threaded ports 04 0 A and B at side and at rear | 040 |
