Unit · AXIAL-PISTON PUMP
A4V250EL2.0R1EXO3A-SR909413709

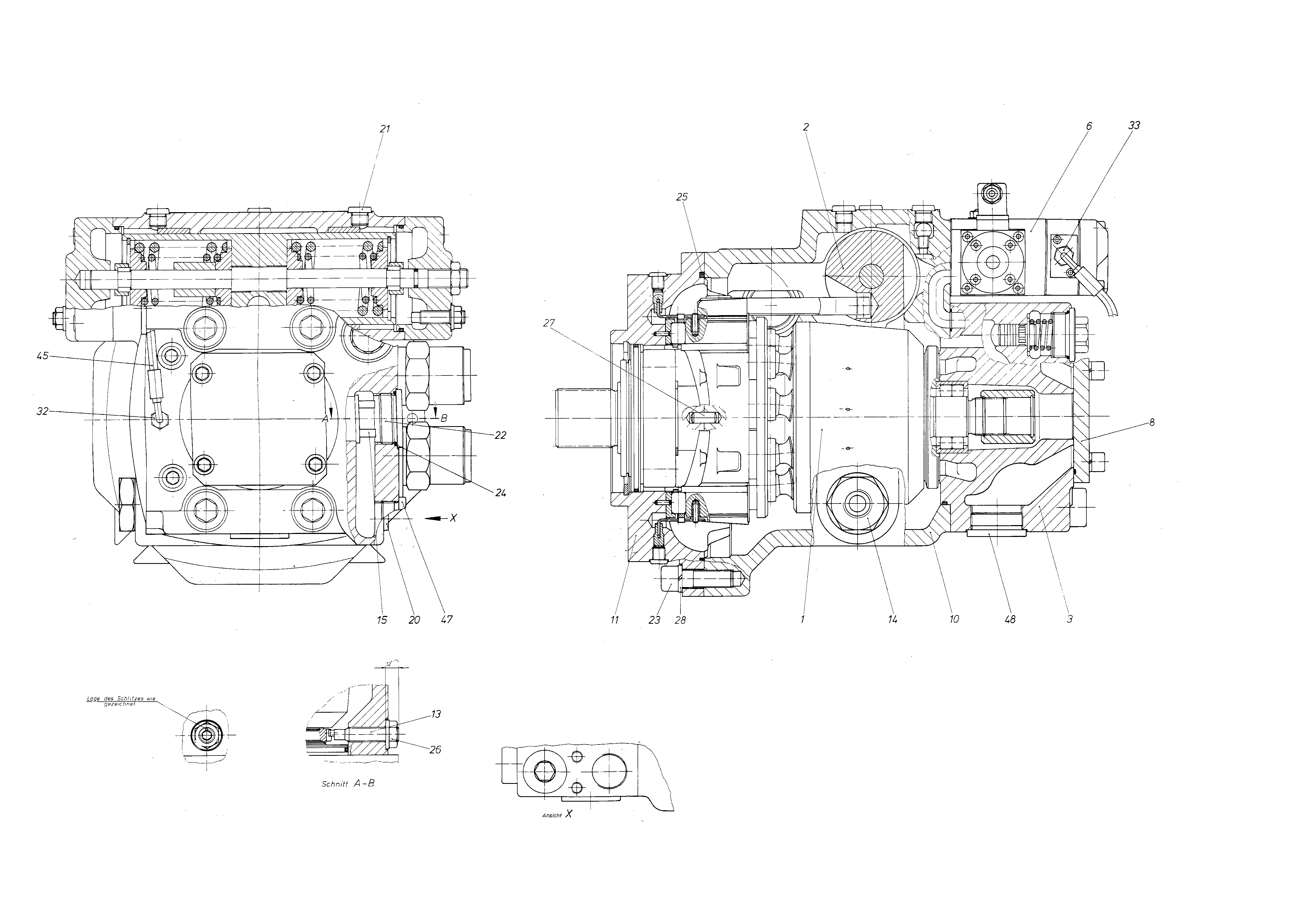

Axial piston pump Bosch Rexroth series A4V, type code A4V250EL2.0R1EXO3A-S, material number R909413709.
- Number
- R909413709
- Type code
- A4V250EL2.0R1EXO3A-S
- Group
- A4V 250
- Edition
- 12/2018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909411973 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411007 | CONTROL Assembly parts list →L | 1 | ||
| — | CONNECTION PLATE Assembly parts list →L | 1 | ||
| — | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909411299 | SEALING COVER Assembly parts list →L | 1 | ||
| R909405661 | HOUSING | 1 | ||
| R909405663 | FLANGE Assembly parts list →L | 1 | ||
| R909420279 | ECCENTRIC SCREW | 1 | ||
| R909416639 | ORIFICE SCREW Assembly parts list →L | 1 | ||
| R909403537 | LOCKING PIECE | 1 | ||
| R909153862 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 5 | ||
| R909083230 | SCREW PLUG | 1 | ||
| R909083133 | SOCKET HEAD CAP SCREW | 8 | ||
| R909086375 | O-RINGD | 1 | ||
| R909154594 | O-RINGD | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R913009672 | STRAIGHT PIN | 1 | ||
| R909083254 | SPRING LOCK WASHER | 8 | ||
| R909831065 | TUBE FITTING | 1 | ||
| R909831065 | TUBE FITTING | 1 | ||
| R909436336 | HYDRAULIC LINE | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909153459 | SCREW PLUGD | 1 | ||
| 98 | R902166072 | SEAL KIT | 1 |
