Unit · AXIAL-PISTON PUMP
V-PUMPEA7V080SRD/60L-DPB1*G*R909416882

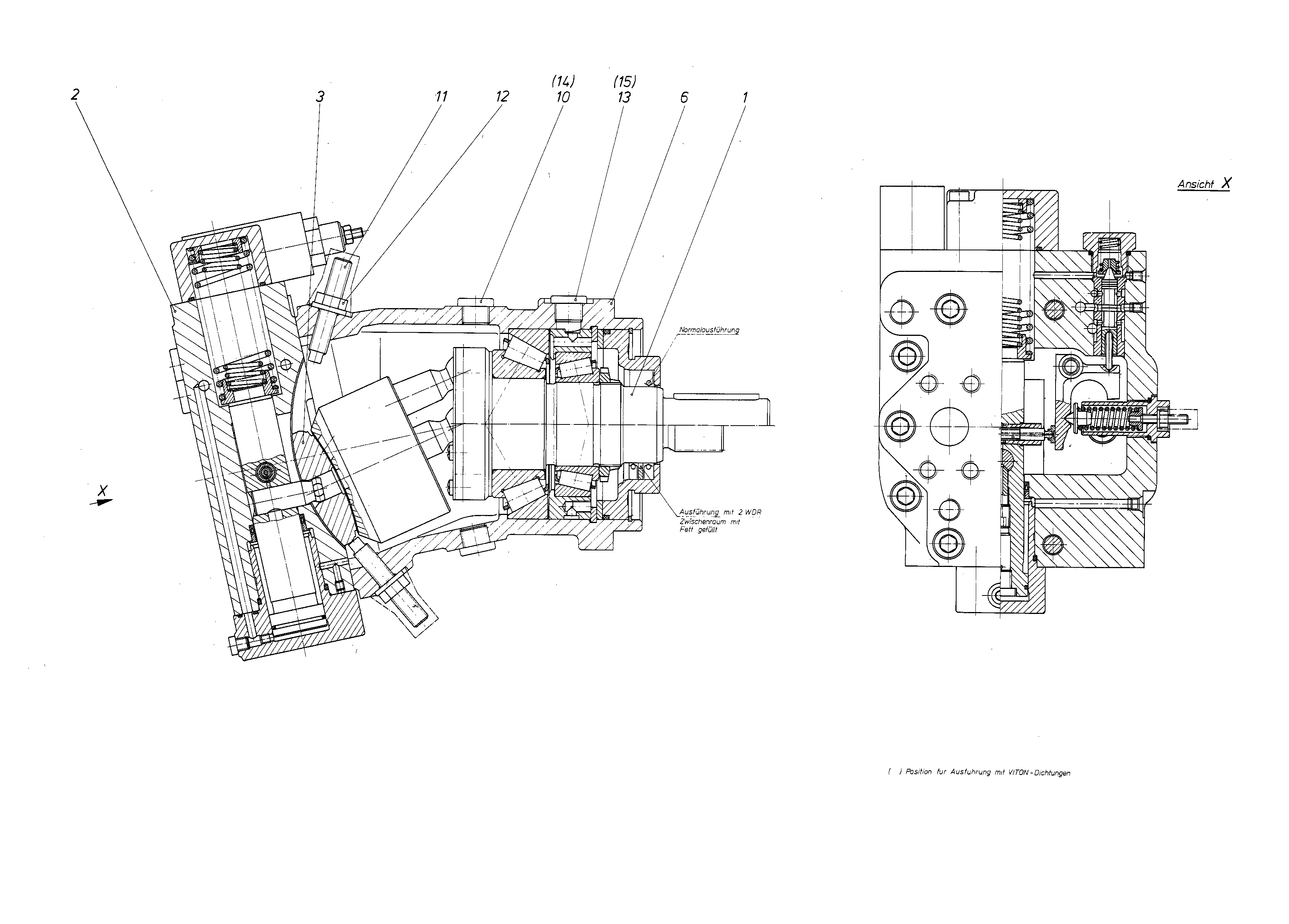

Axial piston pump Bosch Rexroth series A7V, type code V-PUMPEA7V080SRD/60L-DPB1*G*, material number R909416882.
- Number
- R909416882
- Type code
- V-PUMPEA7V080SRD/60L-DPB1*G*
- Group
- A7V 80
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909416442 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909416881 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650452 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| 6 | R909412111 | HOUSING | 1 | |
| R909153815 | SCREW PLUGD | 2 | ||
| 11 | R909085976 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| 13 | R909153815 | SCREW PLUGD | 1 |
