Unit · AXIAL-PISTON PUMP
V-PUMPEA7VTO80LRD/60R-PZB1*G*R909417999
Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEA7VTO80LRD/60R-PZB1*G*, material number R909417999.
- Number
- R909417999
- Type code
- V-PUMPEA7VTO80LRD/60R-PZB1*G*
- Group
- A7VTO 80
- Edition
- 06/2020

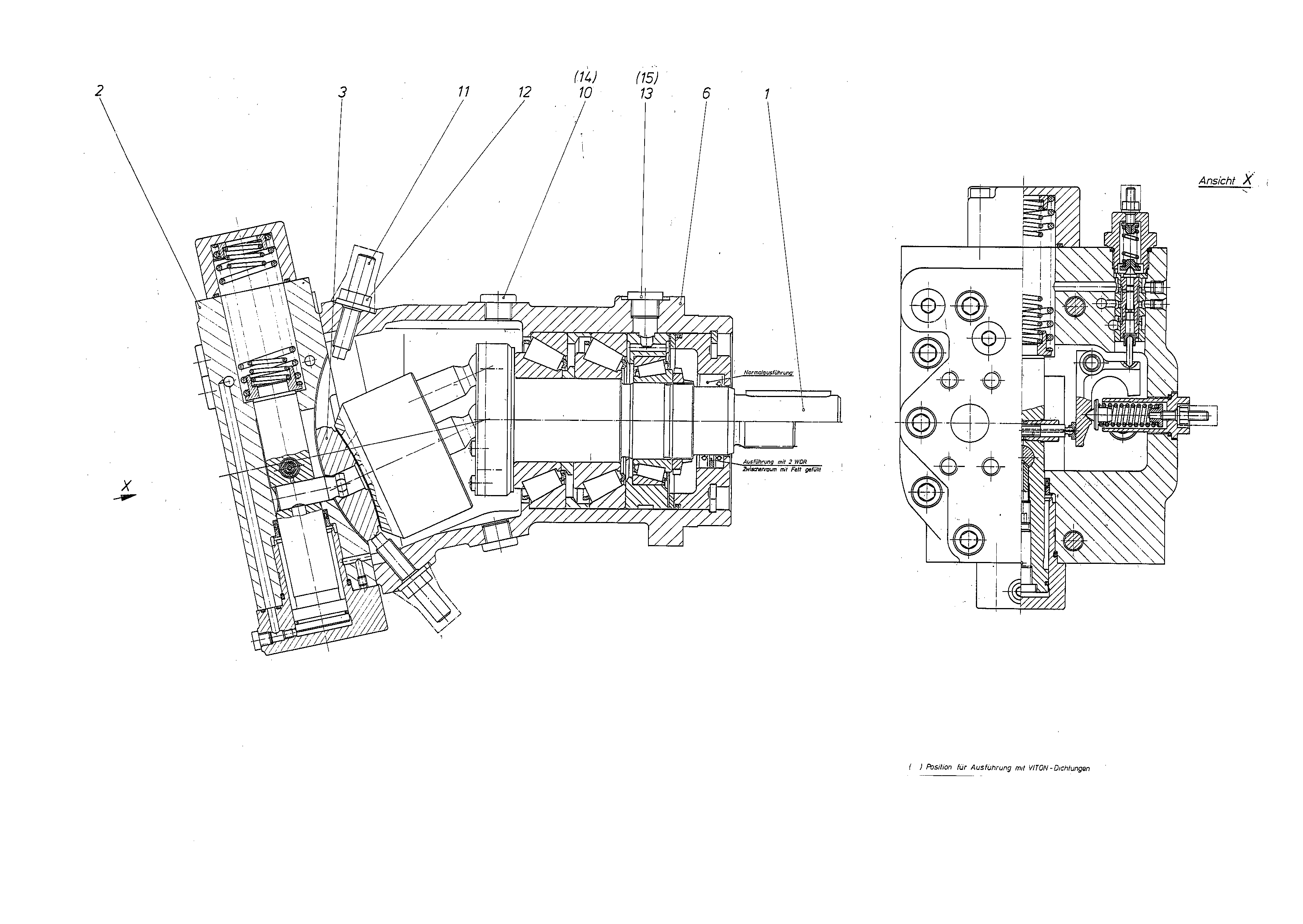

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909411787 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909413083 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650451 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| 6 | R909412269 | HOUSING | 1 | |
| 10 | R909153815 | SCREW PLUGD | 2 | |
| 11 | R909085976 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| 13 | R909153815 | SCREW PLUGD | 1 |
