Unit · AXIAL-PISTON PUMP
A4V90DA1.0R0M1E1AR909418176
Axial piston pump Bosch Rexroth series A4V, type code A4V90DA1.0R0M1E1A, material number R909418176.
- Number
- R909418176
- Type code
- A4V90DA1.0R0M1E1A
- Group
- A4V 90
- Edition
- 01/2019

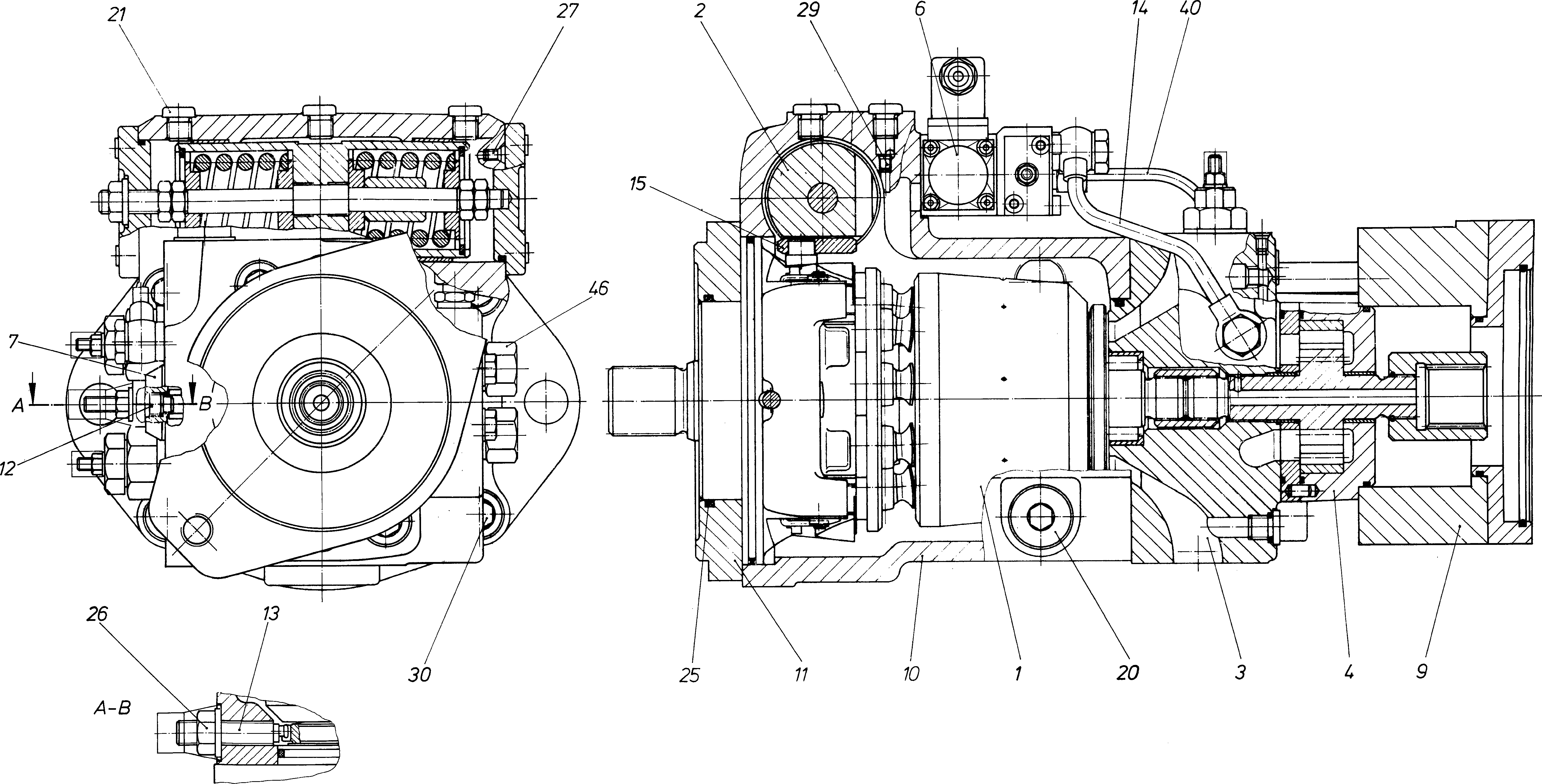

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400453 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909414661 | CONTROL Assembly parts list →L | 1 | ||
| R909079466 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909434058 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909438361 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| — | BELL HOUSING Assembly parts list →L | 1 | ||
| R909405946 | HOUSING | 1 | ||
| R909074121 | FLANGE | 1 | ||
| R909414045 | ANTI-TWIST LOCK | 1 | ||
| R909414046 | ANTI-TWIST LOCK | 1 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| — | PIPE Assembly parts list →L | 1 | ||
| R909074171 | SLIDER | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909085365 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156495 | NOZZLE | 2 | ||
| R909083139 | SOCKET HEAD CAP SCREW | 4 | ||
| 31 | R909152011 | THREADED FASTENER | 1 | |
| 32 | R909083315 | THREADED FASTENER | 1 | |
| — | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909065792 | THREADED REDUCING STUD | 2 |
