Unit · AXIAL-PISTON PUMP
A4V250DA2.0L1O1E1A-SR909418177
Axial piston pump Bosch Rexroth series A4V, type code A4V250DA2.0L1O1E1A-S, material number R909418177.
- Number
- R909418177
- Type code
- A4V250DA2.0L1O1E1A-S
- Group
- A4V 250
- Edition
- 01/2018

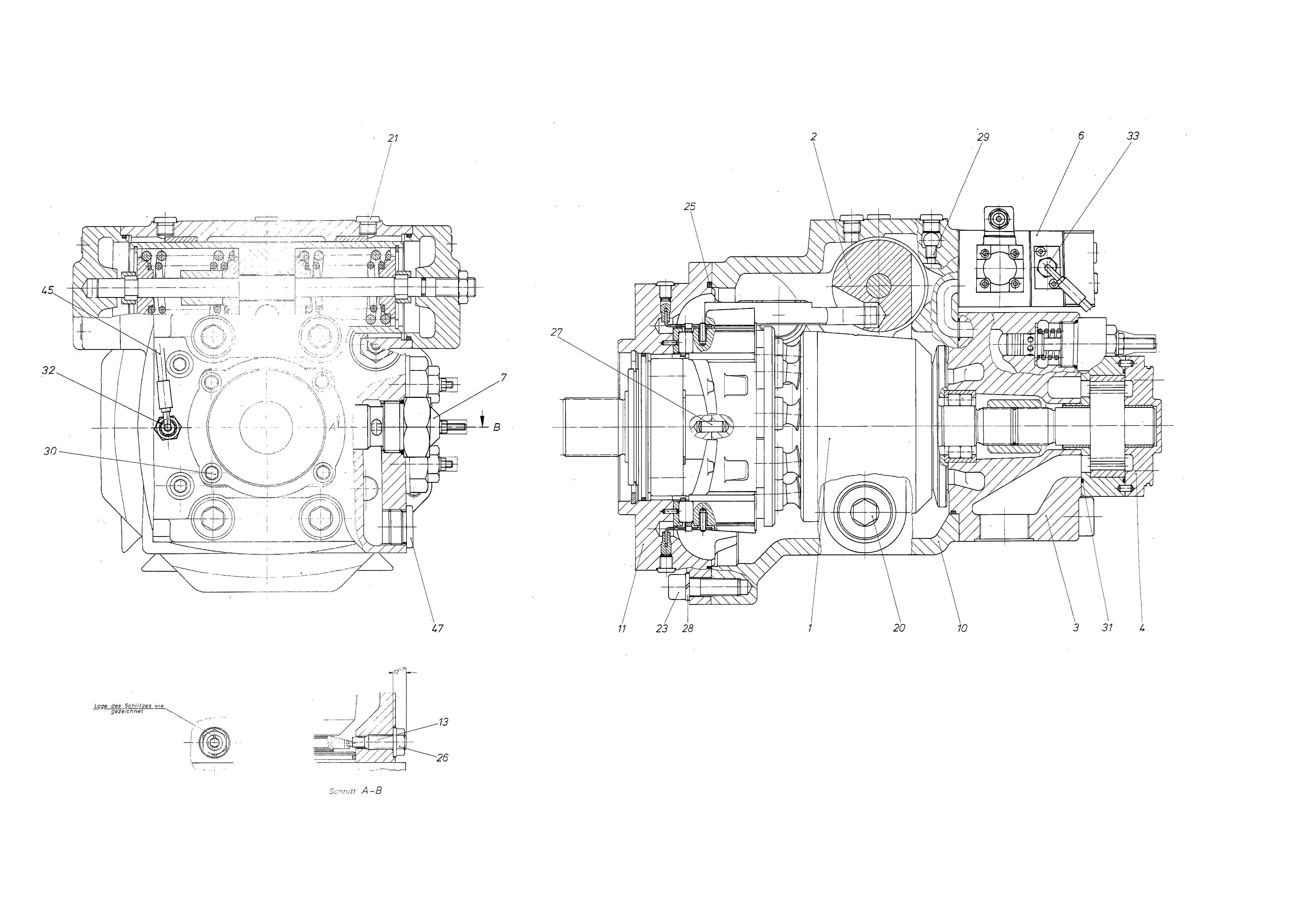

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909403523 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909424524 | CONTROL Assembly parts list →L | 1 | ||
| R909428667 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909427745 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909607295 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909414731 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R909405661 | HOUSING | 1 | ||
| R909405663 | FLANGE Assembly parts list →L | 1 | ||
| R909420279 | ECCENTRIC SCREW | 1 | ||
| R909153862 | SCREW PLUGD | 3 | ||
| R909153816 | SCREW PLUGD | 5 | ||
| R909083133 | SOCKET HEAD CAP SCREW | 8 | ||
| R909154594 | O-RINGD | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R913009672 | STRAIGHT PIN | 1 | ||
| R909083254 | SPRING LOCK WASHER | 8 | ||
| R909424837 | THROTTLE SCREW | 2 | ||
| R909831065 | TUBE FITTING | 1 | ||
| R909831065 | TUBE FITTING | 1 | ||
| R909436336 | HYDRAULIC LINE | 1 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| 98 | R902166672 | SEAL KIT | 1 |
