Unit · AXIAL-PISTON MOTOR
A2FE63/61W-NZL100R909418425
Axial piston motor Bosch Rexroth series A2FE, type code A2FE63/61W-NZL100, material number R909418425. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor, plug-in version (E). Direction of rotation: viewed on drive shaft, bidirectional (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 2-whole (L). Working ports: SAE working port 0 A and B bottom (same side) 10 (100).
- Number
- R909418425
- Type code
- A2FE63/61W-NZL100
- Group
- A2FE 63
- Edition
- 03/2019

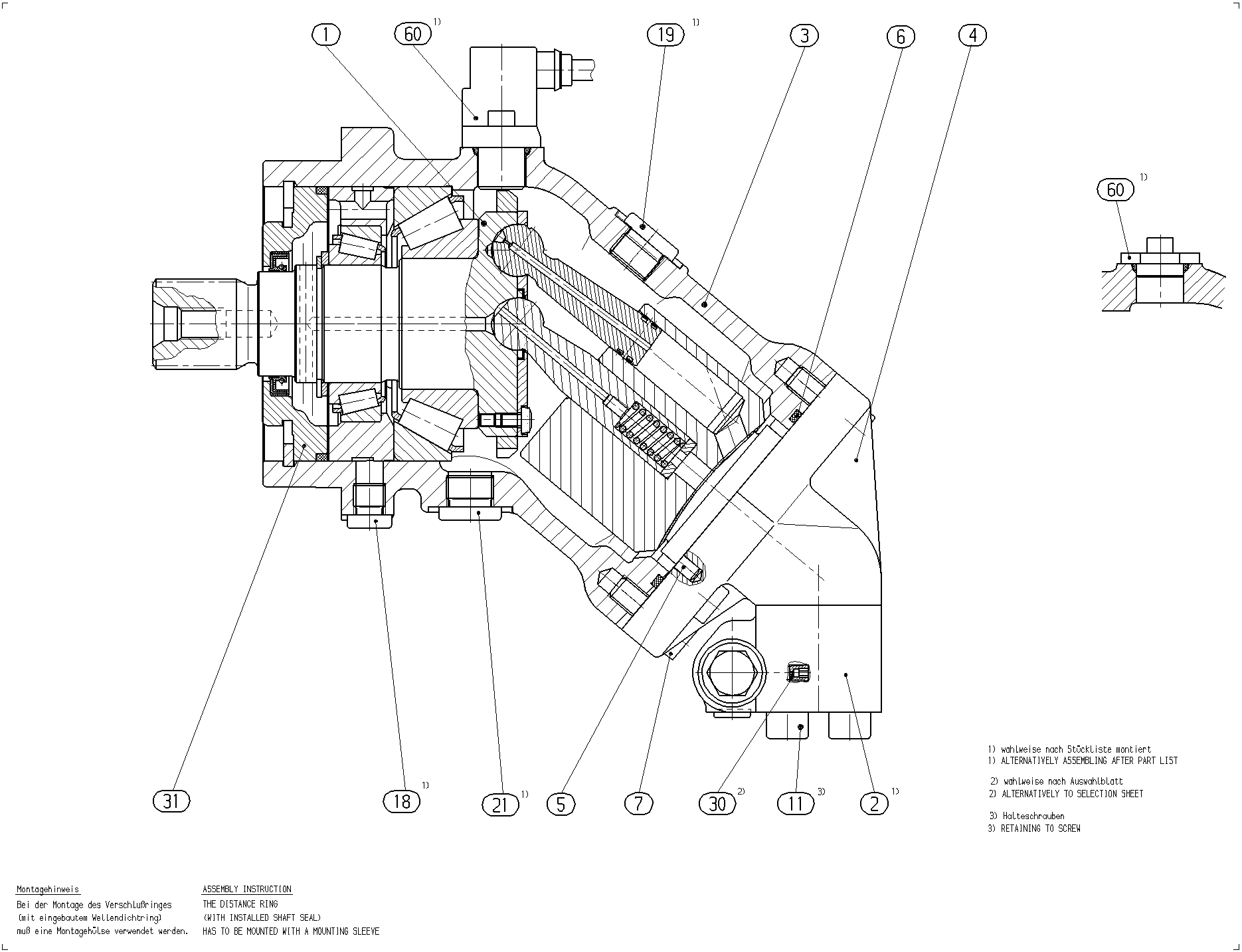

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902031613 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042330 | HOUSING | 1 | ||
| R909417325 | CONNECTION PLATE | 1 | ||
| R909084150 | STRAIGHT PIN | 1 | ||
| R909086324 | O-RINGD | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 6 | ||
| 8 | R909083251 | SPRING LOCK WASHER | 6 | |
| R902149068 | LOCKING RING Assembly parts list →L | 1 | ||
| 98 | R902002217 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor, plug-in version | E |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 2-whole | L |
| Working ports | SAE working port 0 A and B bottom (same side) 10 | 100 |
