Unit · AXIAL-PISTON PUMP
A4V71DA2.0R1J5C1OR909419548

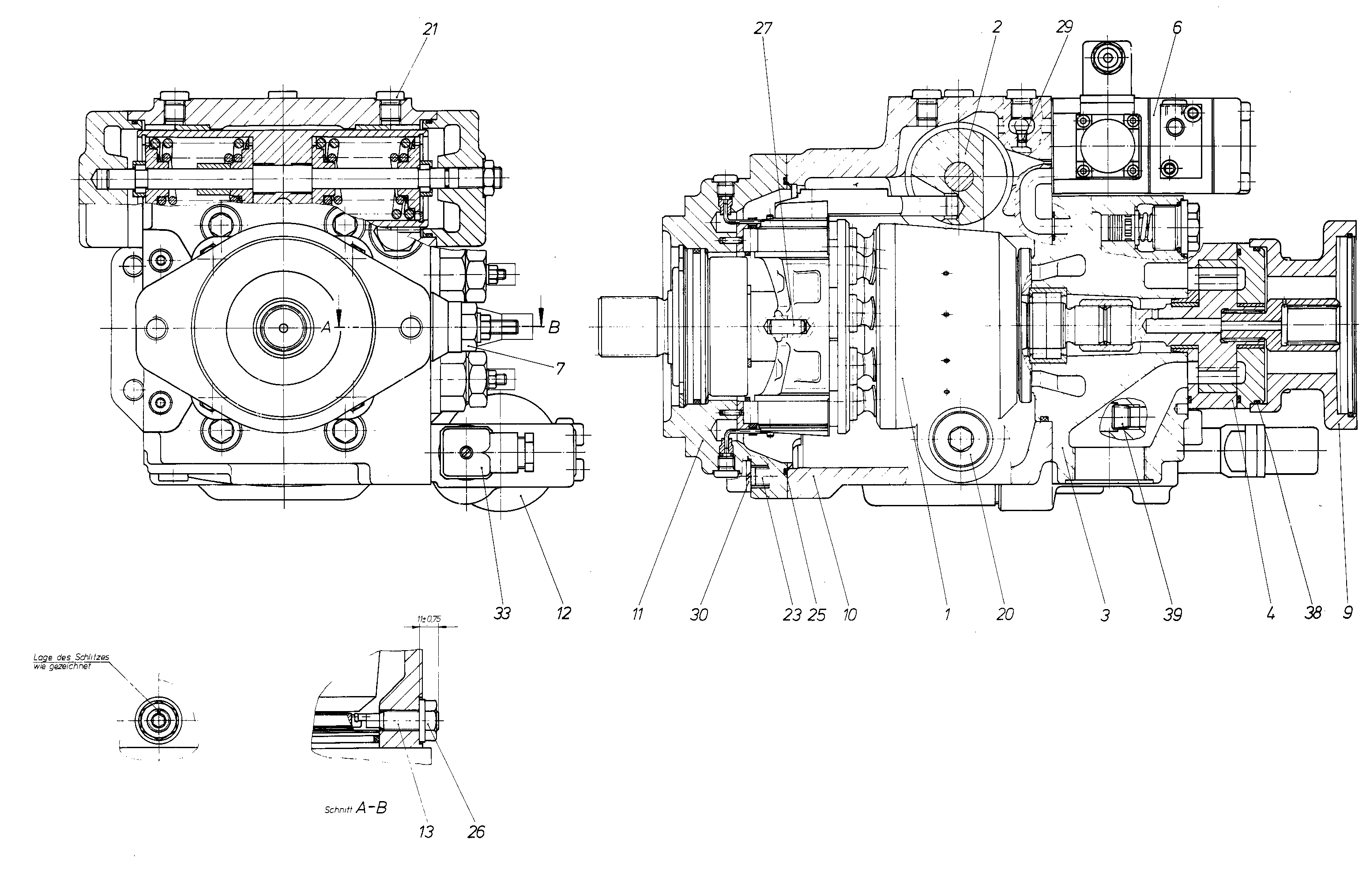

Axial piston pump Bosch Rexroth series A4V, type code A4V71DA2.0R1J5C1O, material number R909419548.
- Number
- R909419548
- Type code
- A4V71DA2.0R1J5C1O
- Group
- A4V 71
- Edition
- 09/2018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400440 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434067 | CONTROL Assembly parts list →L | 1 | ||
| R909428822 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909408055 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909420352 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909415058 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| 8 | R909408194 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R909408024 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909405623 | HOUSING | 1 | ||
| R909405621 | FLANGE Assembly parts list →L | 1 | ||
| R909411496 | MOUNTABLE FILTER Assembly parts list →L | 1 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 8 | ||
| R909086684 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909087752 | STRAIGHT PIN | 1 | ||
| R909156494 | NOZZLE | 2 | ||
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R928055257 | CLOGGING INDICATOR | 1 | ||
| R909087912 | SCREW PLUG | 1 |
