Unit · AXIAL-PISTON PUMP
V-PUMPEAA7VTO200LRD/60R-PZD1*G*R909419631

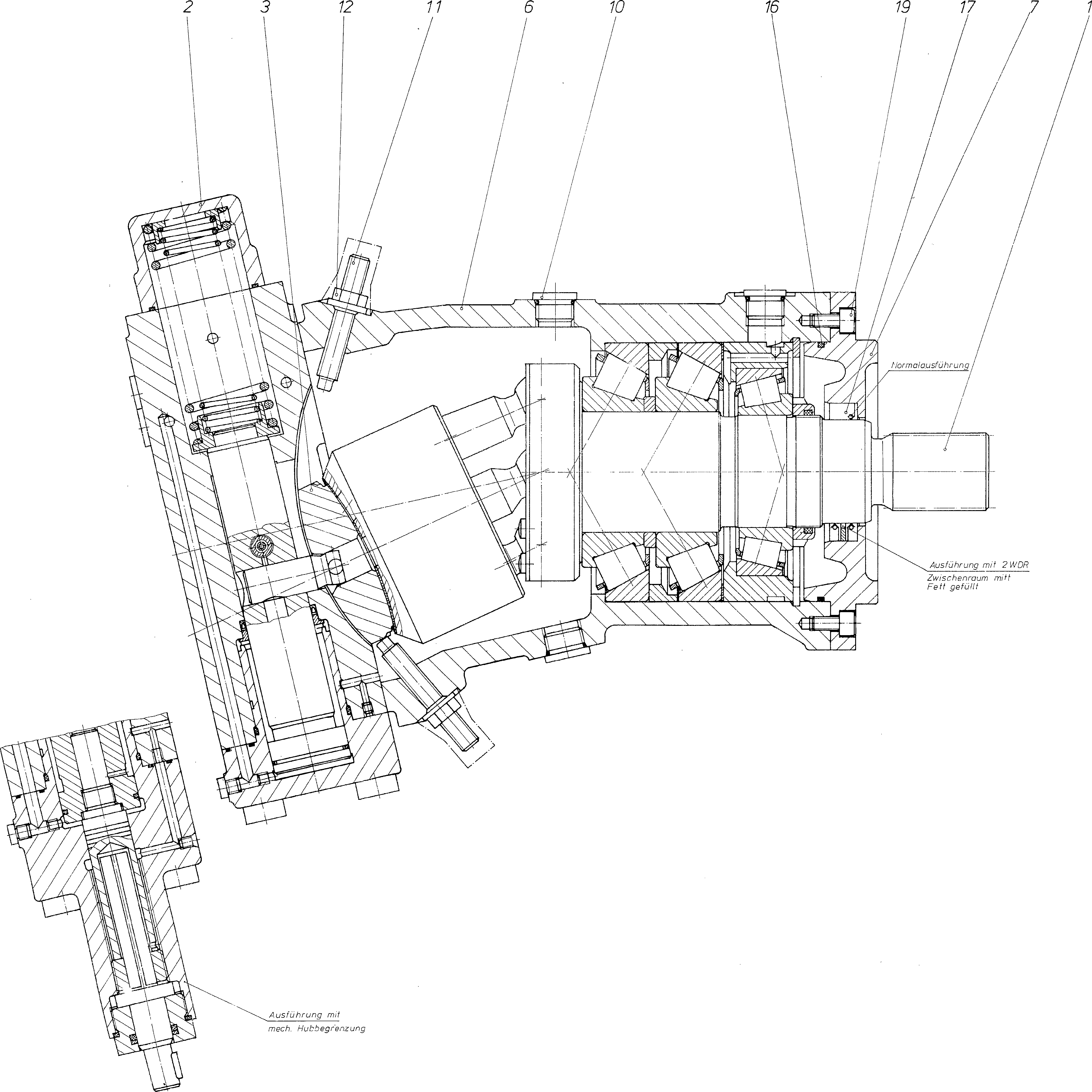

Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEAA7VTO200LRD/60R-PZD1*G*, material number R909419631.
- Number
- R909419631
- Type code
- V-PUMPEAA7VTO200LRD/60R-PZD1*G*
- Group
- A7VTO 200
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419382 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909419632 | CONTROL Assembly parts list →L | 1 | ||
| R909650457 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909425285 | HOUSING | 1 | ||
| R909419383 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 3 | ||
| R909153075 | SETSCREW | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909083852 | O-RINGD | 1 | ||
| R909152970 | SHAFT SEALING RINGD | 1 | ||
| R909083189 | SOCKET HEAD CAP SCREW | 4 |
