Unit · AXIAL-PISTON PUMP
A8VO55SR/60R1-PZG05K46R909420121
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55SR/60R1-PZG05K46, material number R909420121.
- Number
- R909420121
- Type code
- A8VO55SR/60R1-PZG05K46
- Group
- A8VO 55
- Edition
- 05/2020

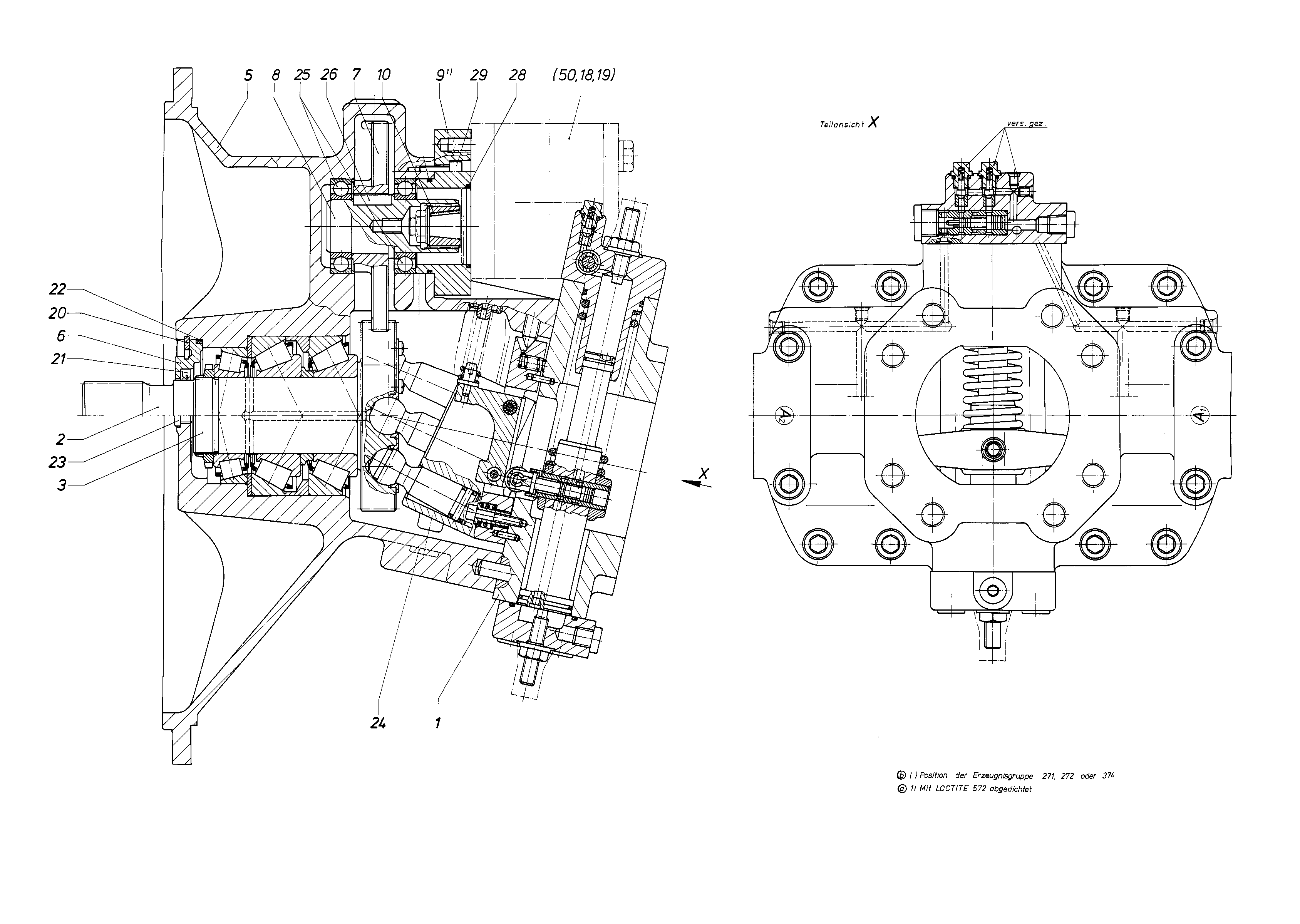

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902018388 | CONTROL Assembly parts list →L | 1 | ||
| R909411241 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411242 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909430594 | PUMP HOUSING | 1 | ||
| R909410982 | LOCKING RINGD | 1 | ||
| R909425596 | TOOTHED WHEEL | 1 | ||
| R909422706 | PLUG-IN SHAFT | 1 | ||
| R909420124 | FLANGE | 1 | ||
| R909402724 | PINION | 1 | ||
| R909154609 | RETAINING RING | 1 | ||
| R909832131 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083824 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909085444 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909083980 | PARALLEL KEY | 1 | ||
| R909086804 | O-RINGD | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 4 | ||
| 98 | R902095995 | SEAL KIT | 1 |
