Unit · AXIAL-PISTON PUMP
V-PUMPEA7V080LR/60R-PPB01*G*R909420502

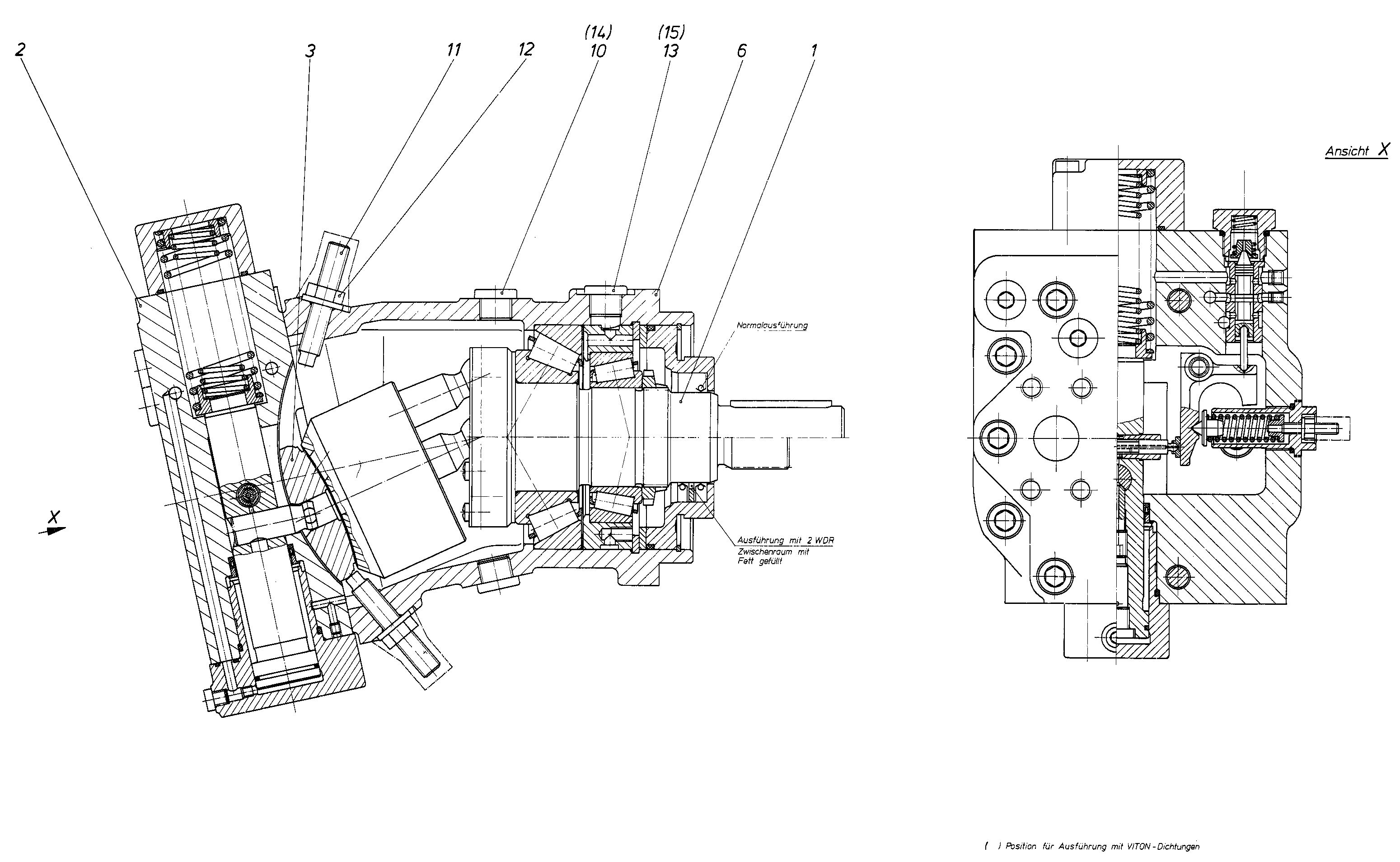

Axial piston pump Bosch Rexroth series A7V, type code V-PUMPEA7V080LR/60R-PPB01*G*, material number R909420502.
- Number
- R909420502
- Type code
- V-PUMPEA7V080LR/60R-PPB01*G*
- Group
- A7V 80
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909410210 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909413039 | CONTROL Assembly parts list →L | 1 | ||
| R909650451 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909412111 | HOUSING | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909085976 | SETSCREW | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909153815 | SCREW PLUGD | 1 |
