Unit · AXIAL-PISTON PUMP
A8VO55DR/60R1-PZG05G*SV*R909421603
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55DR/60R1-PZG05G*SV*, material number R909421603. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Valves: without valves (only for the version without auxiliary pump, U) (0).
- Number
- R909421603
- Type code
- A8VO55DR/60R1-PZG05G*SV*
- Group
- A8VO 55
- Edition
- 06/2020

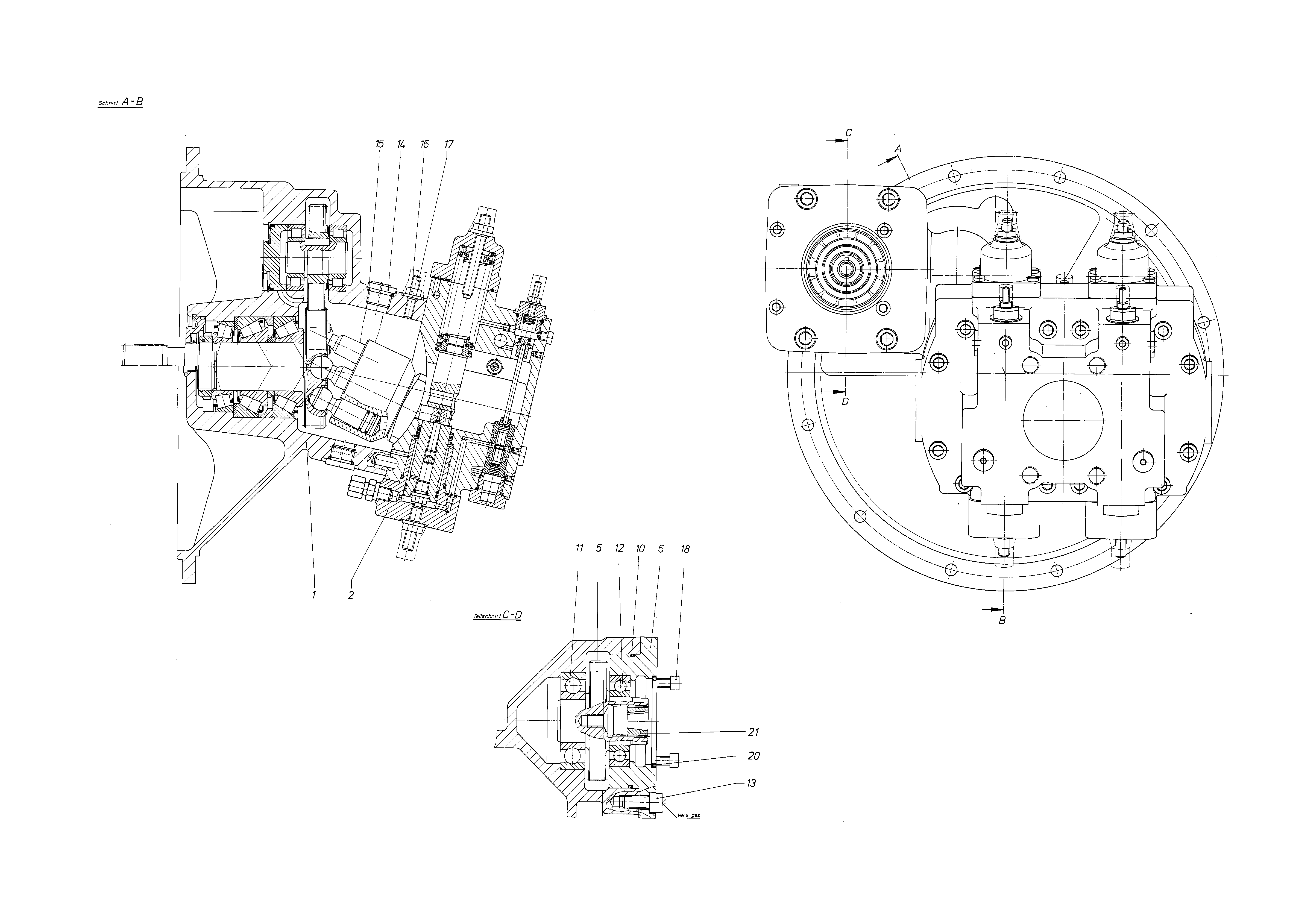

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418511 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909421602 | CONTROL Assembly parts list →L | 1 | ||
| R909417979 | TOOTHED WHEEL | 1 | ||
| R909421678 | FLANGE | 1 | ||
| R909152647 | O-RINGD | 1 | ||
| R909085477 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150668 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083225 | SCREW PLUG | 2 | ||
| R909083758 | O-RINGD | 2 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909084531 | SETSCREW | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086324 | O-RINGD | 1 | ||
| R909402724 | PINION | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Valves | Without valves (only for the version without auxiliary pump, U) | 0 |
