Unit · AXIAL-PISTON PUMP
A8VO55LRDCH-LRDCH/60R1-PZG05NR909422204
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55LRDCH-LRDCH/60R1-PZG05N, material number R909422204.
- Number
- R909422204
- Type code
- A8VO55LRDCH-LRDCH/60R1-PZG05N
- Group
- A8VO 55
- Edition
- 06/2020

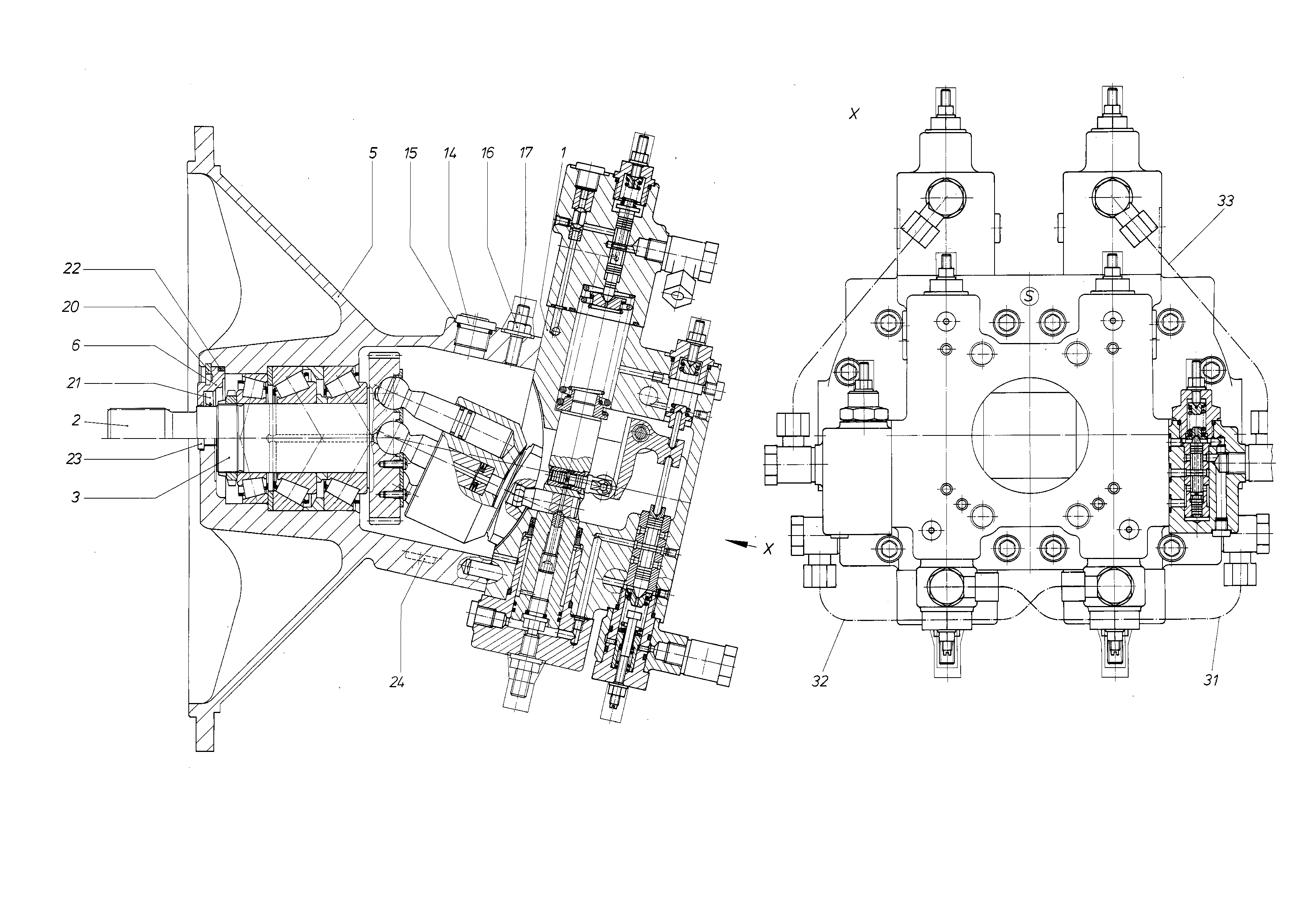

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909422203 | CONTROL Assembly parts list →L | 1 | ||
| 2 | R909411241 | ROTARY GROUP Assembly parts list →L | 1 | |
| 3 | R909411242 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909420348 | PUMP HOUSING | 1 | ||
| 6 | R909410982 | LOCKING RINGD | 1 | |
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909084531 | SETSCREW | 1 | ||
| 20 | R909154609 | RETAINING RING | 1 | |
| 21 | R909832131 | ROTARY SHAFT LIP SEALD | 1 | |
| R909083824 | O-RINGD | 1 | ||
| 23 | R909153364 | SCREW PLUGD | 1 | |
| R909151979 | SCREW PLUGD | 2 | ||
| R909434264 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909434263 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909442152 | HYDRAULIC LINE Assembly parts list →L | 2 |
