Unit · AXIAL-PISTON PUMP
V-PUMPEA7V0107LRH/60R-WZB01*G*R909422347
Axial piston pump Bosch Rexroth series A7V, type code V-PUMPEA7V0107LRH/60R-WZB01*G*, material number R909422347.
- Number
- R909422347
- Type code
- V-PUMPEA7V0107LRH/60R-WZB01*G*
- Group
- A7V 107
- Edition
- 07/2020

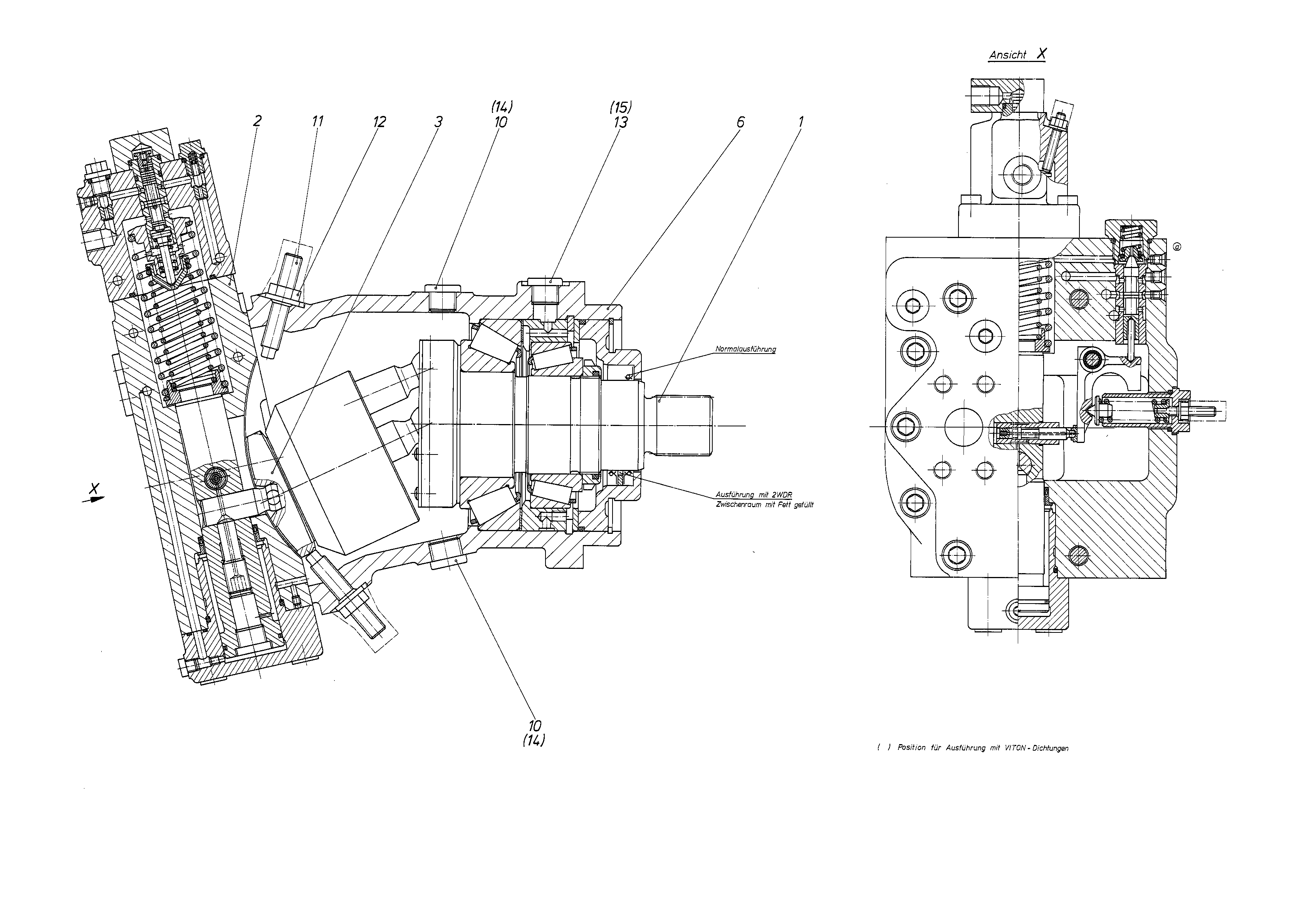

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909422341 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909422344 | CONTROL Assembly parts list →L | 1 | ||
| R909650453 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909425278 | HOUSING | 1 | ||
| 10 | R909156651 | SCREW PLUGD | 2 | |
| 11 | R909085976 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| 13 | R909156651 | SCREW PLUGD | 1 |
