Unit · AXIAL-PISTON PUMP
A8VO55/60R1-SO 27020.5002R909422369
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55/60R1-SO27020.5002, material number R909422369. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Standard / special version: standard version (0).
- Number
- R909422369
- Type code
- A8VO55/60R1-SO 27020.5002
- Group
- A8VO 55
- Edition
- 05/2020

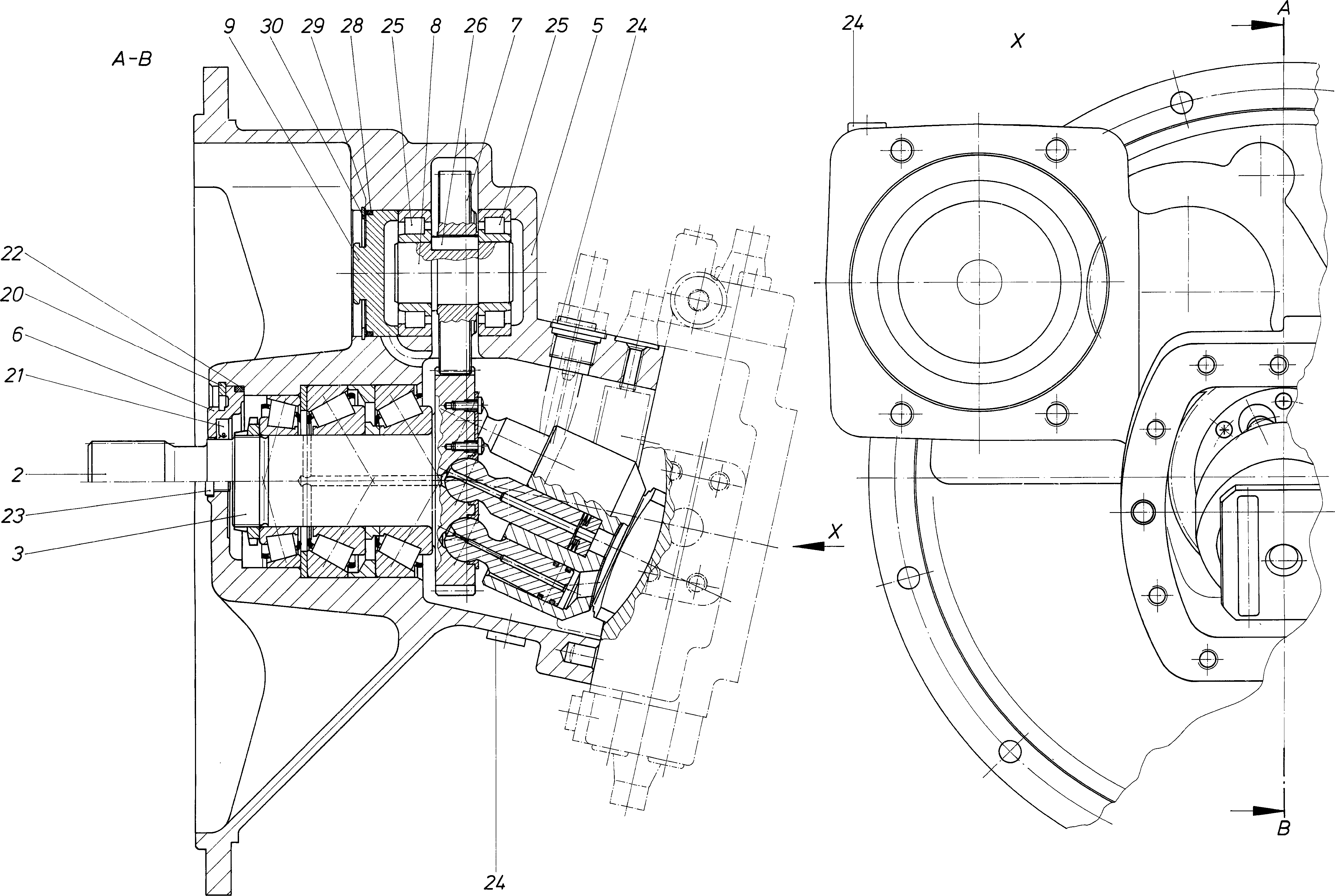

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909411241 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411242 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902075337 | PUMP HOUSING | 1 | ||
| R909410982 | LOCKING RINGD | 1 | ||
| R902101424 | TOOTHED WHEEL | 1 | ||
| R909417978 | PLUG-IN SHAFT | 1 | ||
| R909417513 | COVER | 1 | ||
| R909154609 | RETAINING RING | 1 | ||
| R909832131 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083824 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909153268 | CYL. ROLLER BEARING | 2 | ||
| R909083979 | PARALLEL KEY | 1 | ||
| R909151810 | O-RINGD | 1 | ||
| R909084989 | SHIM RING | 1 | ||
| R909083408 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Standard / special version | Standard version | 0 |
