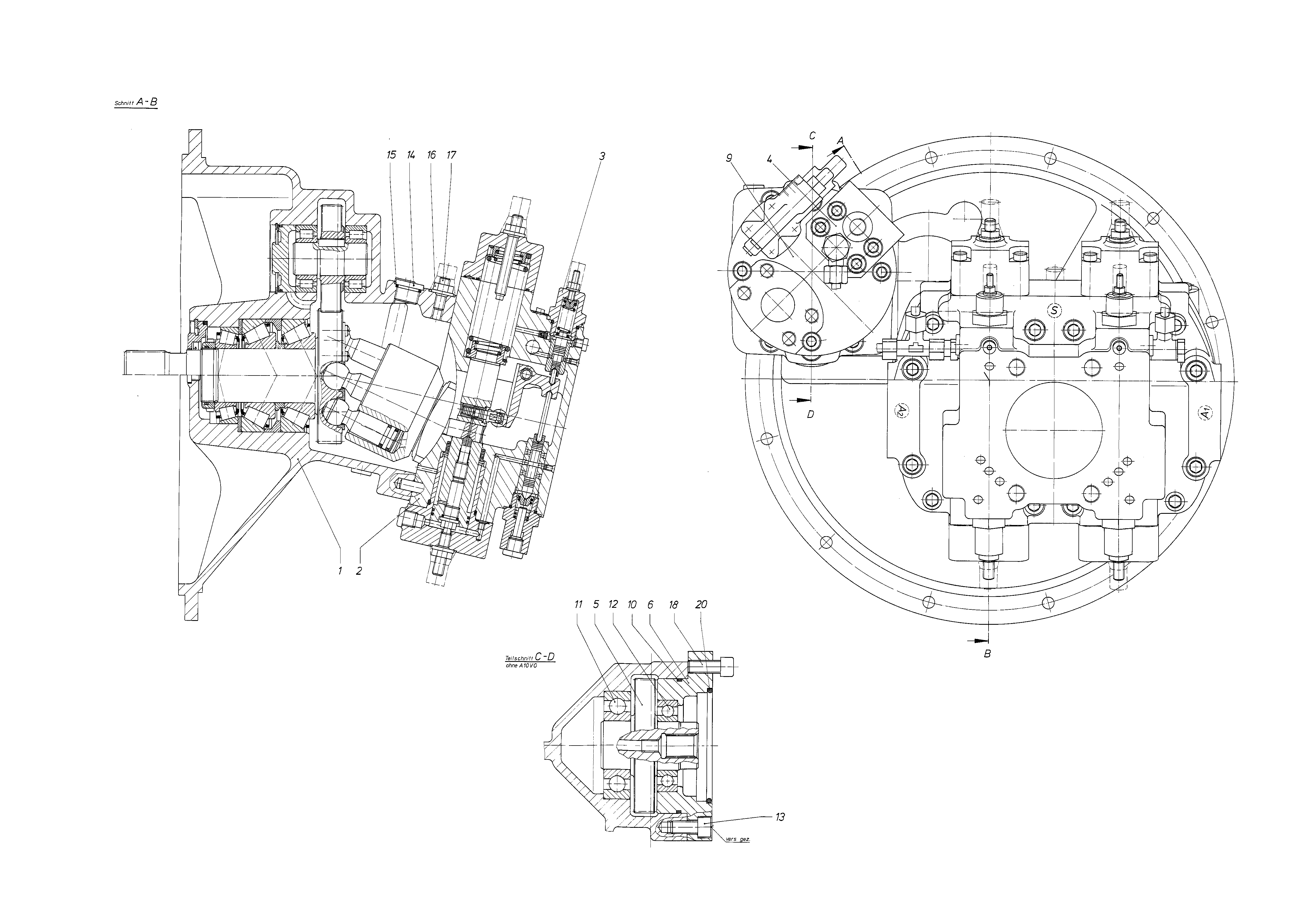

Unit · AXIAL-PISTON PUMP
A8VO80LR3Z-LR3Z/60R1-PZG05G*SV*R909423238
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LR3Z-LR3Z/60R1-PZG05G*SV*, material number R909423238.
- Number
- R909423238
- Type code
- A8VO80LR3Z-LR3Z/60R1-PZG05G*SV*
- Group
- A8VO 80
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418512 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 2 | R909423239 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909423240 | ADJUSTING PART Assembly parts list →L | 2 | |
| 4 | R909423241 | CONNECTING BLOCK Assembly parts list →L | 1 | |
| 5 | R902036650 | TOOTHED WHEEL | 1 | |
| 6 | R902099415 | FLANGE | 1 | |
| 9 | R909157466 | PUMP | 1 | |
| 10 | R909152647 | O-RINGD | 1 | |
| 11 | R909085478 | DEEP-GROOVE BALL BEARING | 1 | |
| 12 | R909150668 | DEEP-GROOVE BALL BEARING | 1 | |
| 13 | R909083086 | SOCKET HEAD CAP SCREW | 4 | |
| 14 | R909083225 | SCREW PLUG | 2 | |
| 15 | R909083758 | O-RINGD | 2 | |
| 16 | R909152707 | SEALING NUTD | 1 | |
| 17 | R909083500 | SETSCREW | 1 | |
| 18 | R909083087 | SOCKET HEAD CAP SCREW | 2 | |
| 20 | R909085365 | O-RINGD | 1 |
