Unit · AXIAL-PISTON MOTOR
A6VM28HD1/60W-PAB027BR909425076
Axial piston motor Bosch Rexroth series A6VM, type code A6VM28HD1/60W-PAB027B, material number R909425076. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909425076
- Type code
- A6VM28HD1/60W-PAB027B
- Group
- A6VM 28
- Edition
- 06/2020

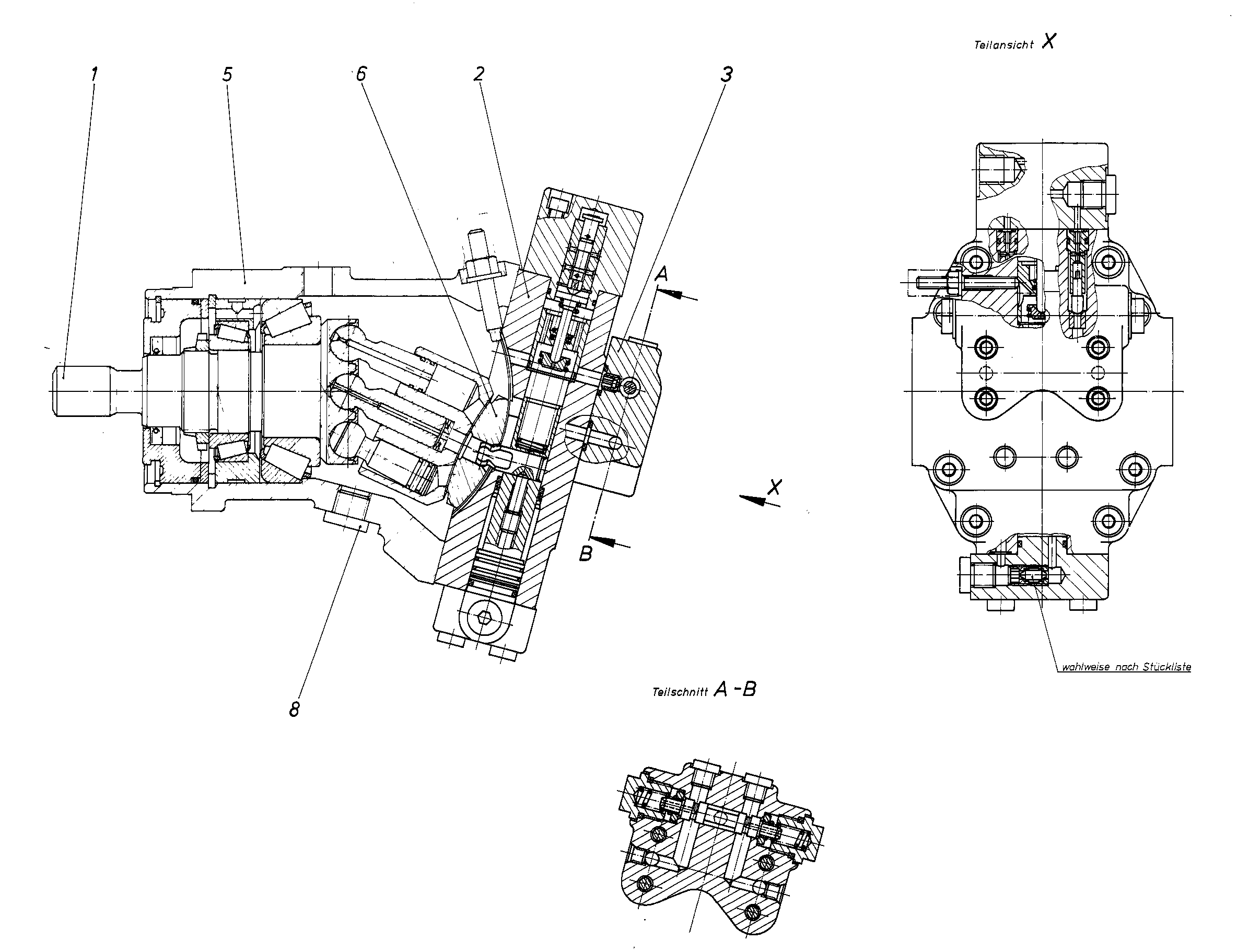

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909425017 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909425077 | CONTROL Assembly parts list →L | 1 | ||
| R909424066 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R909420492 | HOUSING | 1 | ||
| R909921785 | CONTROL LENS | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 28 | 28 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
