Unit · AXIAL-PISTON MOTOR
A2FM90/61W-VAB027R909425194
Axial piston motor Bosch Rexroth series A2FM, type code A2FM90/61W-VAB027, material number R909425194. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (A). Mounting flange: ISO 3019-2 4-hole (B). Working ports: SAE working ports A and B at side, opposite 7 (027).
- Number
- R909425194
- Type code
- A2FM90/61W-VAB027
- Group
- A2FM 90
- Edition
- 10/2020

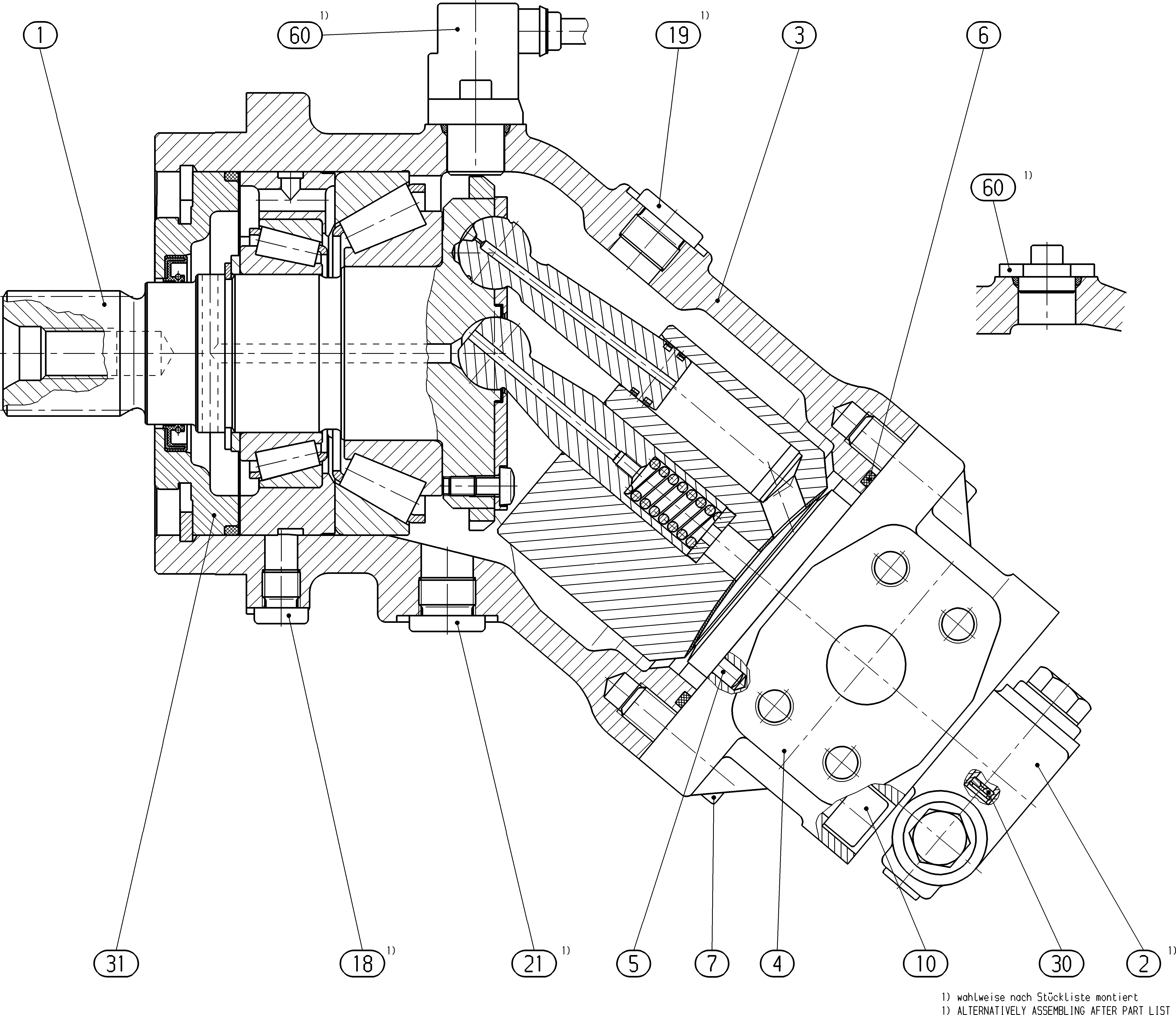

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902027400 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437556 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902042342 | HOUSING | 1 | ||
| R909425003 | CONNECTION PLATE | 1 | ||
| R909084163 | STRAIGHT PIN | 1 | ||
| R909086638 | O-RINGD | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083098 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUG | 1 | ||
| R902151660 | LOCKING RING Assembly parts list →L | 1 | ||
| 98 | R902002218 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | A |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working ports | SAE working ports A and B at side, opposite 7 | 027 |
