Unit · AXIAL-PISTON PUMP
A8VO80LR3CH-LR3CH/60R1-PZG05G*SV*R909427100
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LR3CH-LR3CH/60R1-PZG05G*SV*, material number R909427100.
- Number
- R909427100
- Type code
- A8VO80LR3CH-LR3CH/60R1-PZG05G*SV*
- Group
- A8VO 80
- Edition
- 06/2020

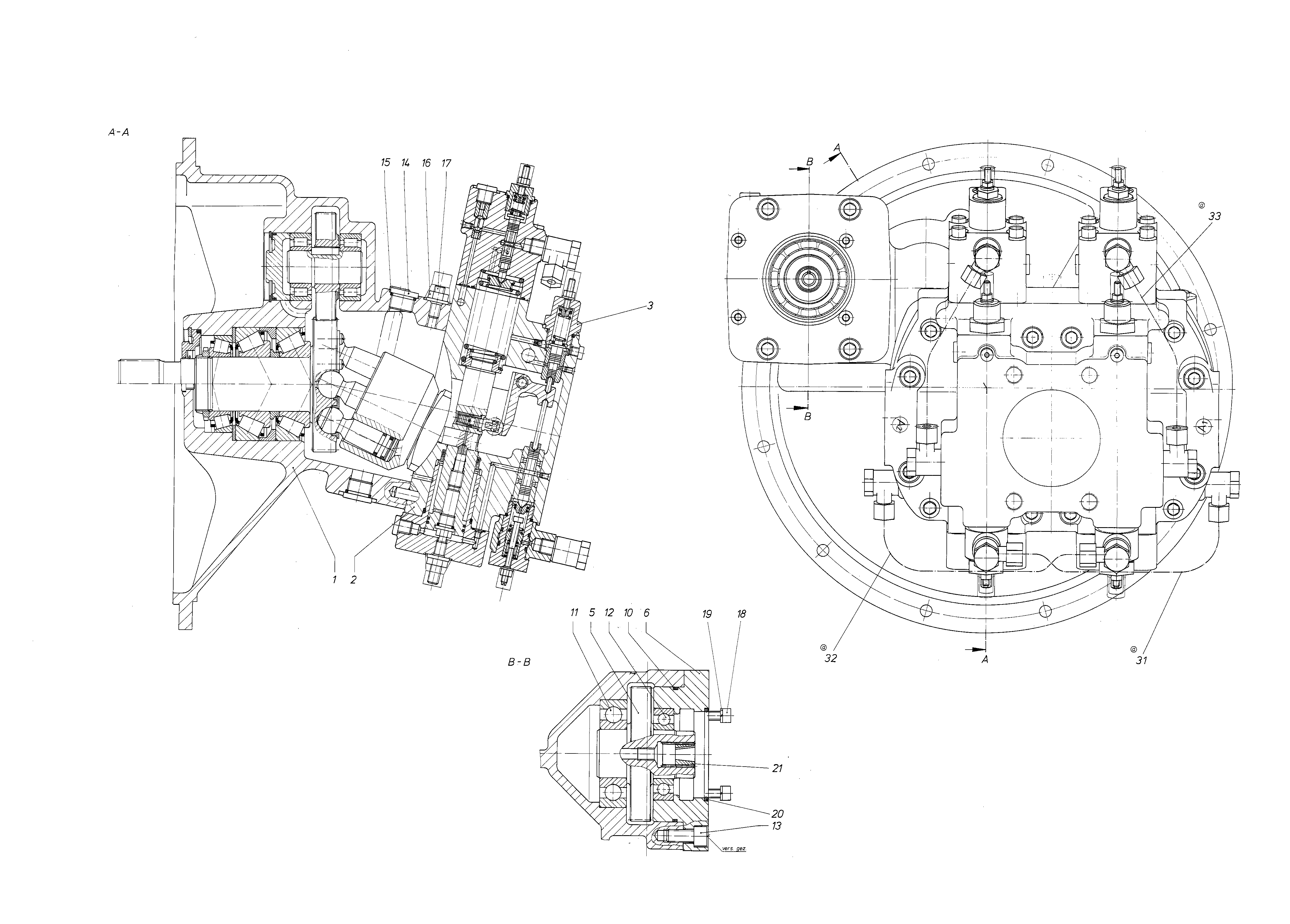

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418512 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909427135 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R909427138 | ADJUSTING PART Assembly parts list →L | 2 | |
| 5 | R909426332 | TOOTHED WHEEL | 1 | |
| 6 | R909421678 | FLANGE | 1 | |
| 10 | R909152647 | O-RINGD | 1 | |
| 11 | R913023203 | DEEP-GROOVE BALL BEARING | 1 | |
| 12 | R909150668 | DEEP-GROOVE BALL BEARING | 1 | |
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R909083225 | SCREW PLUG | 2 | |
| 15 | R909083758 | O-RINGD | 2 | |
| 16 | R909152426 | SEALING NUTD | 1 | |
| 17 | R909083500 | SETSCREW | 1 | |
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083250 | SPRING LOCK WASHER | 4 | ||
| R909086324 | O-RINGD | 1 | ||
| 21 | R909402724 | PINION | 1 | |
| R909442743 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909442744 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 33 | R909433181 | HYDRAULIC LINE Assembly parts list →L | 2 |
