Unit · AXIAL-PISTON MOTOR
A6VM107HA2T/60W-PZB020A-SR909427167
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107HA2T/60W-PZB020A-S, material number R909427167. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R909427167
- Type code
- A6VM107HA2T/60W-PZB020A-S
- Group
- A6VM 107
- Edition
- 06/2020

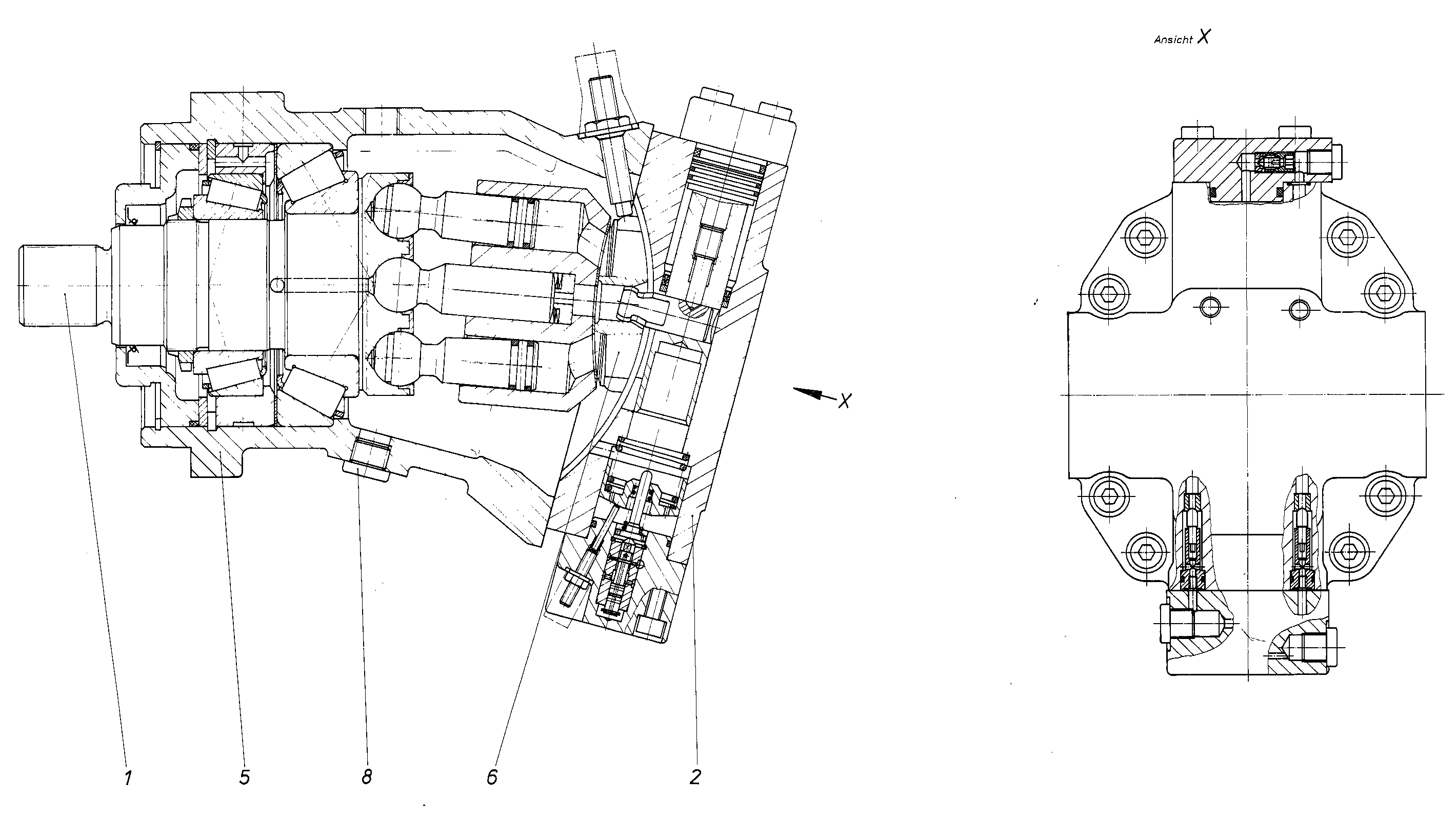

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416231 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909427168 | CONTROL Assembly parts list →L | 1 | ||
| R909412761 | HOUSING | 1 | ||
| R909921788 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
