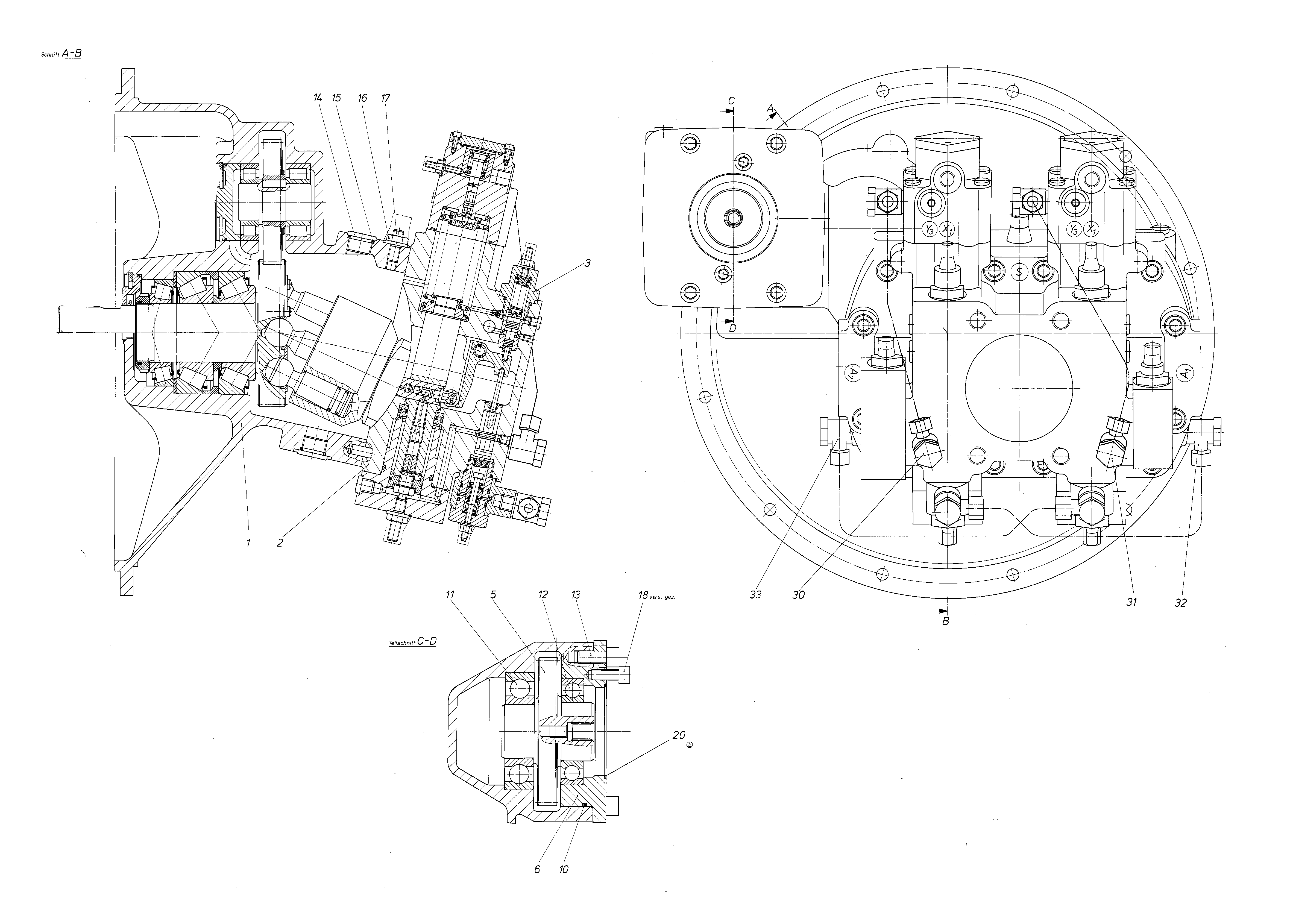

Unit · AXIAL-PISTON PUMP
A8VO107LR3DCH1/60R1-PZGO5K01*SV*R909427445
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107LR3DCH1/60R1-PZGO5K01*SV*, material number R909427445.
- Number
- R909427445
- Type code
- A8VO107LR3DCH1/60R1-PZGO5K01*SV*
- Group
- A8VO 107
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427909 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909427439 | CONTROL Assembly parts list →L | 1 | ||
| R909427436 | ADJUSTING PART Assembly parts list →L | 2 | ||
| R902119598 | TOOTHED WHEEL | 1 | ||
| R909426926 | FLANGE | 1 | ||
| R909085366 | O-RINGD | 1 | ||
| R909085479 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150669 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083225 | SCREW PLUG | 2 | ||
| R909083758 | O-RINGD | 2 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083500 | SETSCREW | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 2 | ||
| R913044774 | O-RINGD | 1 | ||
| R909433157 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909433158 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909433159 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909438762 | HYDRAULIC LINE Assembly parts list →L | 1 |
