Unit · AXIAL-PISTON PUMP

A8VO80SR3/60R1-PZG05ZOGR909427569

Axial piston pump Bosch Rexroth series A8VO, type code A8VO80SR3/60R1-PZG05ZO*G*, material number R909427569. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Valves: without valves (only for the version without auxiliary pump, U) (0).

Number: R909427569
Type code: A8VO80SR3/60R1-PZG05ZO*G*
Group: A8VO 80
Edition: 06/2020

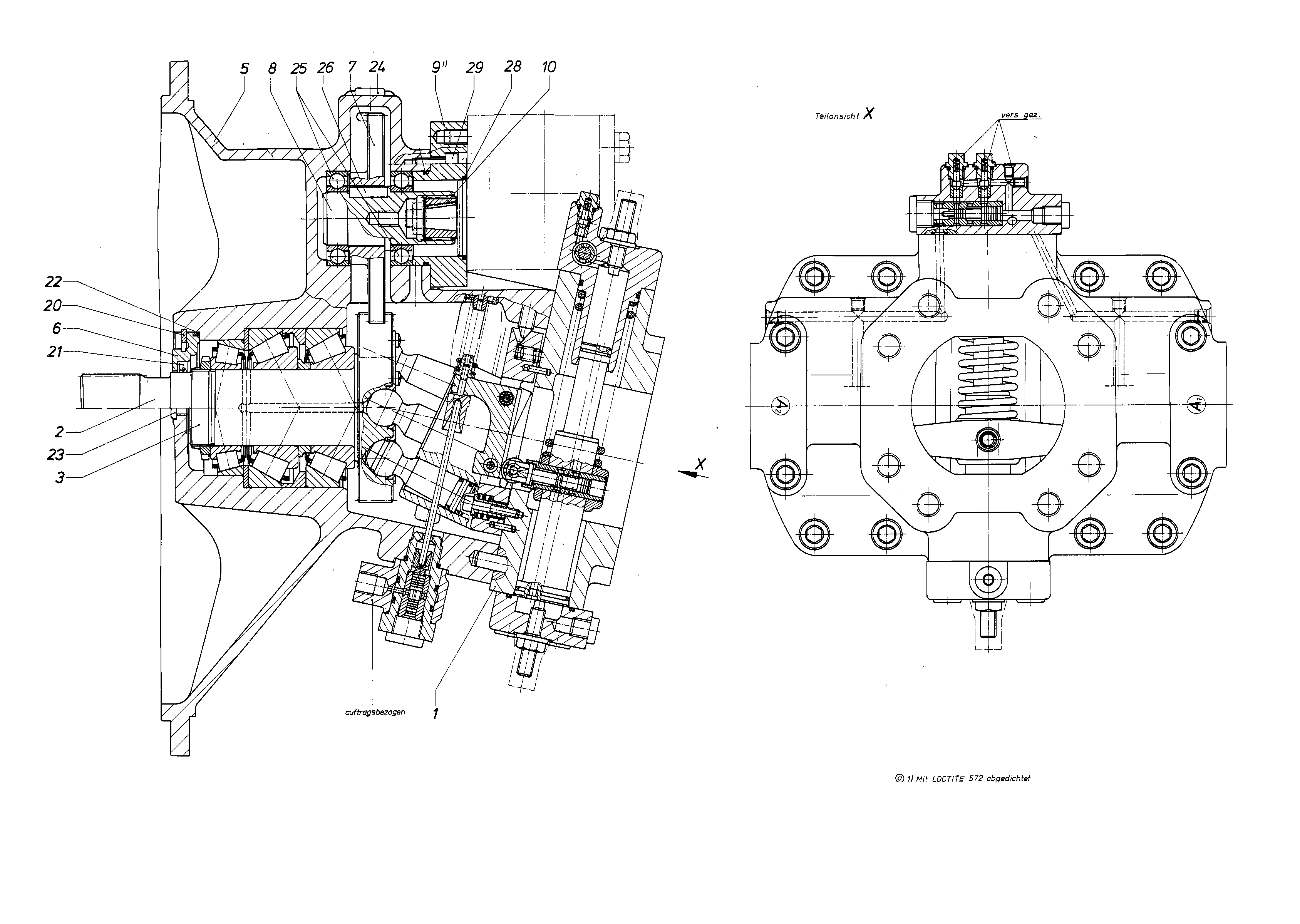

Pos.	Number	Name	Qty
1	R909423663	CONTROL Assembly parts list →L	1
2	R909411235	ROTARY GROUP Assembly parts list →L	1
	R909411234	ROTARY GROUP Assembly parts list →L	1
	R909430035	PUMP HOUSING	1
	R909410980	LOCKING RINGD	1
7	R909425596	TOOTHED WHEEL	1
8	R909422706	PLUG-IN SHAFT	1
9	R909420124	FLANGE	1
	R909402724	PINION	1
20	R909083417	RETAINING RING	1
21	R909831232	SHAFT SEALING RINGD	1
22	R909086948	O-RINGD	1
23	R909153364	SCREW PLUGD	1
24	R909151979	SCREW PLUGD	3
25	R909085444	DEEP-GROOVE BALL BEARING	2
26	R909083980	PARALLEL KEY	1
28	R909086804	O-RINGD	1
29	R909083036	SOCKET HEAD CAP SCREW	4

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar	A8V
Operating mode	Double pump (parallel design), open circuit	O
Swivel angle indicator	Without swivel angle indicator	0
Direction of rotation	Viewed on drive shaft, right	R
Transmission ratio (ndrive / nrotary groups)	i = 1	1
Valves	Without valves (only for the version without auxiliary pump, U)	0
