Unit · AXIAL-PISTON PUMP
A8VO80SR3DS/60R1-PZGO5K02*SV*R909427808
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80SR3DS/60R1-PZGO5K02*SV*, material number R909427808.
- Number
- R909427808
- Type code
- A8VO80SR3DS/60R1-PZGO5K02*SV*
- Group
- A8VO 80
- Edition
- 06/2020

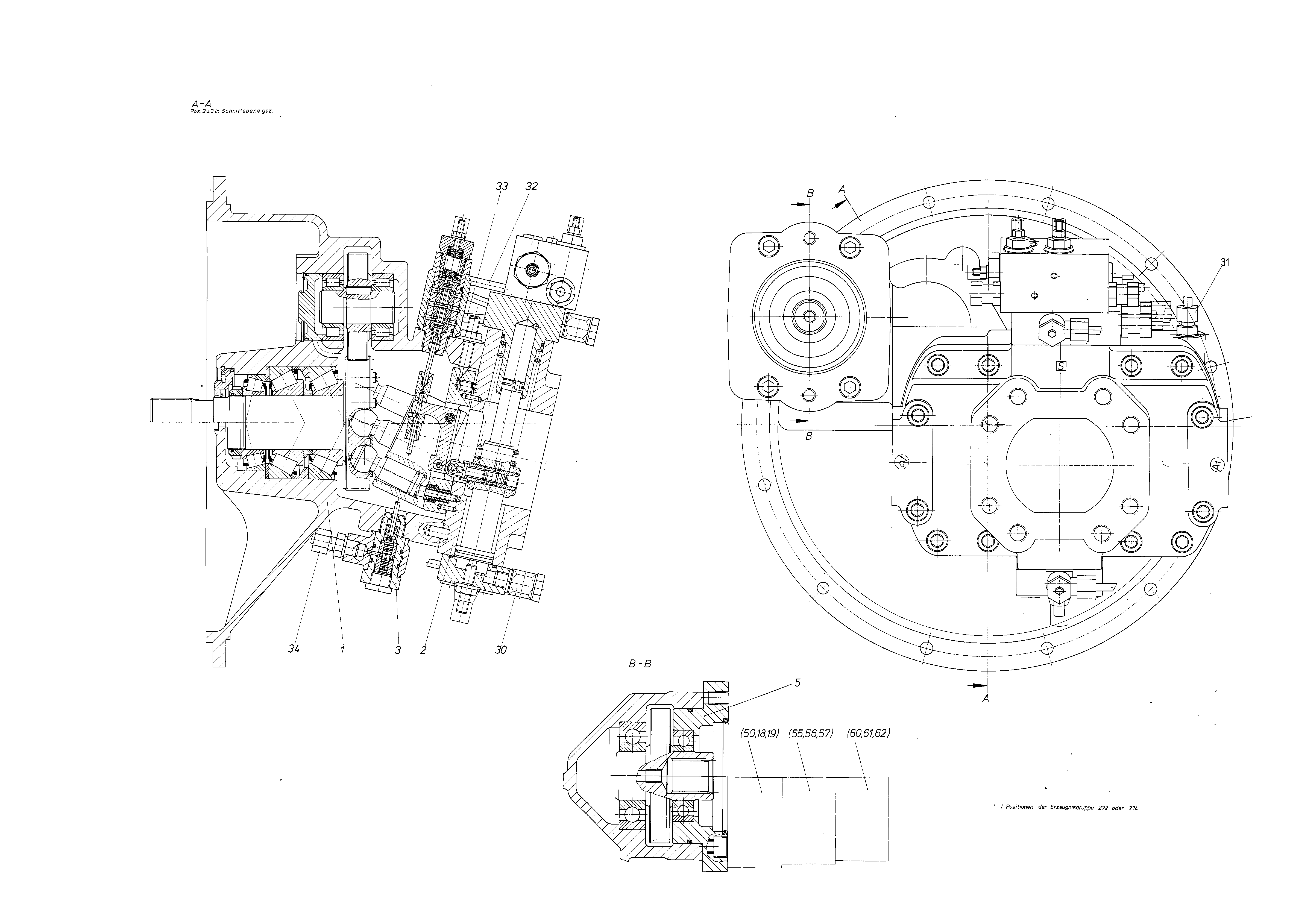

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418512 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 2 | R909422291 | CONTROL Assembly parts list →L | 1 | |
| R909427814 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 5 | R902036650 | TOOTHED WHEEL | 1 | |
| 6 | R902099415 | FLANGE | 1 | |
| 10 | R909152647 | O-RINGD | 1 | |
| 11 | R913023203 | DEEP-GROOVE BALL BEARING | 1 | |
| 12 | R909150668 | DEEP-GROOVE BALL BEARING | 1 | |
| 13 | R909083086 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R909085365 | O-RINGD | 1 | |
| 18 | R909083090 | SOCKET HEAD CAP SCREW | 2 | |
| 19 | R909055895 | WASHER | 2 | |
| R909423304 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 31 | R909423305 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| 32 | R909423306 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| 33 | R909423307 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909423308 | HYDRAULIC LINE Assembly parts list →L | 1 |
