Unit · AXIAL-PISTON PUMP
A11VG50DA2D3/11R-PSC02F002SR909427890
Axial piston pump Bosch Rexroth series A11VO, type code A11VG50DA2D3/11R-PSC02F002S, material number R909427890. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C).
- Number
- R909427890
- Type code
- A11VG50DA2D3/11R-PSC02F002S
- Group
- A11VG 50
- Edition
- 06/2020

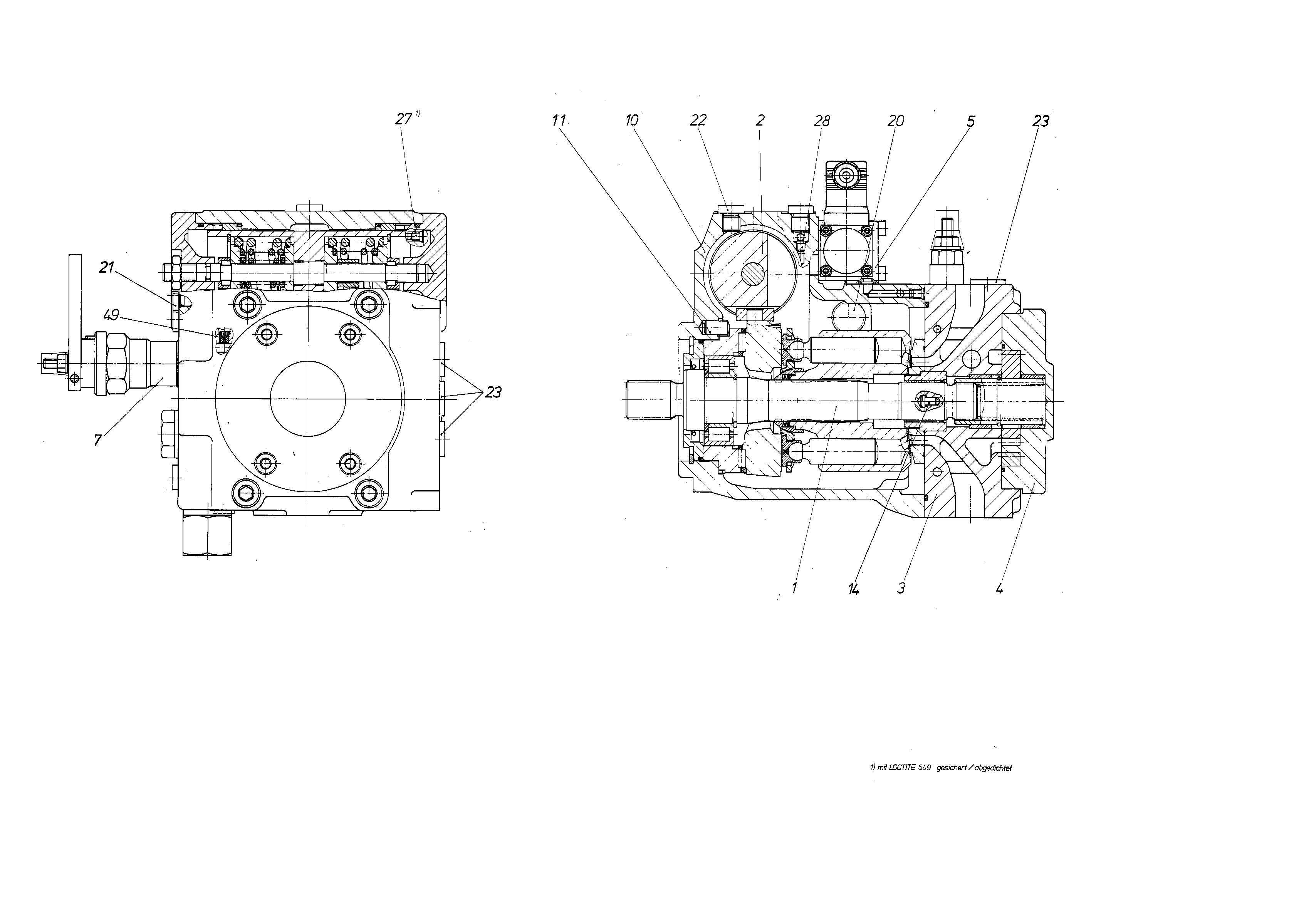

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909613556 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442404 | CONTROL Assembly parts list →L | 1 | ||
| R909609715 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606688 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 5 | R909438123 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| 7 | R909606619 | CONTROL CARTRIDGE Assembly parts list →L | 1 | |
| 10 | R909440579 | HOUSING | 1 | |
| 11 | R909430641 | POITIONING PIN | 1 | |
| 14 | R909405732 | POITIONING PIN | 1 | |
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 22 | R909151692 | SCREW PLUGD | 4 | |
| R909153815 | SCREW PLUGD | 4 | ||
| 27 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 49 | R909156497 | NOZZLE | 1 | |
| 54 | R909156492 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
