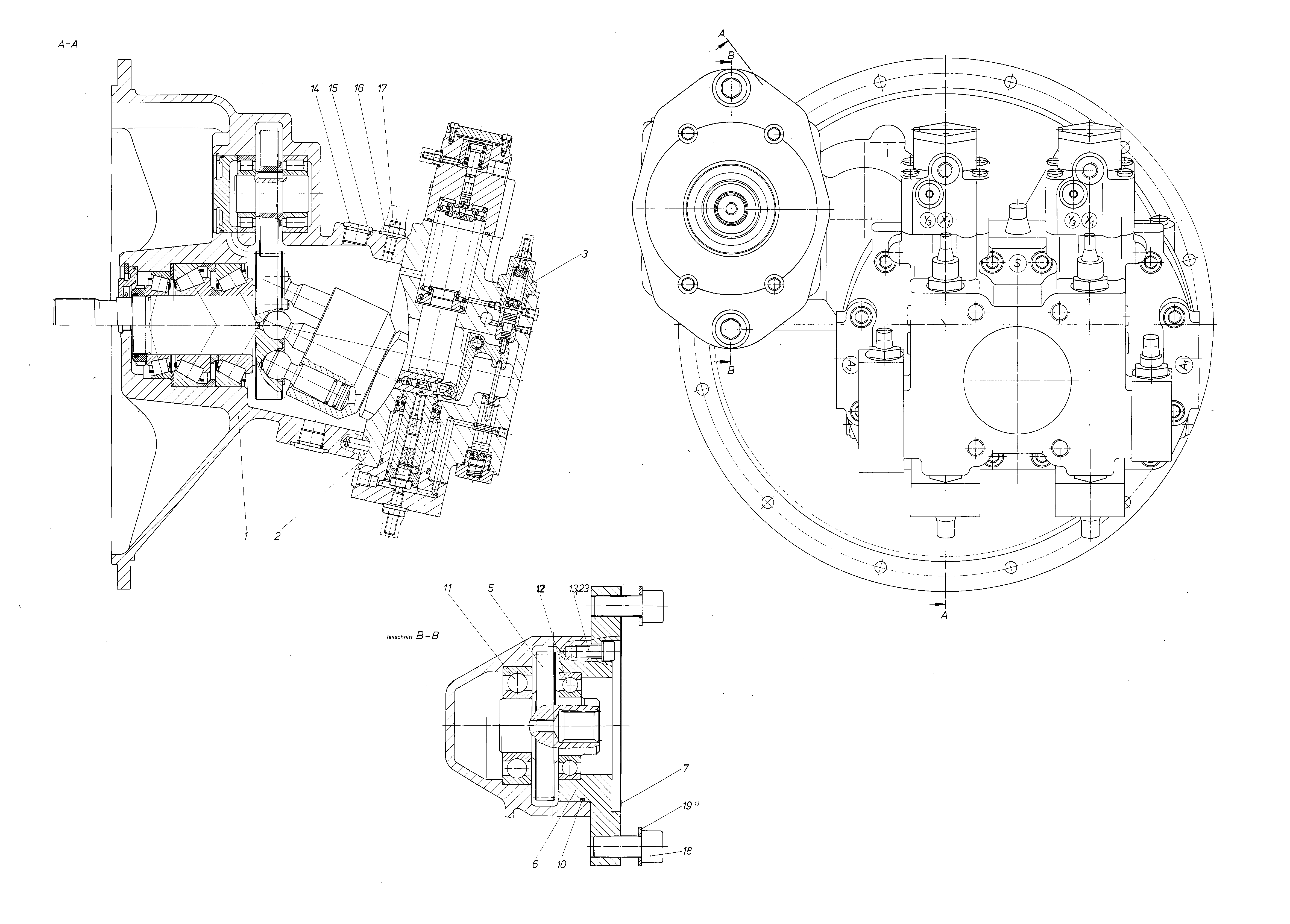

Unit · AXIAL-PISTON PUMP
A8VO107LR3DH1/60R1-PZG05K42*SV*R909428079
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107LR3DH1/60R1-PZG05K42*SV*, material number R909428079.
- Number
- R909428079
- Type code
- A8VO107LR3DH1/60R1-PZG05K42*SV*
- Group
- A8VO 107
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427909 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909428383 | CONTROL Assembly parts list →L | 1 | ||
| R909429322 | ADJUSTING PART Assembly parts list →L | 2 | ||
| R909426012 | TOOTHED WHEEL | 1 | ||
| R909426011 | FLANGE | 1 | ||
| R909435620 | SEAL | 1 | ||
| R909085366 | O-RINGD | 1 | ||
| R909085479 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150669 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083204 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083225 | SCREW PLUG | 2 | ||
| R909083758 | O-RINGD | 2 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083500 | SETSCREW | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084306 | SEAL RINGD | 4 |
