Unit · AXIAL-PISTON PUMP
A8VO80SRH1/60R1-PZG05K46R909428191
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80SRH1/60R1-PZG05K46, material number R909428191.
- Number
- R909428191
- Type code
- A8VO80SRH1/60R1-PZG05K46
- Group
- A8VO 80
- Edition
- 06/2020

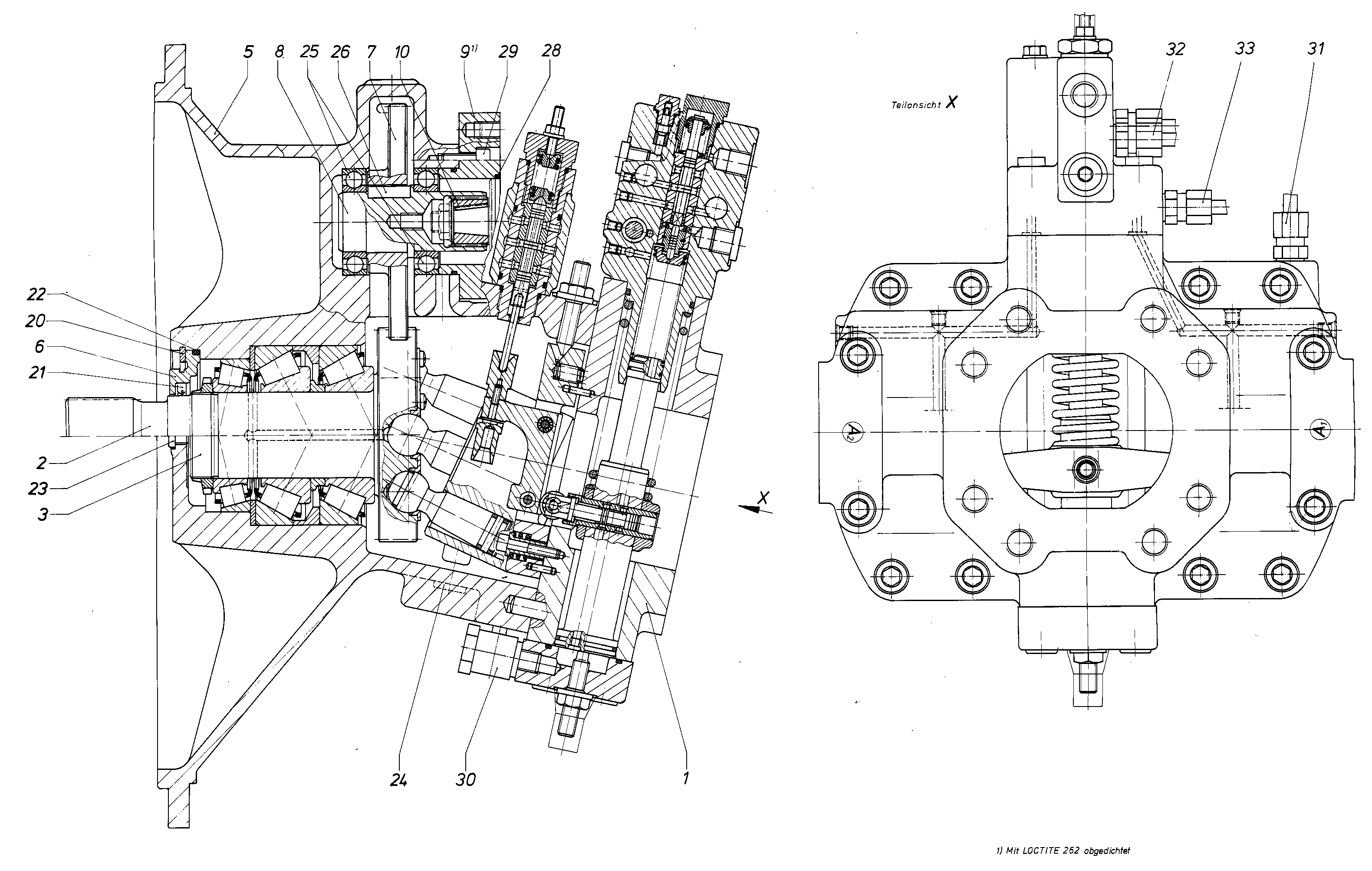

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428103 | CONTROL Assembly parts list →L | 1 | ||
| R909411235 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411234 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909430595 | PUMP HOUSING | 1 | ||
| R909410980 | LOCKING RINGD | 1 | ||
| R909425596 | TOOTHED WHEEL | 1 | ||
| R909422706 | PLUG-IN SHAFT | 1 | ||
| R909420124 | FLANGE | 1 | ||
| R909402724 | PINION | 1 | ||
| R909083417 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RINGD | 1 | ||
| R909086948 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909085444 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909083980 | PARALLEL KEY | 1 | ||
| R909086804 | O-RINGD | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 4 | ||
| R909441879 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909441880 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909423350 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909423351 | HYDRAULIC LINE Assembly parts list →L | 1 |
