Unit · AXIAL-PISTON MOTOR
AA6VM107HA1T/60W-PSD080A-SR909428192
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM107HA1T/60W-PSD080A-S, material number R909428192. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R909428192
- Type code
- AA6VM107HA1T/60W-PSD080A-S
- Group
- A6VM 107
- Edition
- 06/2020

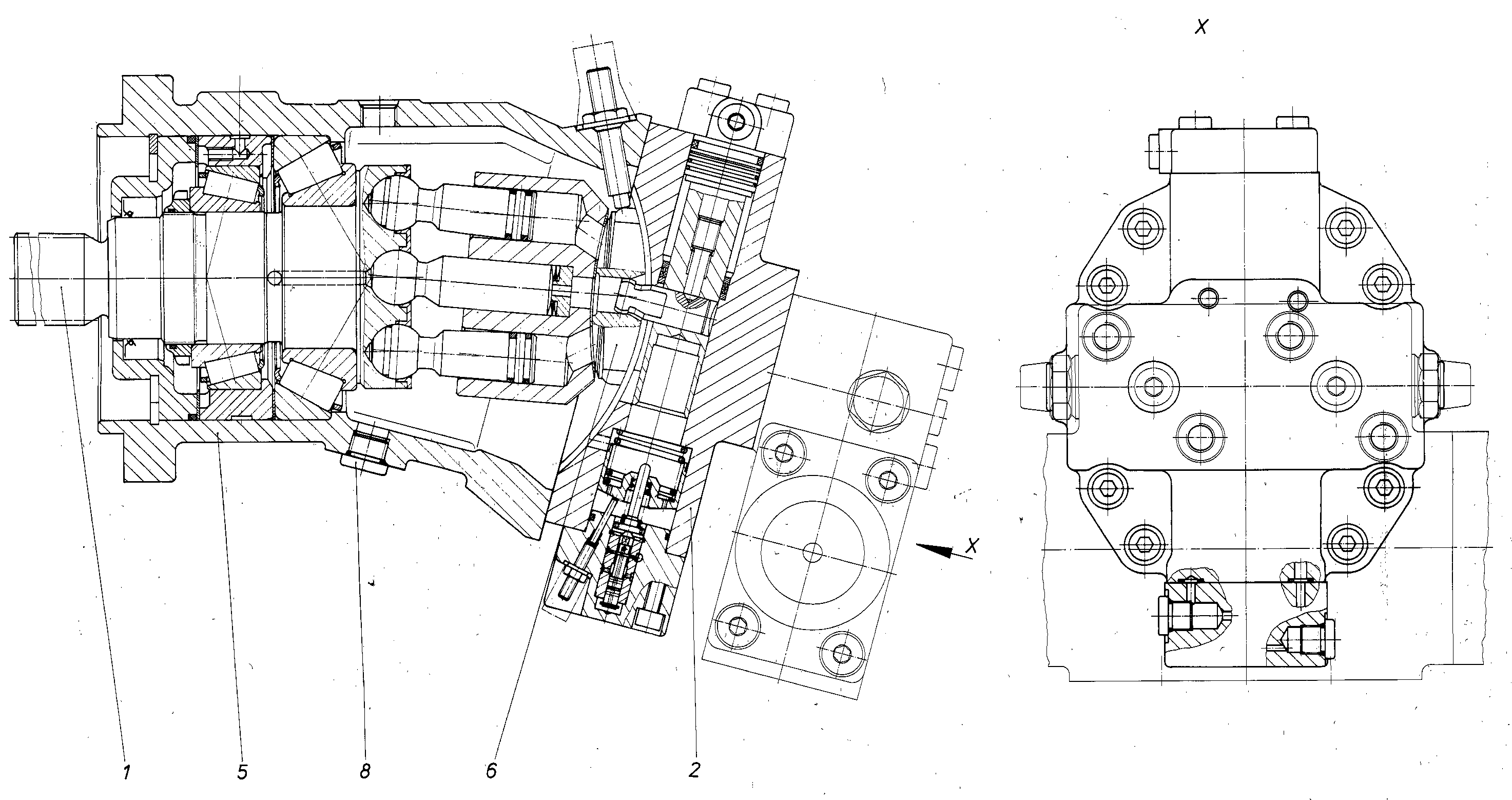

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416228 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909428193 | CONTROL Assembly parts list →L | 1 | ||
| R909416519 | HOUSING | 1 | ||
| R909921788 | CONTROL LENS | 1 | ||
| R909153339 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
