Unit · AXIAL-PISTON PUMP
A8VO107SR/60R1-PZG05K46R909428196
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107SR/60R1-PZG05K46, material number R909428196.
- Number
- R909428196
- Type code
- A8VO107SR/60R1-PZG05K46
- Group
- A8VO 107
- Edition
- 06/2020

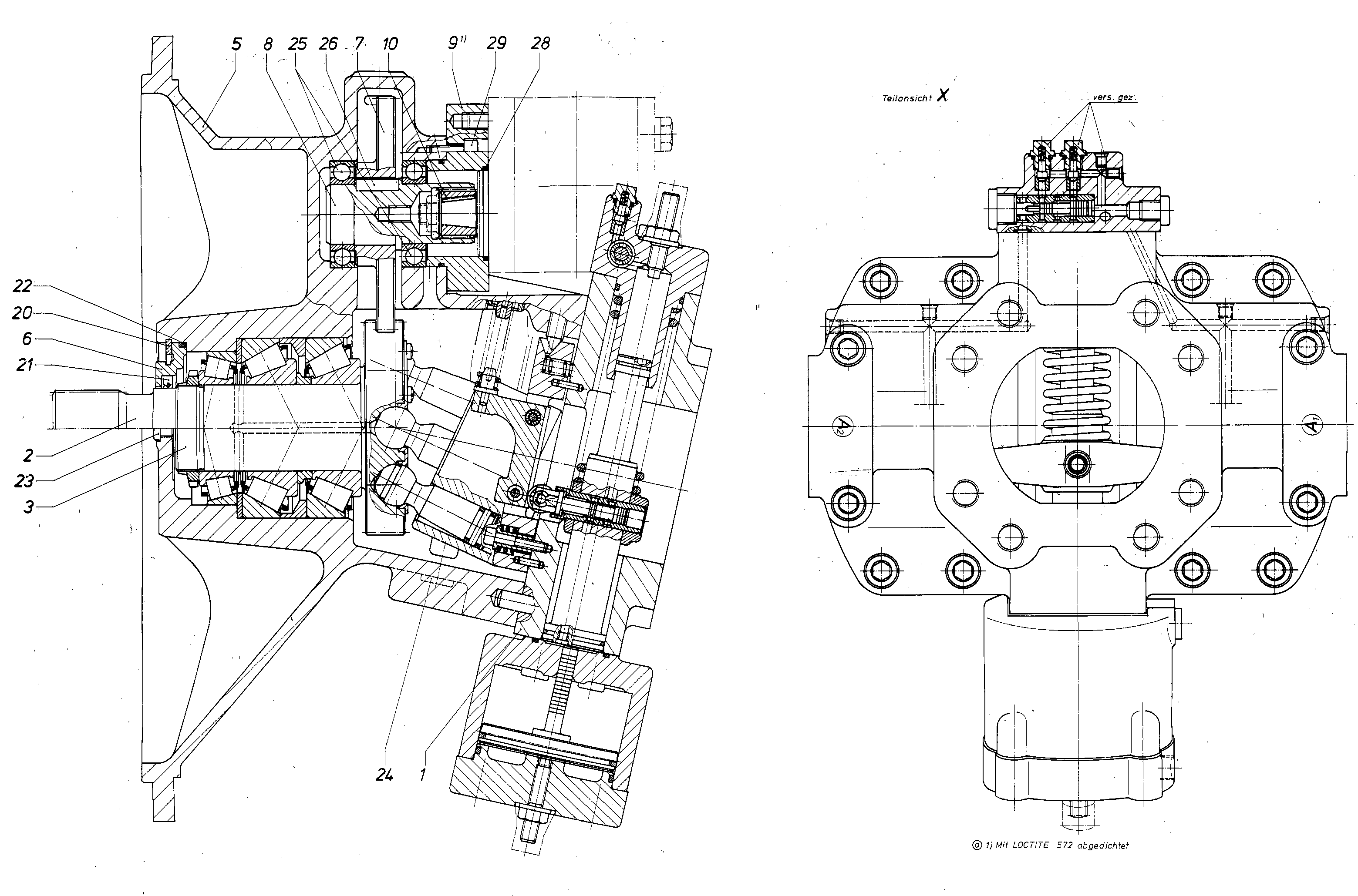

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428195 | CONTROL Assembly parts list →L | 1 | ||
| R909411736 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411737 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909413292 | PUMP HOUSING | 1 | ||
| R909652033 | LOCKING RING | 1 | ||
| R909425597 | TOOTHED WHEEL | 1 | ||
| R909422706 | PLUG-IN SHAFT | 1 | ||
| R909420433 | FLANGE | 1 | ||
| R909402724 | PINION | 1 | ||
| R909083418 | RETAINING RING | 1 | ||
| R909831233 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909084426 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 4 | ||
| R909085444 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909083980 | PARALLEL KEY | 1 | ||
| R909086804 | O-RINGD | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 4 |
