Unit · AXIAL-PISTON PUMP
A11VG50HW+A11VG50EZ1R909428245
Axial piston pump Bosch Rexroth series A11VO, type code A11VG50HW+A11VG50EZ1, material number R909428245. Nominal size: NG 50. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V).
- Number
- R909428245
- Type code
- A11VG50HW+A11VG50EZ1
- Group
- A11VG 50
- Edition
- 06/2020

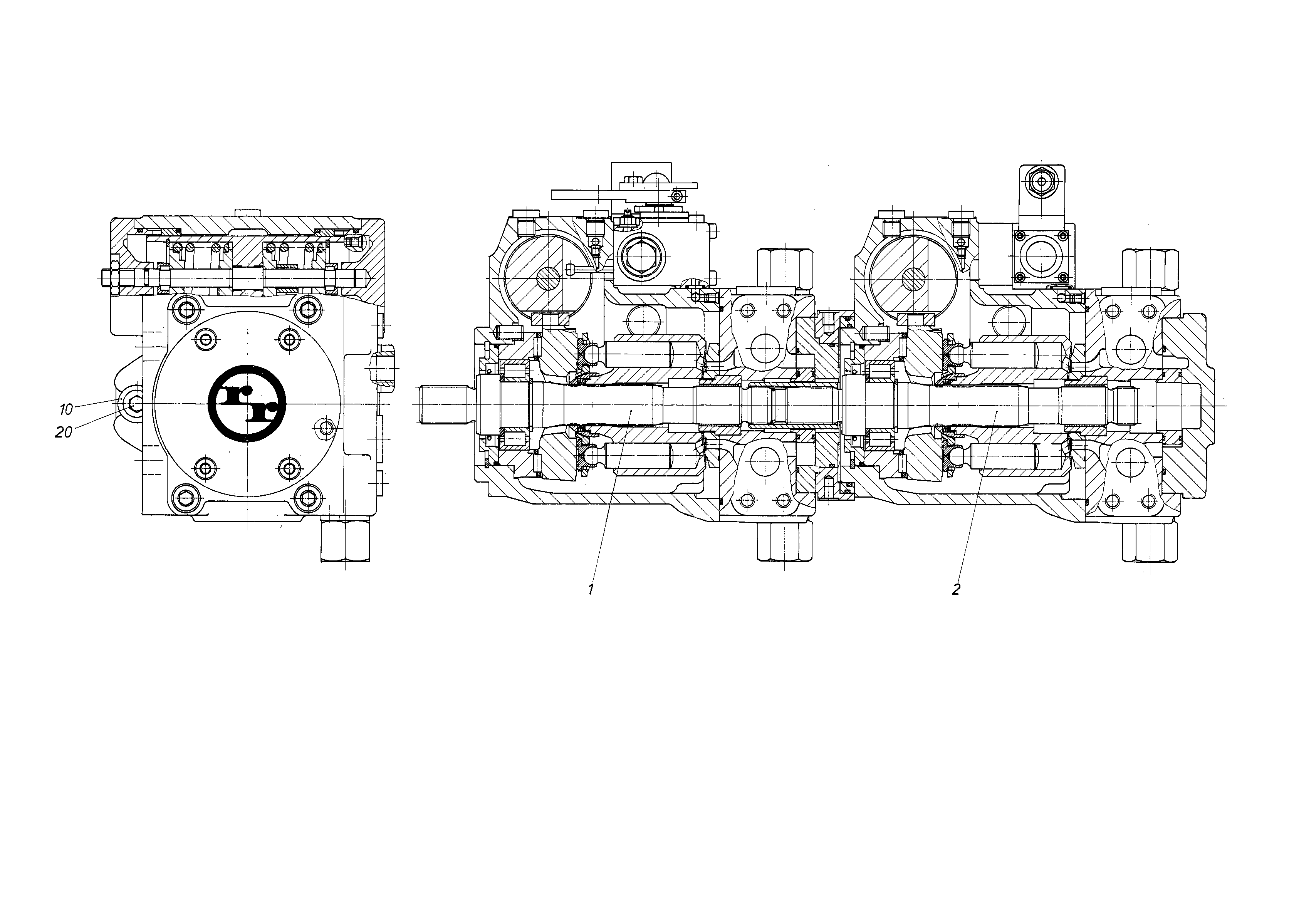

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428255 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 2 | R909428256 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R909083089 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 | ||
| 98 | R902258511 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 50 | 50 |
