Unit · AXIAL-PISTON PUMP
A8VO107/60R1-SO*E*R909428895
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107/60R1-SO*E*, material number R909428895. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Standard / special version: special version (S).
- Number
- R909428895
- Type code
- A8VO107/60R1-SO*E*
- Group
- A8VO 107
- Edition
- 06/2020

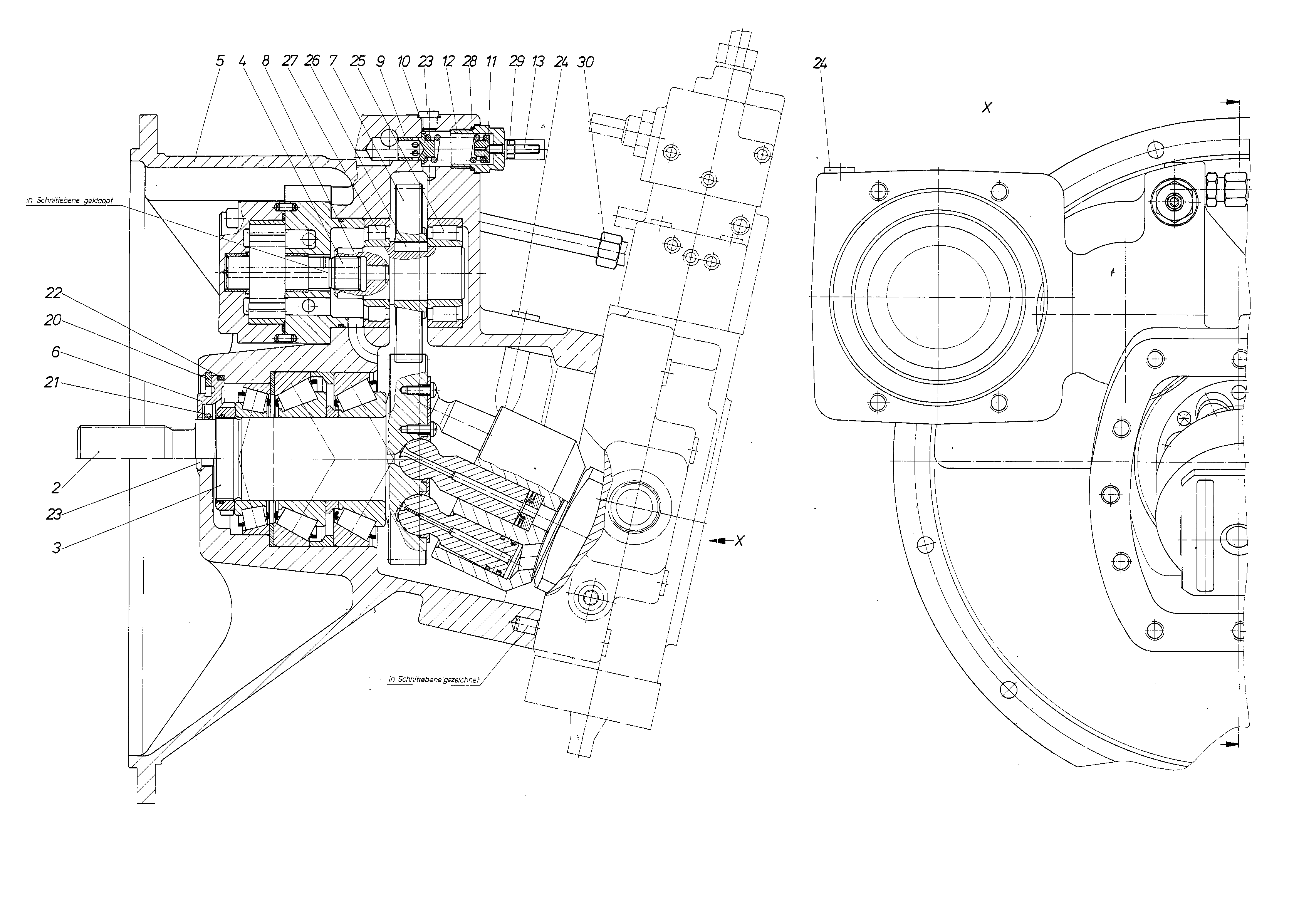

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R909428185 | ROTARY GROUP Assembly parts list →L | 1 | |
| 3 | R909428522 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909428897 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 5 | R909431252 | PUMP HOUSING | 1 | |
| 6 | R909652033 | LOCKING RING | 1 | |
| 7 | R902110319 | TOOTHED WHEEL | 1 | |
| 8 | R909430371 | PLUG-IN SHAFT | 1 | |
| 9 | R909426804 | VALVE SPOOL | 1 | |
| 10 | R909430766 | COMPRESSION SPRING | 1 | |
| 11 | R909430767 | SPRING DISK | 1 | |
| 12 | R909413930 | SCREW PLUG | 1 | |
| 13 | R909425219 | SETSCREW | 1 | |
| R909083418 | RETAINING RING | 1 | ||
| 21 | R909831233 | ROTARY SHAFT LIP SEALD | 1 | |
| R909084426 | O-RINGD | 1 | ||
| 23 | R909153364 | SCREW PLUGD | 1 | |
| 24 | R909151979 | SCREW PLUGD | 3 | |
| 25 | R909156923 | CYL. ROLLER BEARING | 1 | |
| 26 | R909157352 | PARALLEL KEY | 1 | |
| 27 | R909153323 | CYL. ROLLER BEARING | 1 | |
| 28 | R909083761 | O-RINGD | 1 | |
| 29 | R909152425 | SEALING NUTD | 1 | |
| 30 | R909428898 | HYDRAULIC LINE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Standard / special version | Special version | S |
