Unit · AXIAL-PISTON PUMP
A4V56HW1.0L0X1O1O-SR909428990
Axial piston pump Bosch Rexroth series A4V, type code A4V56HW1.0L0X1O1O-S, material number R909428990.
- Number
- R909428990
- Type code
- A4V56HW1.0L0X1O1O-S
- Group
- A4V 56
- Edition
- 07/2020

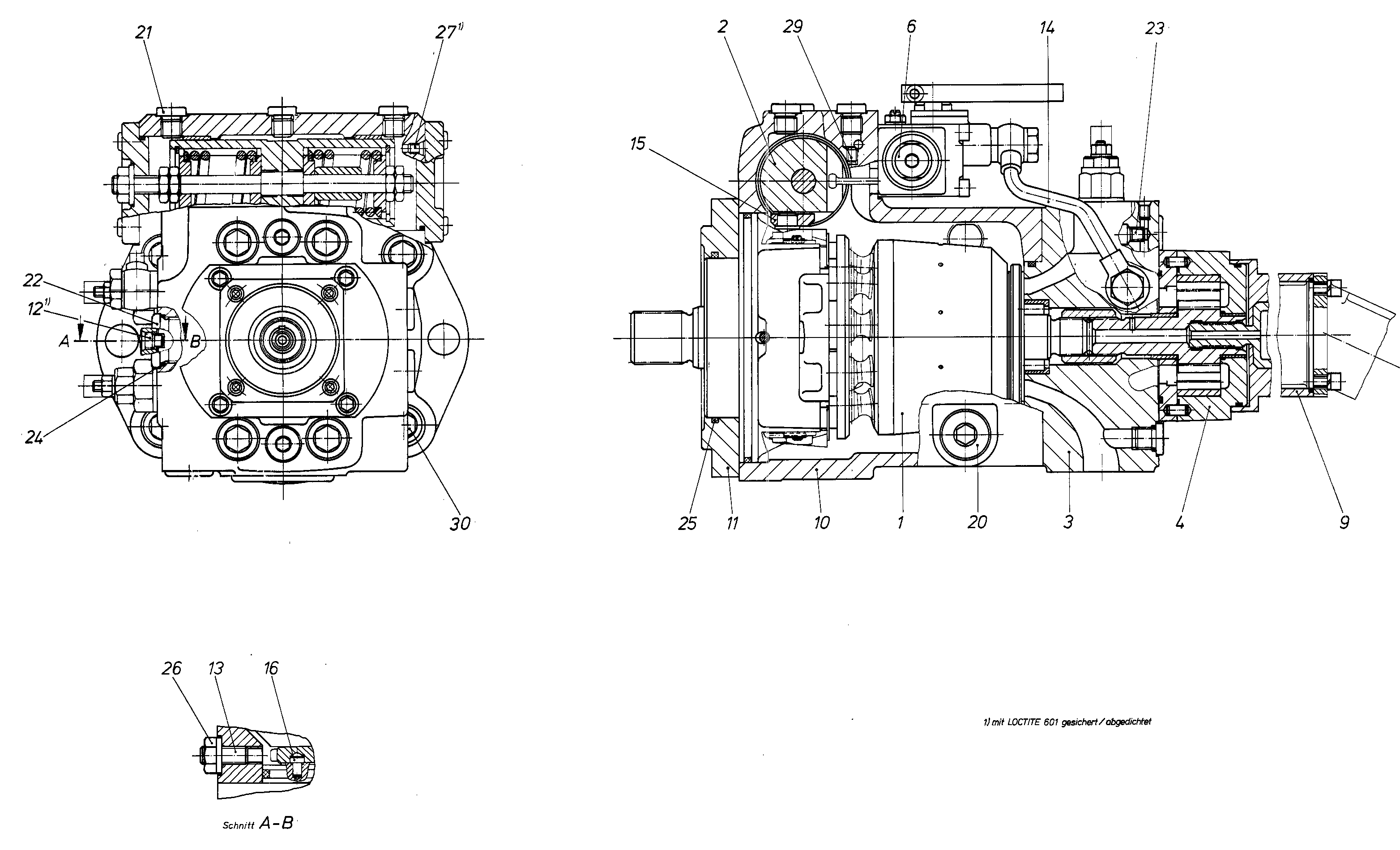

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909410721 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909414468 | CONTROL Assembly parts list →L | 1 | ||
| R909078290 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909404646 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909071574 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909428681 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909405945 | HOUSING | 1 | ||
| R909074129 | FLANGE | 1 | ||
| R909414043 | ANTI-TWIST LOCK | 1 | ||
| R909414044 | ANTI-TWIST LOCK | 1 | ||
| R909154981 | SETSCREW | 1 | ||
| R909400345 | PIPE Assembly parts list →L | 1 | ||
| R909425992 | SLIDER | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083825 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156492 | NOZZLE | 2 | ||
| R909153817 | SOCKET HEAD CAP SCREW | 4 |
