Unit · AXIAL-PISTON MOTOR
A6VM107EZ1/60W-PAB010BR909429222
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107EZ1/60W-PAB010B, material number R909429222. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EZ1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909429222
- Type code
- A6VM107EZ1/60W-PAB010B
- Group
- A6VM 107
- Edition
- 06/2020

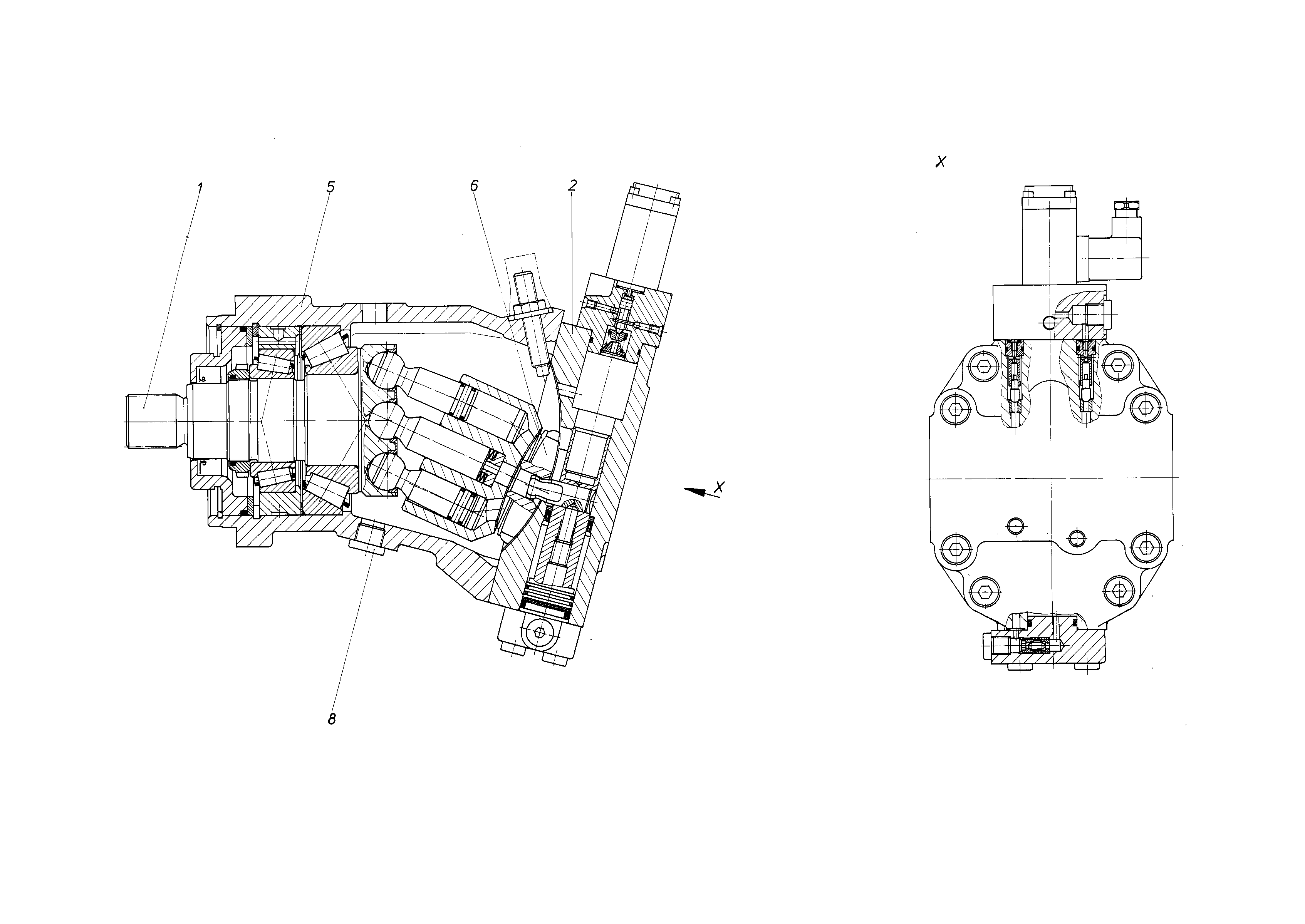

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909420627 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909429223 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909412761 | HOUSING | 1 | |
| 6 | R909921788 | CONTROL LENS | 1 | |
| 8 | R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Two-point control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EZ1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
