Unit · AXIAL-PISTON PUMP
A8VO80LR3C/60R1-PZGO5NOO*G*R909429547
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LR3C/60R1-PZGO5NOO*G*, material number R909429547. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Service line ports: SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) (5).
- Number
- R909429547
- Type code
- A8VO80LR3C/60R1-PZGO5NOO*G*
- Group
- A8VO 80
- Edition
- 06/2020

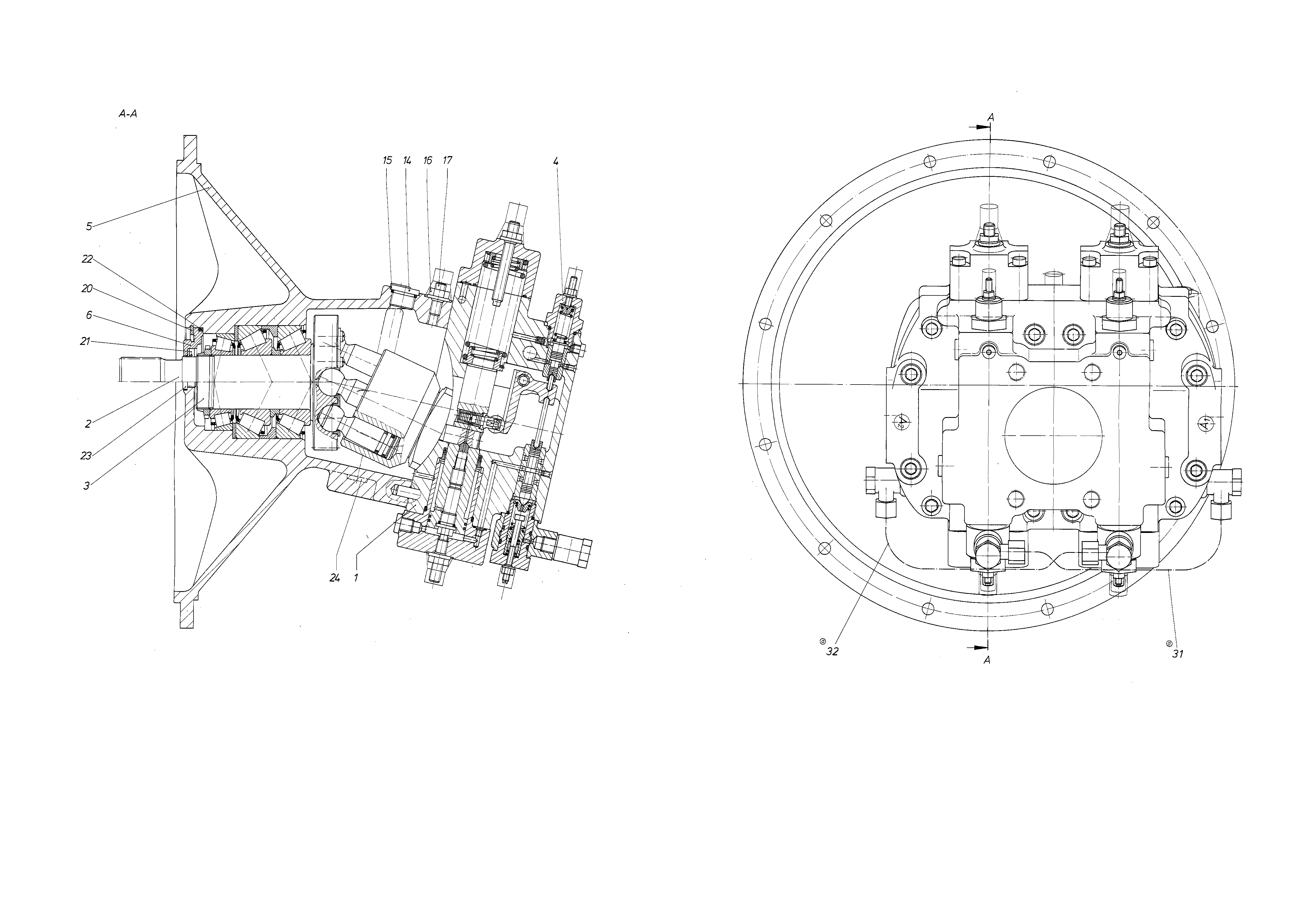

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429546 | CONTROL Assembly parts list →L | 1 | ||
| 2 | R909411235 | ROTARY GROUP Assembly parts list →L | 1 | |
| 3 | R909411234 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909418659 | ADJUSTING PART Assembly parts list →L | 2 | ||
| 5 | R909431810 | PUMP HOUSING | 1 | |
| 6 | R909410980 | LOCKING RINGD | 1 | |
| 14 | R909083225 | SCREW PLUG | 1 | |
| 15 | R909083758 | O-RINGD | 1 | |
| 16 | R909152426 | SEALING NUTD | 1 | |
| 17 | R909083500 | SETSCREW | 1 | |
| R909083417 | RETAINING RING | 1 | ||
| 21 | R909831232 | SHAFT SEALING RINGD | 1 | |
| R909086948 | O-RINGD | 1 | ||
| 23 | R909153364 | SCREW PLUGD | 1 | |
| 24 | R909151979 | SCREW PLUGD | 2 | |
| R909442743 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909442744 | HYDRAULIC LINE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Service line ports | SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) | 5 |
