Unit · CONTROL PART
STEUERTEILF.A6V80HA1U/6044122.R909433607
Control Bosch Rexroth series A6V, type code STEUERTEILF.A6V80HA1U/6044122., material number R909433607.
- Number
- R909433607
- Type code
- STEUERTEILF.A6V80HA1U/6044122.
- Group
- A6V 80
- Edition
- 05/2020

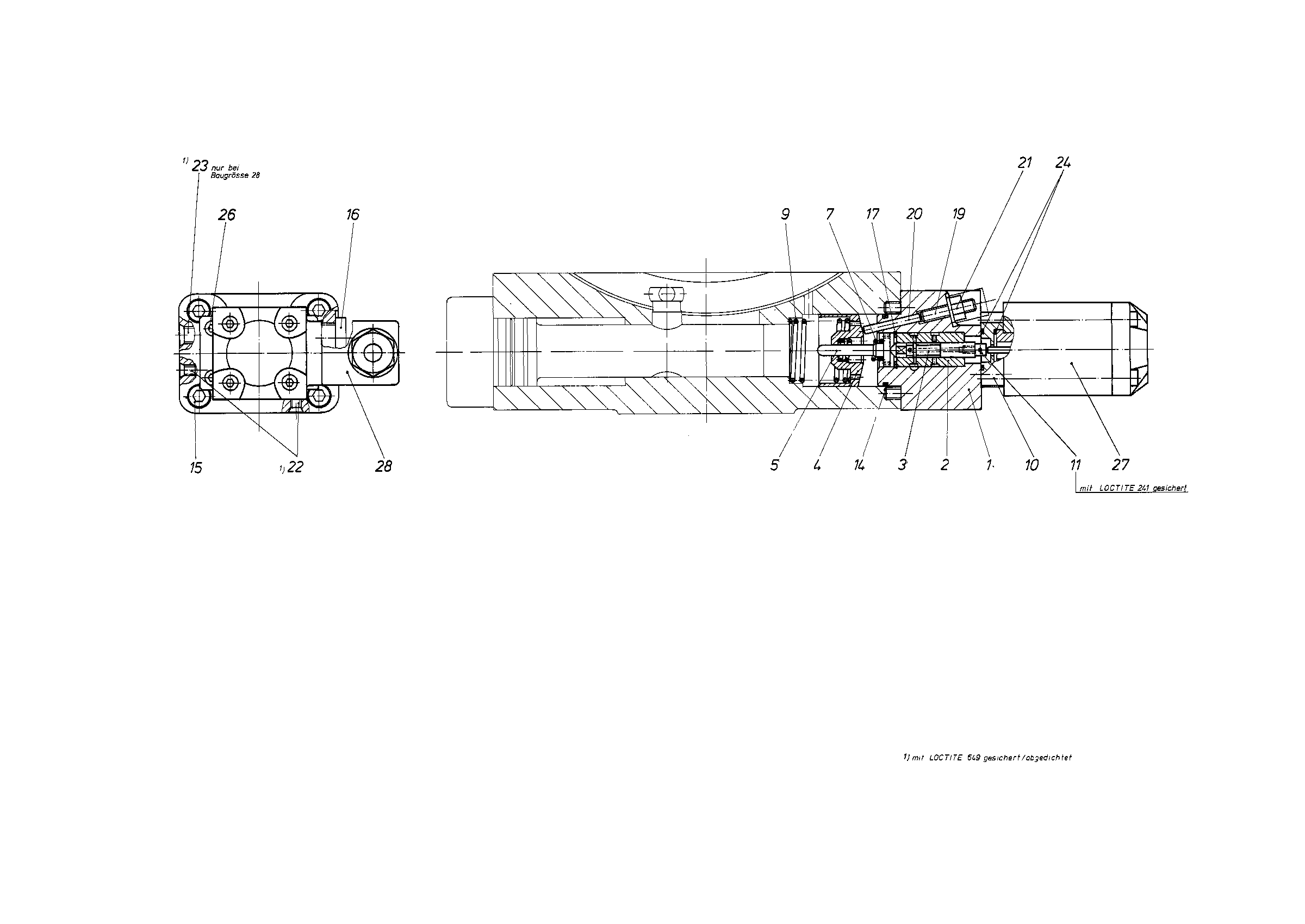

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440717 | CONTROL HOUSING | 1 | ||
| 2 | R909432662 | CONTROL SLEEVE | 1 | |
| 3 | R909440703 | CONTROL PISTON | 1 | |
| R909651118 | ADJUSTING BUSHING | 1 | ||
| 5 | R909921339 | SPRING DISK | 1 | |
| R909430757 | COMPRESSION SPRING | 1 | ||
| 9 | R909651116 | COMPRESSION SPRING | 1 | |
| R909418506 | INTERMEDIATE PLATE | 1 | ||
| 11 | R909440702 | STOP SCREW | 1 | |
| 14 | R902600641 | O-RINGD | 1 | |
| R909083025 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| R909152427 | SETSCREW | 1 | ||
| R909087166 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083734 | O-RINGD | 2 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| R909428263 | SWITCHING SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 |
