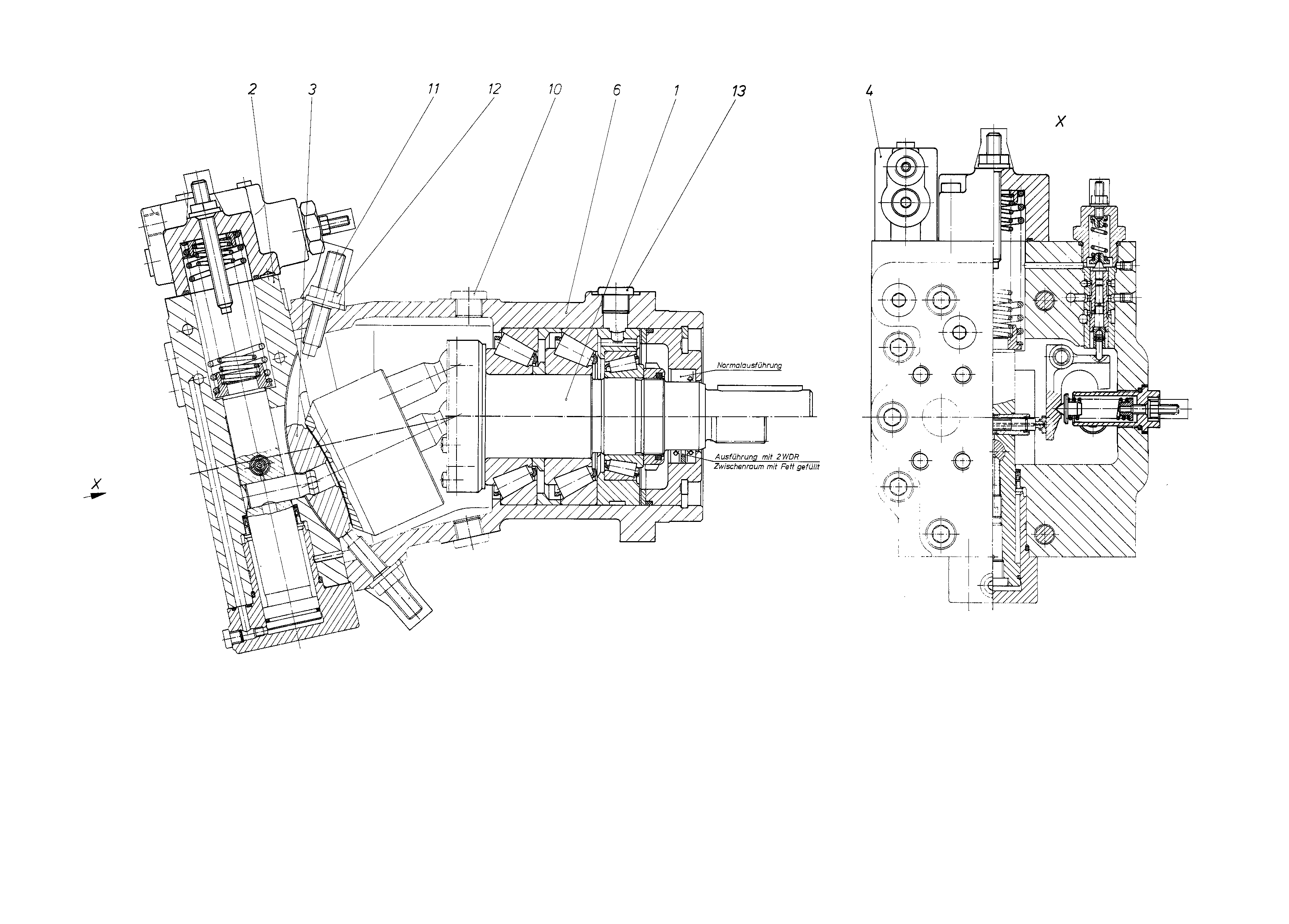

Unit · AXIAL-PISTON PUMP
V-PUMPEA7VTO200LRDS/60R-PPB01*G*R909433677
Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEA7VTO200LRDS/60R-PPB01*G*, material number R909433677.
- Number
- R909433677
- Type code
- V-PUMPEA7VTO200LRDS/60R-PPB01*G*
- Group
- A7VTO 200
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909424541 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909433678 | CONTROL Assembly parts list →L | 1 | ||
| R909650457 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| 4 | R909424996 | SEQUENCE VALVE Assembly parts list →L | 1 | |
| R909425284 | HOUSING | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| 11 | R909153075 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909151694 | SCREW PLUGD | 1 |
