Unit · AXIAL-PISTON PUMP
A8VO80LR/60R1-PZG05N00R909433803

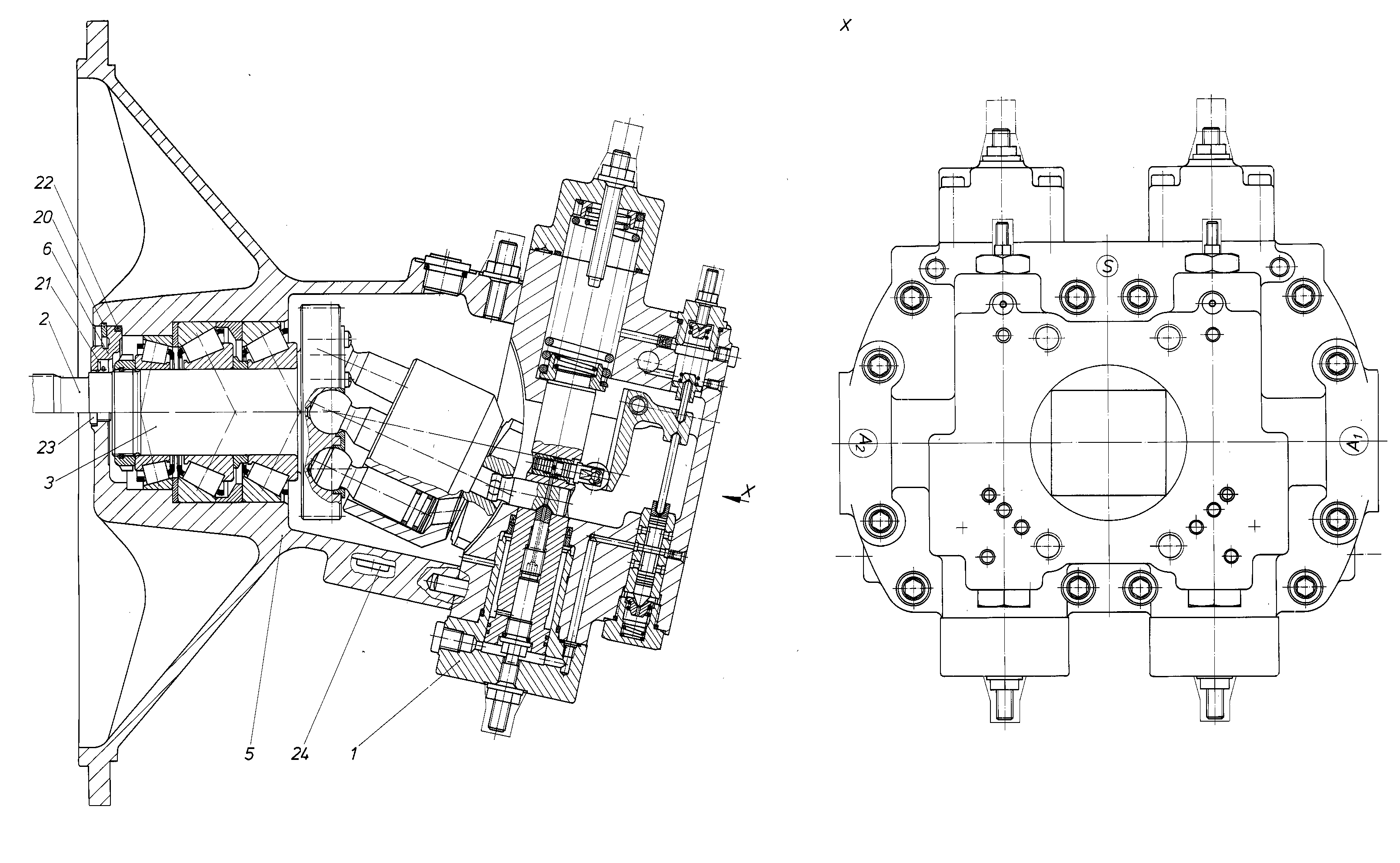

Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LR/60R1-PZG05N00, material number R909433803.
- Number
- R909433803
- Type code
- A8VO80LR/60R1-PZG05N00
- Group
- A8VO 80
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429586 | CONTROL Assembly parts list →L | 1 | ||
| R909411235 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411234 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909432089 | PUMP HOUSING | 1 | ||
| R909410980 | LOCKING RINGD | 1 | ||
| 14 | R909083225 | SCREW PLUG | 1 | |
| 15 | R909083758 | O-RINGD | 1 | |
| 16 | R909152426 | SEALING NUTD | 1 | |
| 17 | R909083500 | SETSCREW | 1 | |
| R909083417 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RINGD | 1 | ||
| R909086948 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 |
