Unit · AXIAL-PISTON PUMP
V-PUMPEA7VO107DFR/60L-433840*G*R909433840

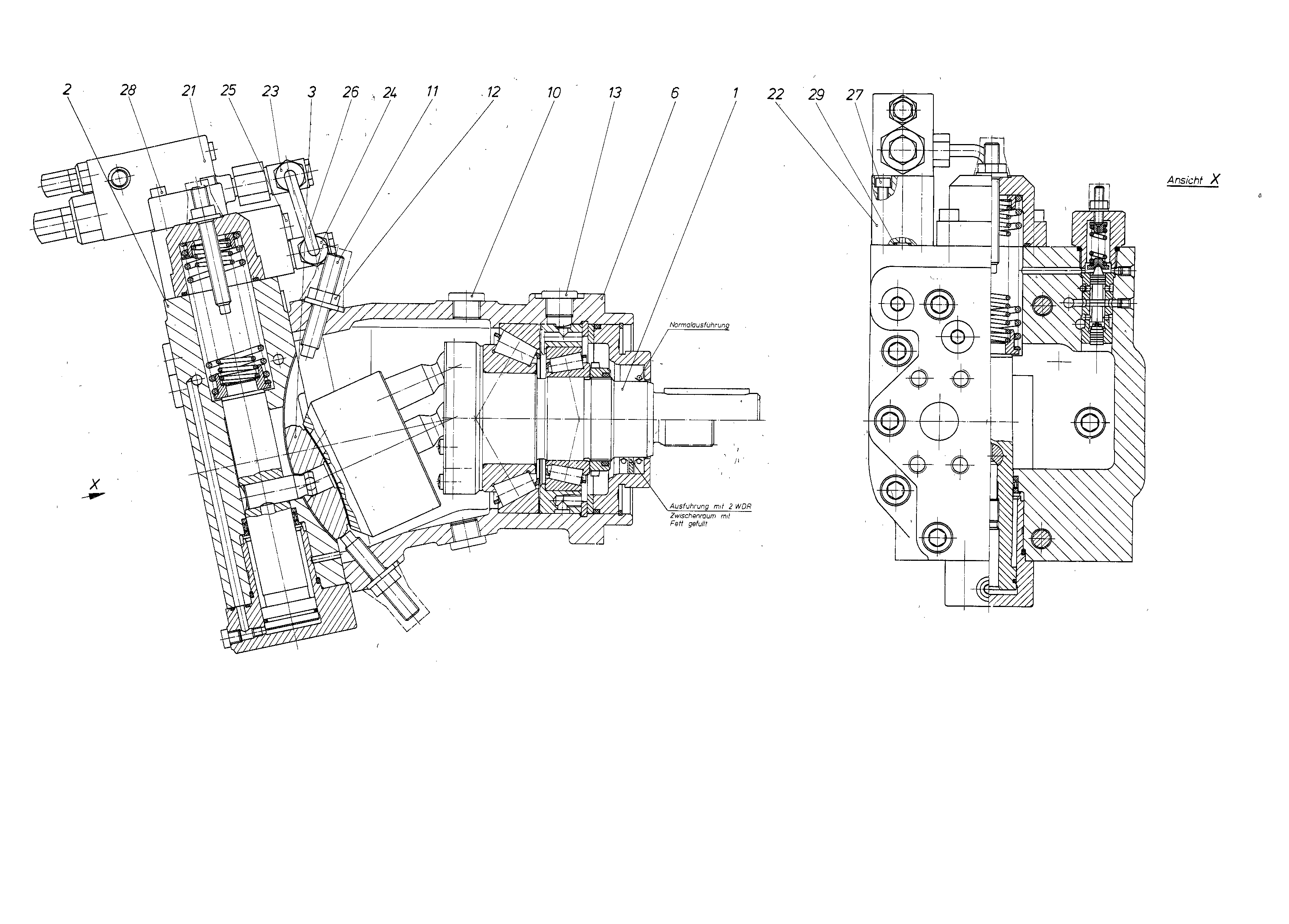

Axial piston pump Bosch Rexroth series A7VO, type code V-PUMPEA7VO107DFR/60L-433840*G*, material number R909433840.
- Number
- R909433840
- Type code
- V-PUMPEA7VO107DFR/60L-433840*G*
- Group
- A7VO 107
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421498 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909416591 | CONTROL Assembly parts list →L | 1 | ||
| R909650454 | CONTROL LENS, LEFT-HAND ROTATION | 1 | ||
| 6 | R909425278 | HOUSING | 1 | |
| R909153815 | SCREW PLUGD | 2 | ||
| 11 | R909085976 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 21 | R909157571 | CONTROL VALVE | 1 | |
| 22 | R909157572 | INTERMEDIATE PLATE | 1 | |
| R909152284 | THREADED FASTENER | 1 | ||
| 24 | R909152359 | THREADED FASTENER | 1 | |
| R909153949 | SCREW PLUGD | 1 | ||
| R909426487 | PIPE | 1 | ||
| 27 | R909083029 | SOCKET HEAD CAP SCREW | 4 | |
| R909083024 | SOCKET HEAD CAP SCREW | 4 | ||
| 29 | R909086498 | O-RINGD | 4 |
