Unit · AXIAL-PISTON MOTOR
AA6VM160HA1/60W-PSD080AR909433851
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM160HA1/60W-PSD080A, material number R909433851. Nominal size: NG 160. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control (HA1). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw short (0-adjustable) (A).
- Number
- R909433851
- Type code
- AA6VM160HA1/60W-PSD080A
- Group
- A6VM 160
- Edition
- 06/2020

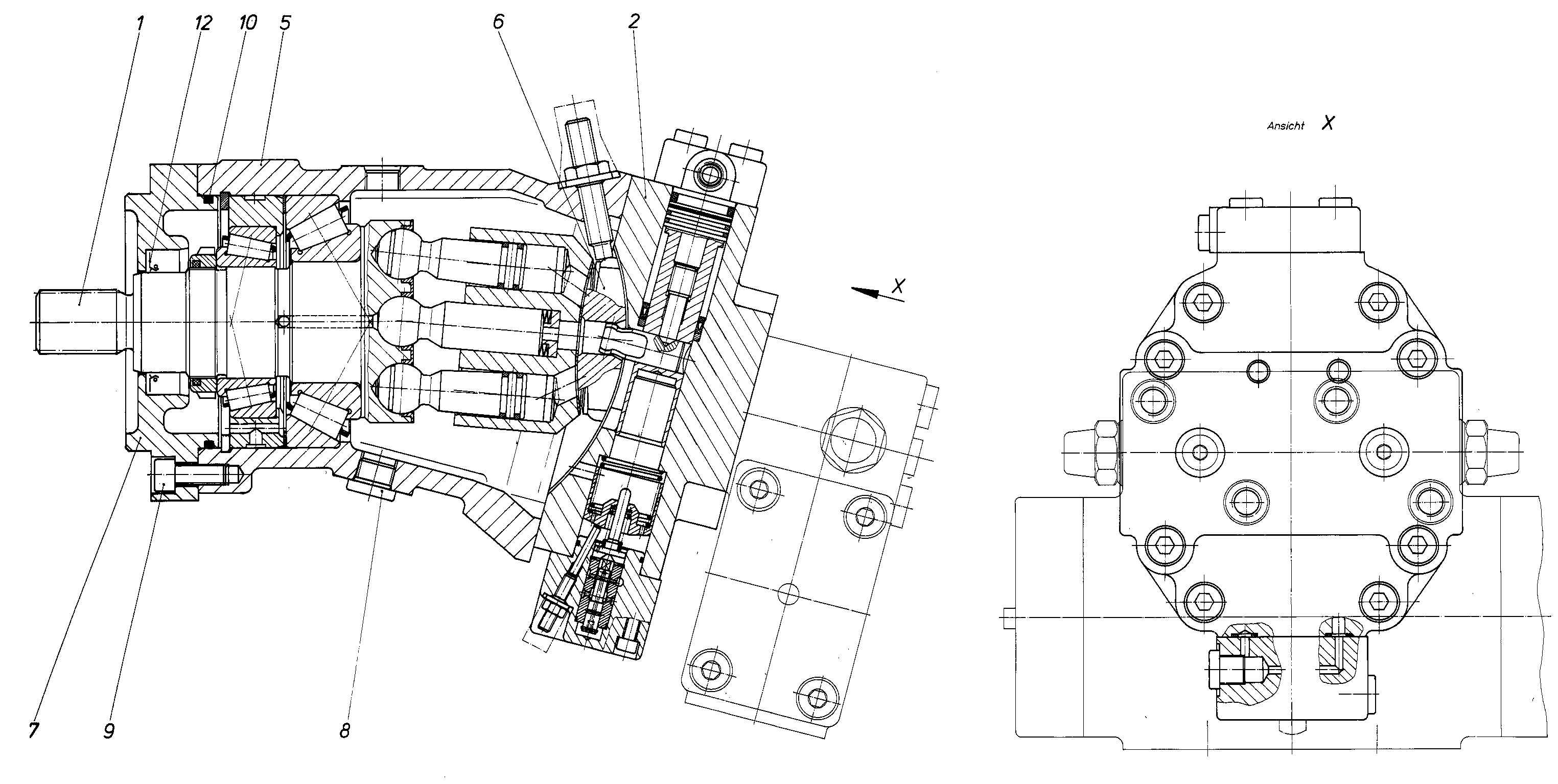

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414757 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909433852 | CONTROL Assembly parts list →L | 1 | ||
| R909416970 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909422226 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083832 | O-RINGD | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control | HA1 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw short (0-adjustable) | A |
