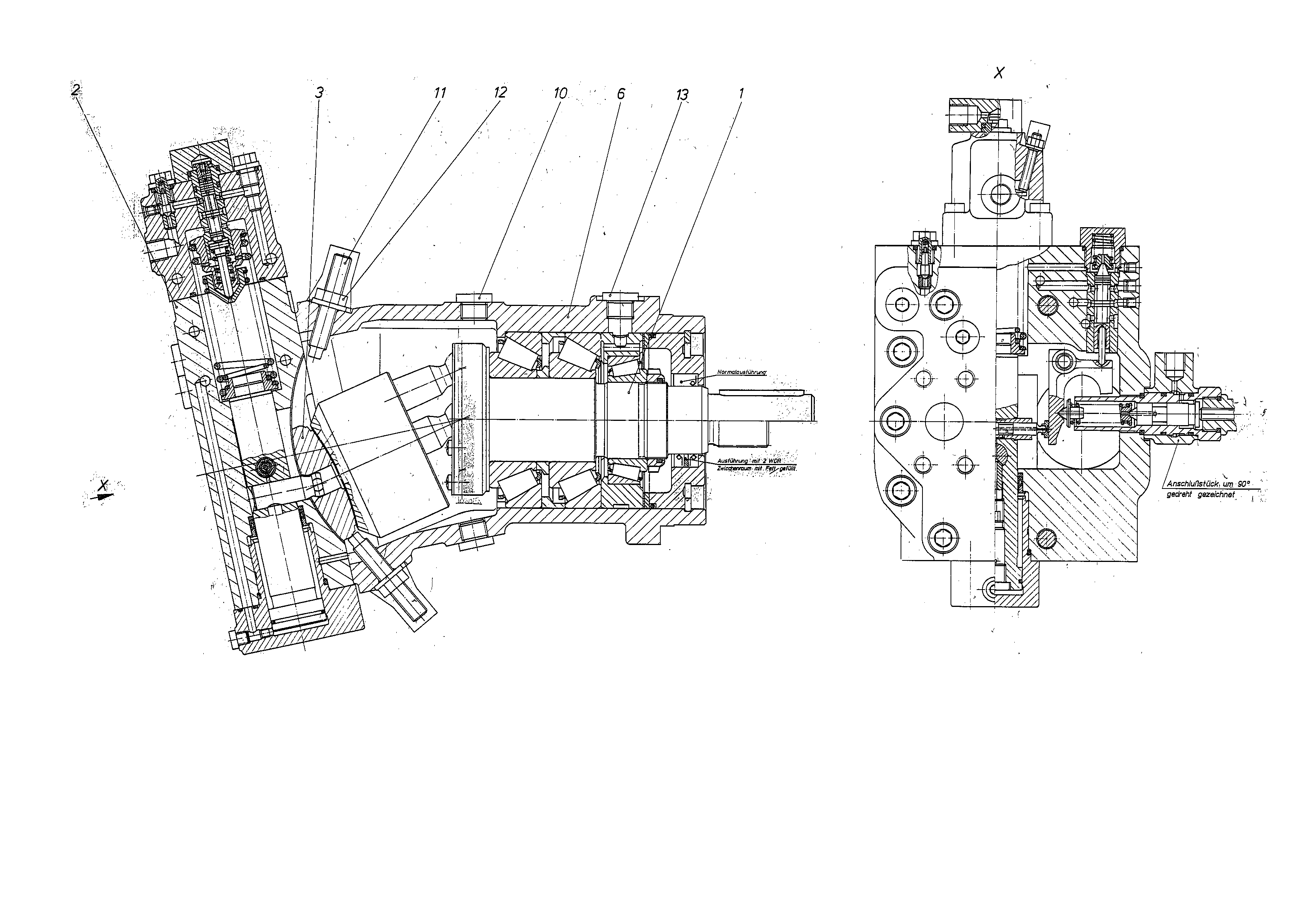

Unit · AXIAL-PISTON PUMP
V-PUMPEA7VTO200LRH/60-433884*G*R909433884
Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEA7VTO200LRH/60-433884*G*, material number R909433884.
- Number
- R909433884
- Type code
- V-PUMPEA7VTO200LRH/60-433884*G*
- Group
- A7VTO 200
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418608 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909433885 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650458 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| R909425284 | HOUSING | 1 | ||
| 10 | R909151694 | SCREW PLUGD | 2 | |
| 11 | R909153075 | SETSCREW | 2 | |
| 12 | R909152459 | SEALING NUTD | 2 | |
| R909151694 | SCREW PLUGD | 1 |
