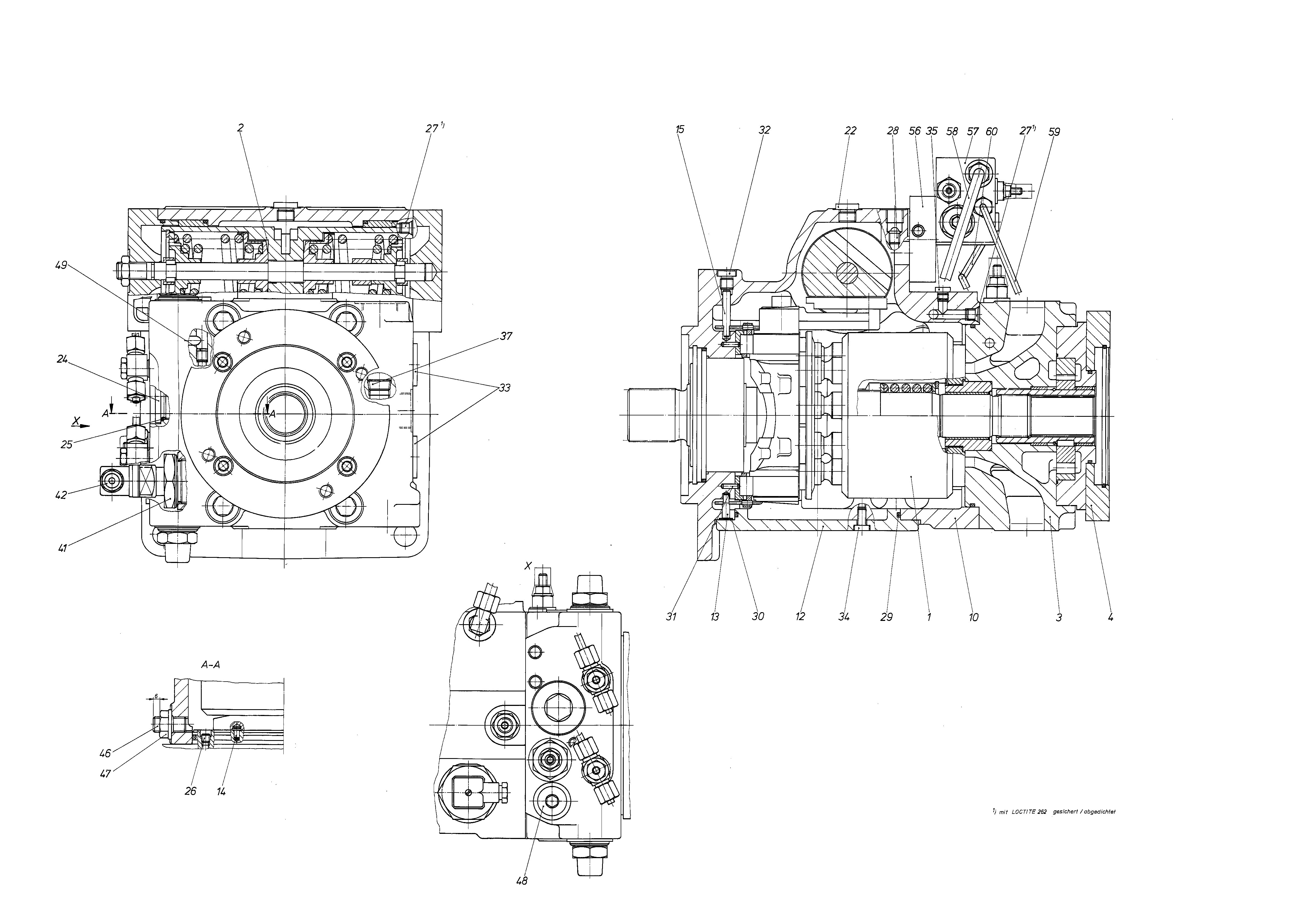

Unit · AXIAL-PISTON PUMP
A4VG180MSD1/31L-PZD02FXX1D-SR909434053
Axial piston pump Bosch Rexroth series A4VG, type code A4VG180MSD1/31L-PZD02FXX1D-S, material number R909434053. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 4-hole (D). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) (D). Standard/special version: special version (-S).
- Number
- R909434053
- Type code
- A4VG180MSD1/31L-PZD02FXX1D-S
- Group
- A4VG 180
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434475 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909437718 | CONTROL Assembly parts list →L | 1 | |
| R909437703 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909434054 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909435244 | HOUSING | 1 | ||
| R909426148 | HOUSING COVER | 1 | ||
| 13 | R909426652 | PIVOT PIN | 1 | |
| R909405732 | POITIONING PIN | 1 | ||
| 15 | R902118898 | PIVOT PIN | 1 | |
| R909153816 | SCREW PLUGD | 1 | ||
| R909083229 | SCREW PLUG | 1 | ||
| 25 | R909085545 | O-RINGD | 1 | |
| R909153572 | SCREW PLUG | 1 | ||
| 27 | R909831320 | DOUBLE BREAK-OFF PLUG | 2 | |
| 28 | R909426704 | NOZZLE | 2 | |
| R909830461 | O-RINGD | 1 | ||
| R909157348 | QUAD RINGD | 1 | ||
| 31 | R913016375 | SLOTTED SPRING PIN | 2 | |
| R909151692 | SCREW PLUGD | 1 | ||
| 33 | R909153861 | SCREW PLUGD | 2 | |
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| 35 | R909153364 | SCREW PLUGD | 1 | |
| R909156570 | SCREW PLUG | 1 | ||
| 41 | R902032211 | THREADED REDUCING STUD Assembly parts list →L | 1 | |
| R902601957 | POLLUTION SWITCH | 1 | ||
| R909157393 | SETSCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909426708 | NOZZLE | 1 | ||
| 56 | R909433096 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 57 | R909433131 | TORQUE-PRESSURE CONTROL VALVE Assembly parts list →L | 1 | |
| 58 | R909434476 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909434477 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 60 | R909434478 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| 98 | R902166892 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 4-hole | D |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Standard/special version | Special version | -S |
