Unit · AXIAL-PISTON MOTOR
AA6VM160HZ/60W-434104*G*R909434104
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM160HZ/60W-434104*G*, material number R909434104. Nominal size: NG 160. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Additional function: without (0). Stroking time damping: one-sided in inlet to large stroking chamber (4). Drive shaft bearing: standard bearing (0). Working port: SAE working port A and B at rear, with lateral measuring ports (4).
- Number
- R909434104
- Type code
- AA6VM160HZ/60W-434104*G*
- Group
- A6VM 160
- Edition
- 06/2020

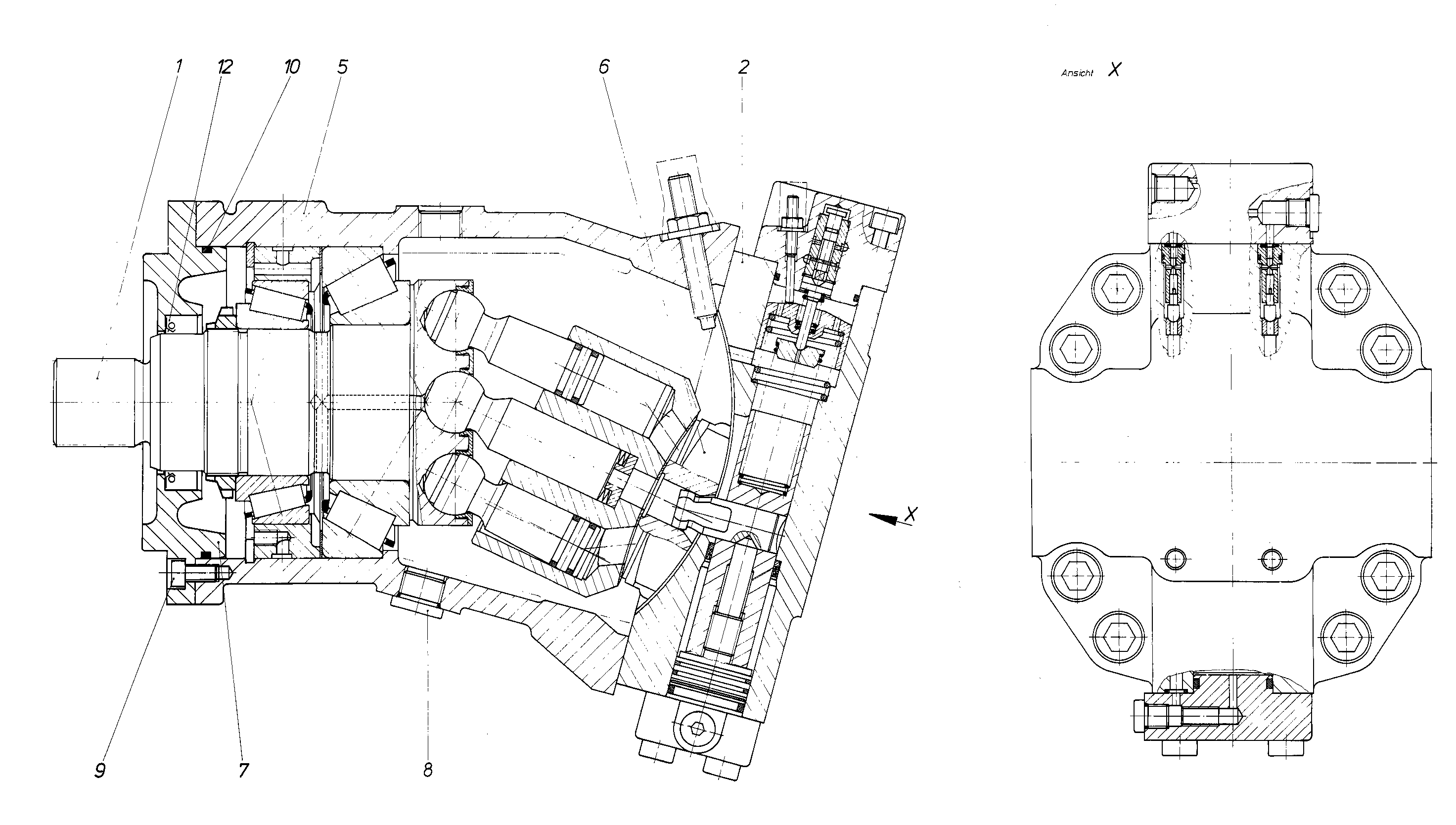

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414757 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434103 | CONTROL Assembly parts list →L | 1 | ||
| R909416970 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909422226 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083832 | O-RINGD | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Additional function | Without | 0 |
| Stroking time damping | One-sided in inlet to large stroking chamber | 4 |
| Setting range for displacement | 341 | 341 |
| Drive shaft bearing | Standard bearing | 0 |
| Working port | SAE working port A and B at rear, with lateral measuring ports | 4 |
