Unit · AXIAL-PISTON PUMP
V-PUMPEA7VTO107LRDH/6-434148*G*R909434148
Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEA7VTO107LRDH/6-434148*G*, material number R909434148.
- Number
- R909434148
- Type code
- V-PUMPEA7VTO107LRDH/6-434148*G*
- Group
- A7VTO 107
- Edition
- 06/2020

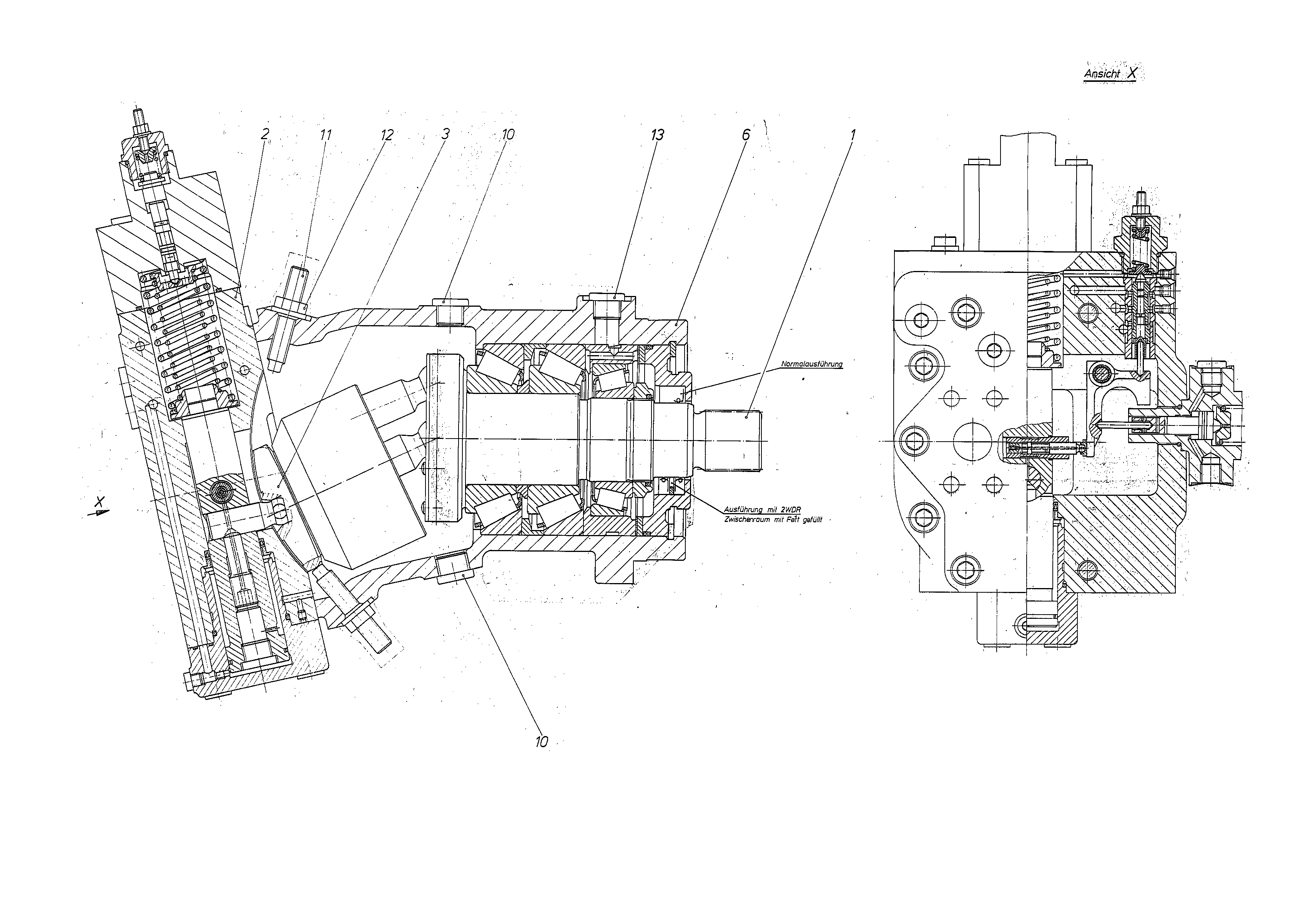

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909411547 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909434142 | CONTROL Assembly parts list →L | 1 | ||
| R909650454 | CONTROL LENS, LEFT-HAND ROTATION | 1 | ||
| 6 | R909425280 | HOUSING | 1 | |
| R909153815 | SCREW PLUGD | 2 | ||
| 11 | R909085976 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909153815 | SCREW PLUGD | 1 |
